[NOTE]
(a) In the case described above, available amount of adjustment of the home
position is 0 to 25mm.
For further adjustment, Loosen set screw(NO.) and move position of the
detector adapter(NO.).
(b) If move the detector adapter(NO.) to the right, the mechanical home
position is shifted to the left.
(c) After adjustment, tighten the set screw(NO.).
7-15-2. Shifting the mechanical home position to the Y direction

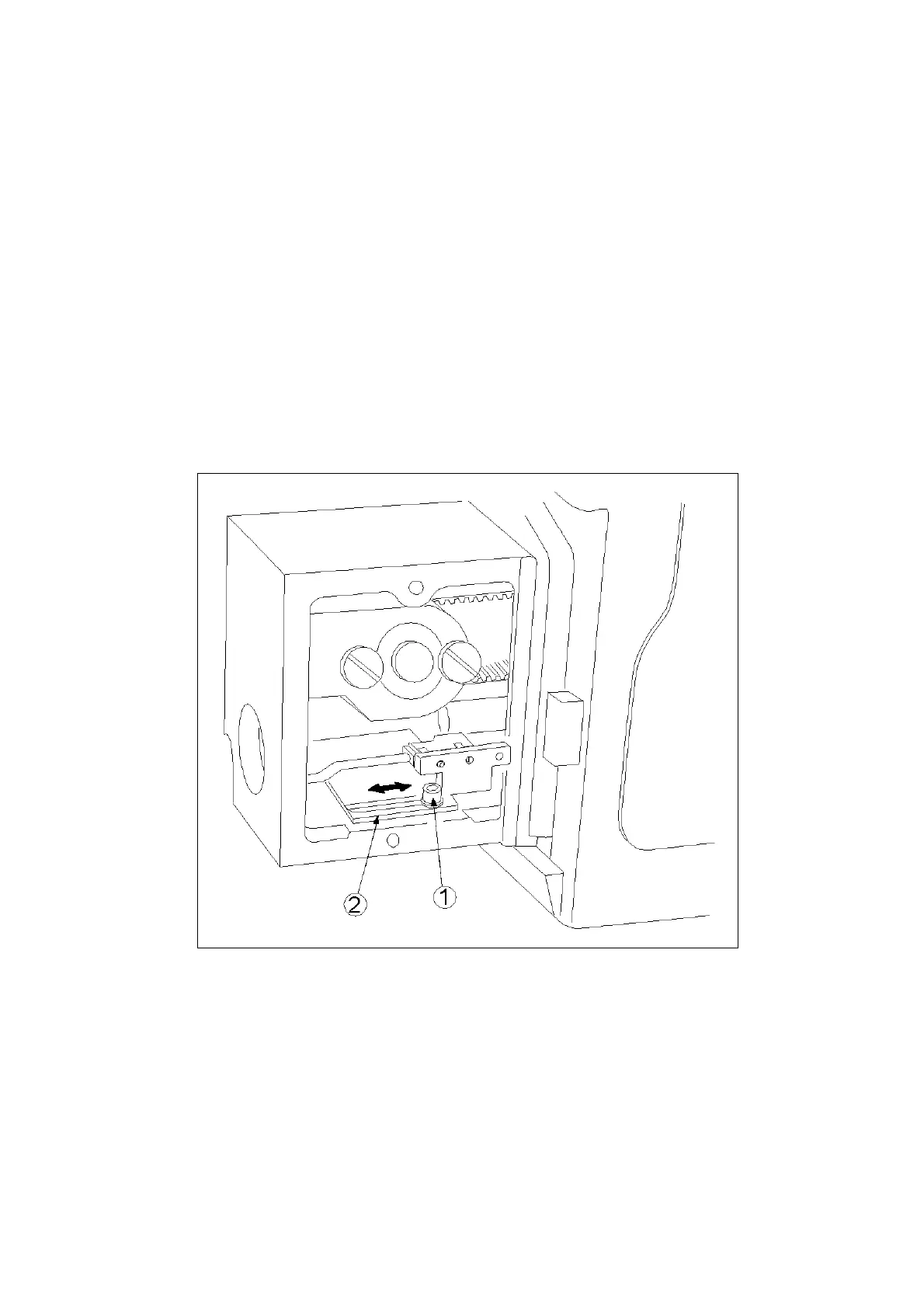

(1) Remove the V-belt cover and cover plate of the machine arm tail.
(2) Loosen screws(NO.) of the Adjuster plate(NO.). If move the Adjuster plate(NO.) to
front , the mechanical home position is shifted to the backward.
(3) After the mechanical home position shifting, tighten the screws(NO.) securely.
7-15-3. Fine adjustment of the mechanical home position in the X, Y direction
[NOTE]
When precise positioning is required, please use [home position
correction ]. Please refer to Data Conversion Mode in the technical
manual [Operation Panel Section]
40
