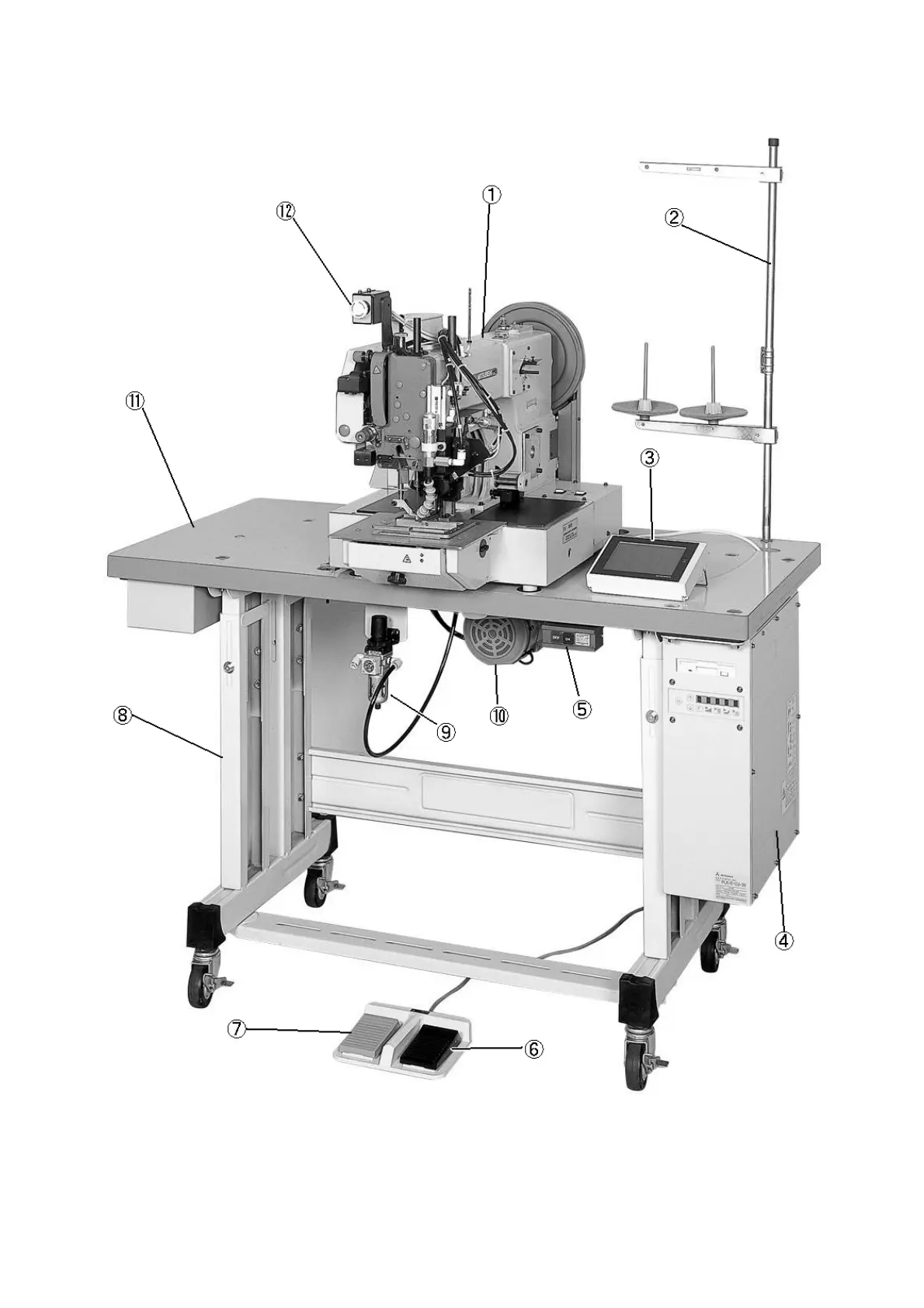

1. STRUCTURE OF THE SEWING MACHINE
PLK-E1008H electronic pattern sewing machine is constructed with the following main parts.
(1)Sewing machine head (2)Thread stand (3)Teaching panel (4)Control Unit
(5)Power switch (6)Work holder foot switch (7)Start foot switch (8)Table
(9)Air regulation gauge (10)Limi-servo motor (11)Wooden table (12)Emergency stop switch
1
