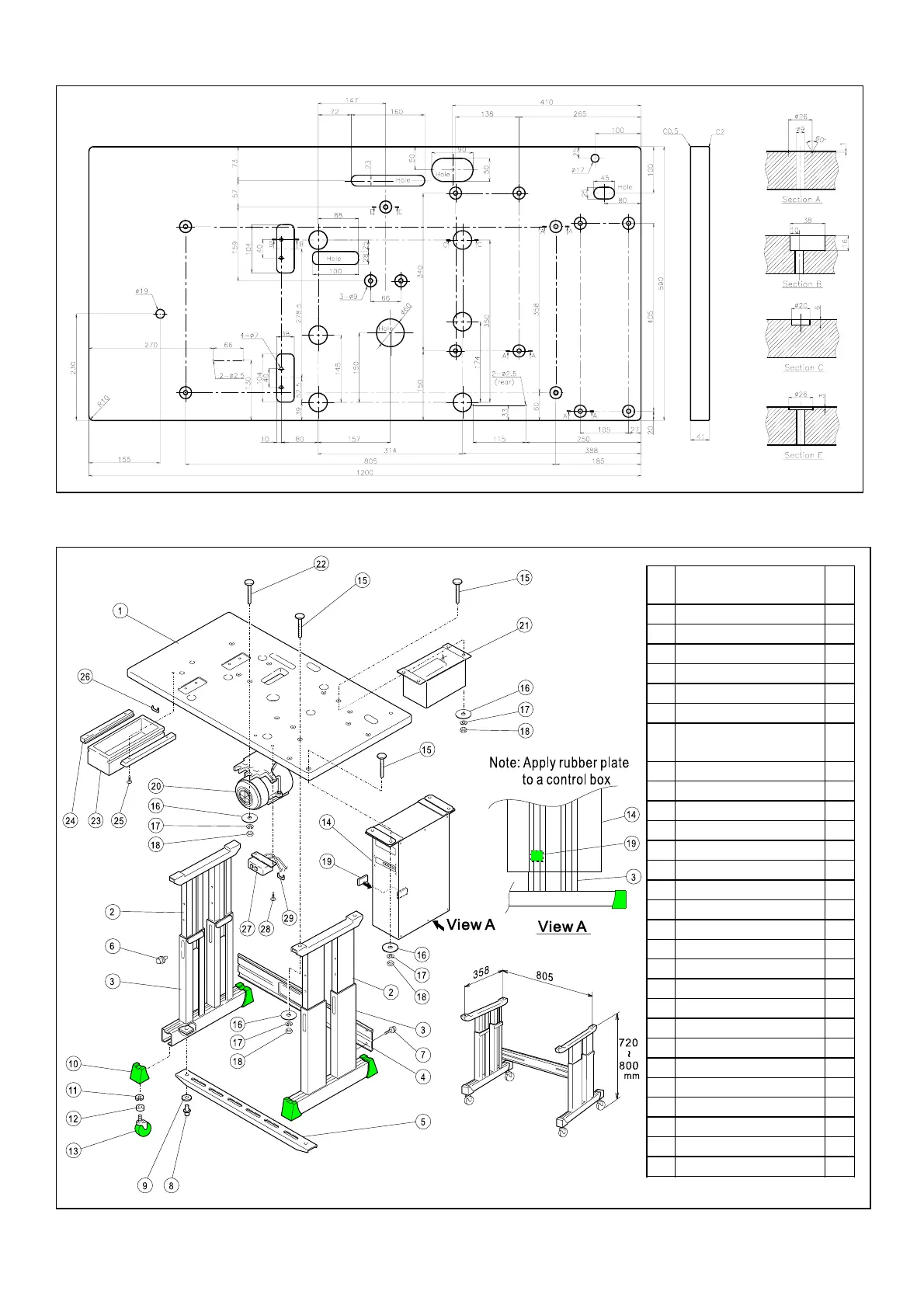

5 PLK-E1008H TABLE ASSEMBLY
5-1 Table cut-out
5-2 Table and stand
Fig
No.
Description
Amt
Req
1 Table top 1
2 Stand (A) 2
3 Stand (B) 2
4 Support frame (A) 1
5 Support frame (B) 1
6 Bolt with SW-PW(L) M8X20 6
7 Bolt with SW-PW(S)
M8X20
4
8 Bolt with SW-PW(M) M8X20 2
9 Wide-rimmed washer (L) 8 2
10 Top cap 4
11 Washer M12 4
12 Spacer 4
13 Caster 4
14 Control box 1
15 Mounting bolt M8X60 12
16 Wide-rimmed washer (L) 8 15
17 Wide-rimmed washer 8 15
18 Nut M8 15
19 Rubber plate 1
20 Motor 1
21 Power box 1
22 Mounting bolt M8X70 3
23 Drawer 1
24 Rail 2
25 Wood screw 4.5X38 4
26 Staple (L) 1
27 Switch assembly 1
28 Wood screw 4.1X16 2
