２ Robot arm
Options
2-34
(6) Hand curl tube
■ Order type: One set :1E-ST0402C
Two sets :1E-ST0404C
Three sets :1E-ST0406C
Four sets :1E-ST0408C
■ Outline
The hand curl tube is a curl tube for the pneumatic hand.
■Configuration
Table 2-22 ： Configuration equipment
■ Specifications
This option can be installed on clean-type, but its cleanliness is not under warranty.
Table 2-23 ： Specifications

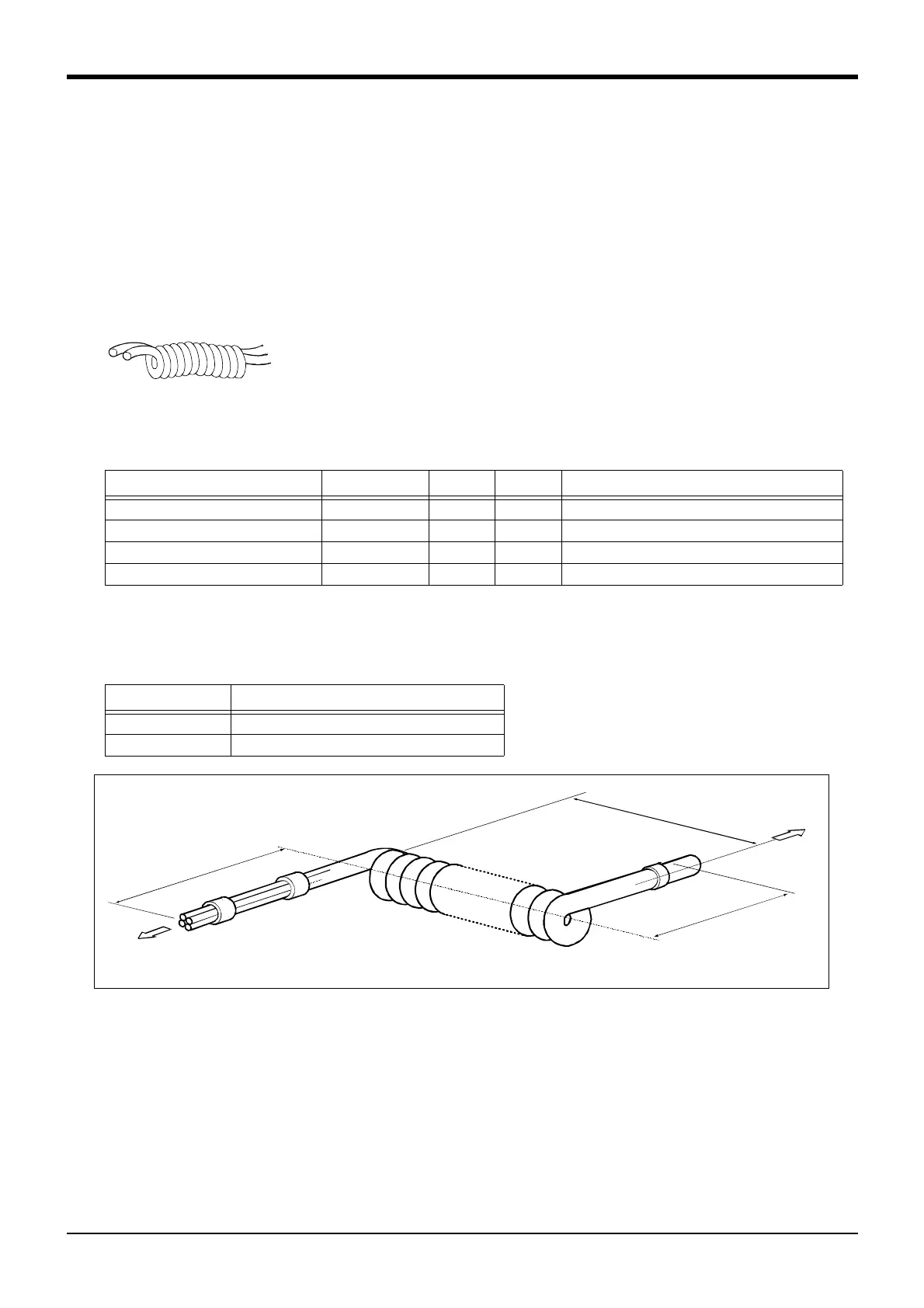

Fig.2-14 ： Outline dimensional drawing
[Caution] This option can be installed on clean-type, but its cleanliness is not under warranty.
Part name Type Qty. Mass(kg) Remarks
Hans curl tube (One set: 2 pcs.) 1E-ST0402C 1 pc. 0.1 Φ4 tube, 2pcs.
Hans curl tube (Two set: 4 pcs.) 1E-ST0404C 1 pc. 0.1 Φ4 tube, 4pcs.
Hans curl tube (Three set: 6 pcs.) 1E-ST0406C 1 pc 0.1 Φ4 tube, 6pcs.
Hans curl tube (Four set: 8 pcs.) 1E-ST0408C 1 pc. 0.1 Φ4 tube, 8pcs.
Item Specifications
Material Urethane
Size Outside diameter: φ4 x Inside diameter: φ2.5
6
0
0
(Tooling side)
2
5
0
3
0
0
(Robot side)
