3-55 Pneumatic hand interface
3 Controller
■ Installation method
This is mounted on the control unit (RZ386 card) in the controller.
Securely insert the pneumatic hand interface (2A-RZ365) into the CNHNDOUT/CNHND connector on the control
unit.
Refer to separate "Instruction Manual/ Controller setup, basic operation, and maintenance" for details on
the installing method.

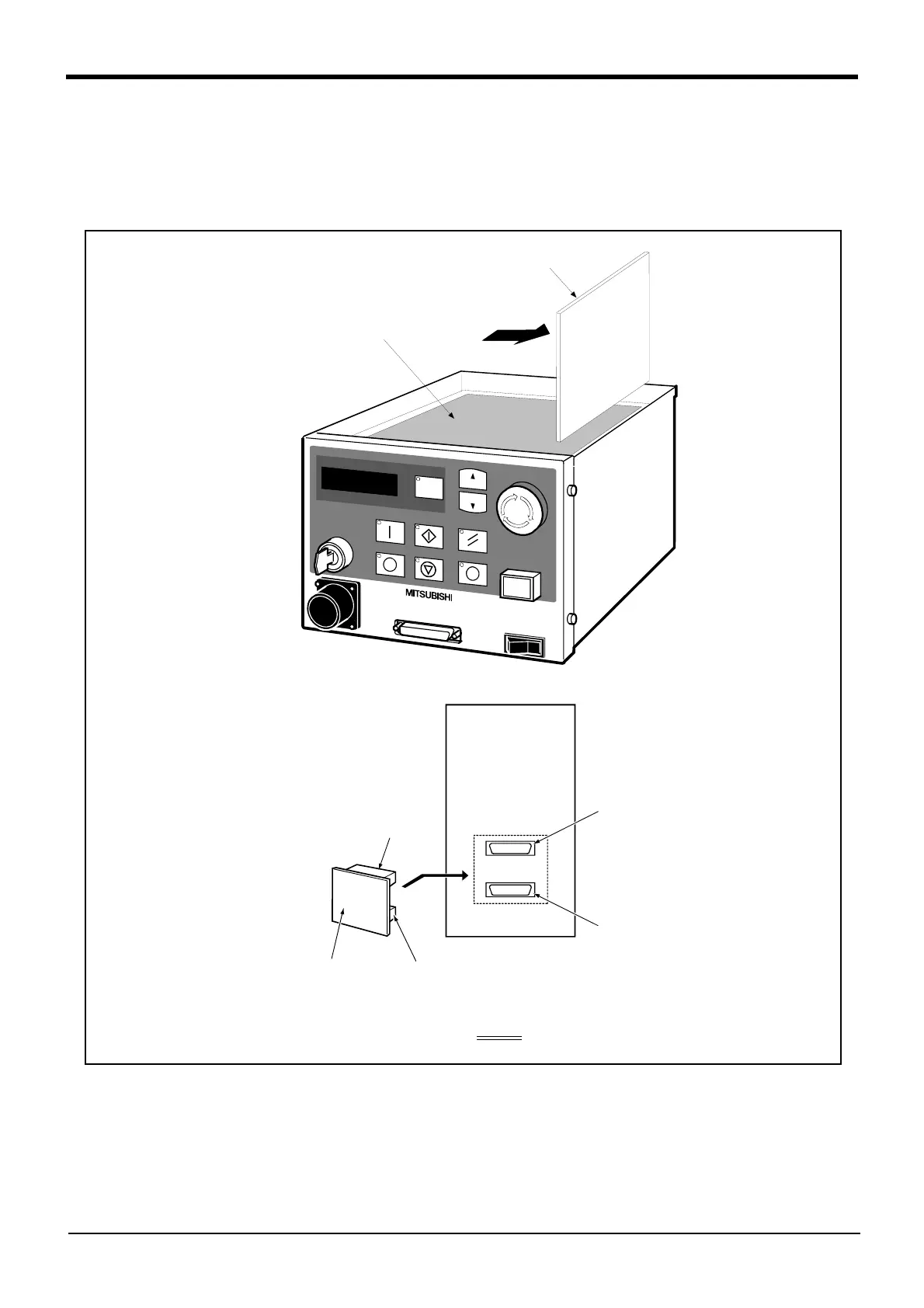

Fig.3-11 ： Installation of pneumatic hand interface
＜RZ386＞
CNHNDOUT
CNHNDOUT
CNHND
CNHND
2A-RZ365
View A
A
Control unit
RZ386 card
