102 / 195
Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
CYLINDER HEAD AND VALVE
MECHANISM
ASSEMBLY
102 / 195
22.10 Rocker shaft assembly
installation
1. Install the valve caps in position on the top of the
valves.
2. Put the rocker shaft assembly in position on the
cylinder head. Tighten the bolts that hold the
rocker shaft assembly to the specified torque.
3.
22.11 Valve clearance adjustment
Make reference to “VALVE CLEARANCE” (page 159).
22.12 Rocker cover installation
1. Make sure the gasket is put on the rocker cover.
2. Tighten the bolts that hold the rocker cover to the
specified torque.
3.

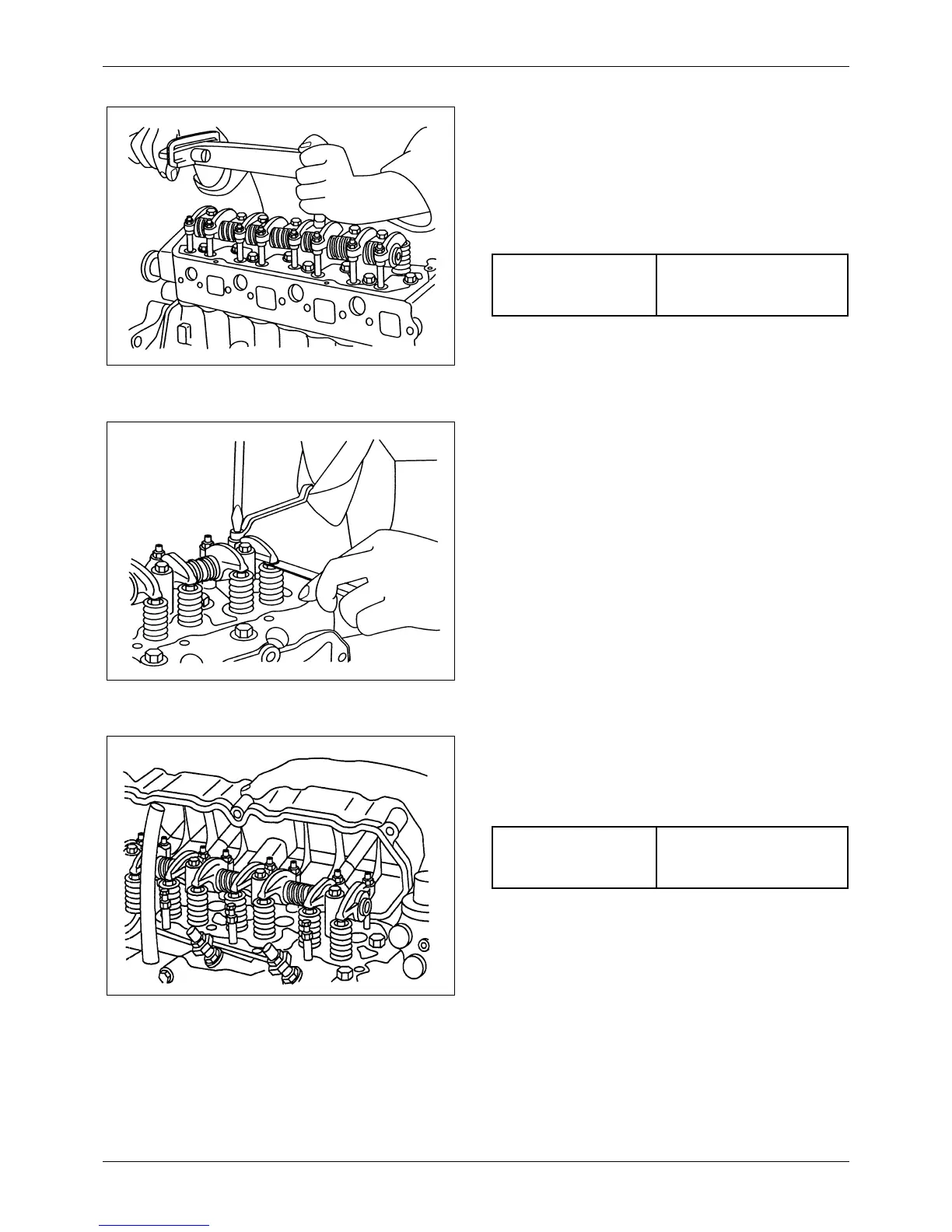

Figure 164 Installing rocker shaft assembly
Tightening torque
1.5 ± 0.5 kgf·m
(11 ± 4 lbf·ft)
[14.7 ± 5 N·m]
Figure 165 Adjusting valve clearance
Figure 166 Installing rocker cover
Tightening torque
1.15 ± 0.15 kgf·m
(8.3 ± 1.1 lbf·ft)
[11.3 ± 1.5 N·m]
