Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH

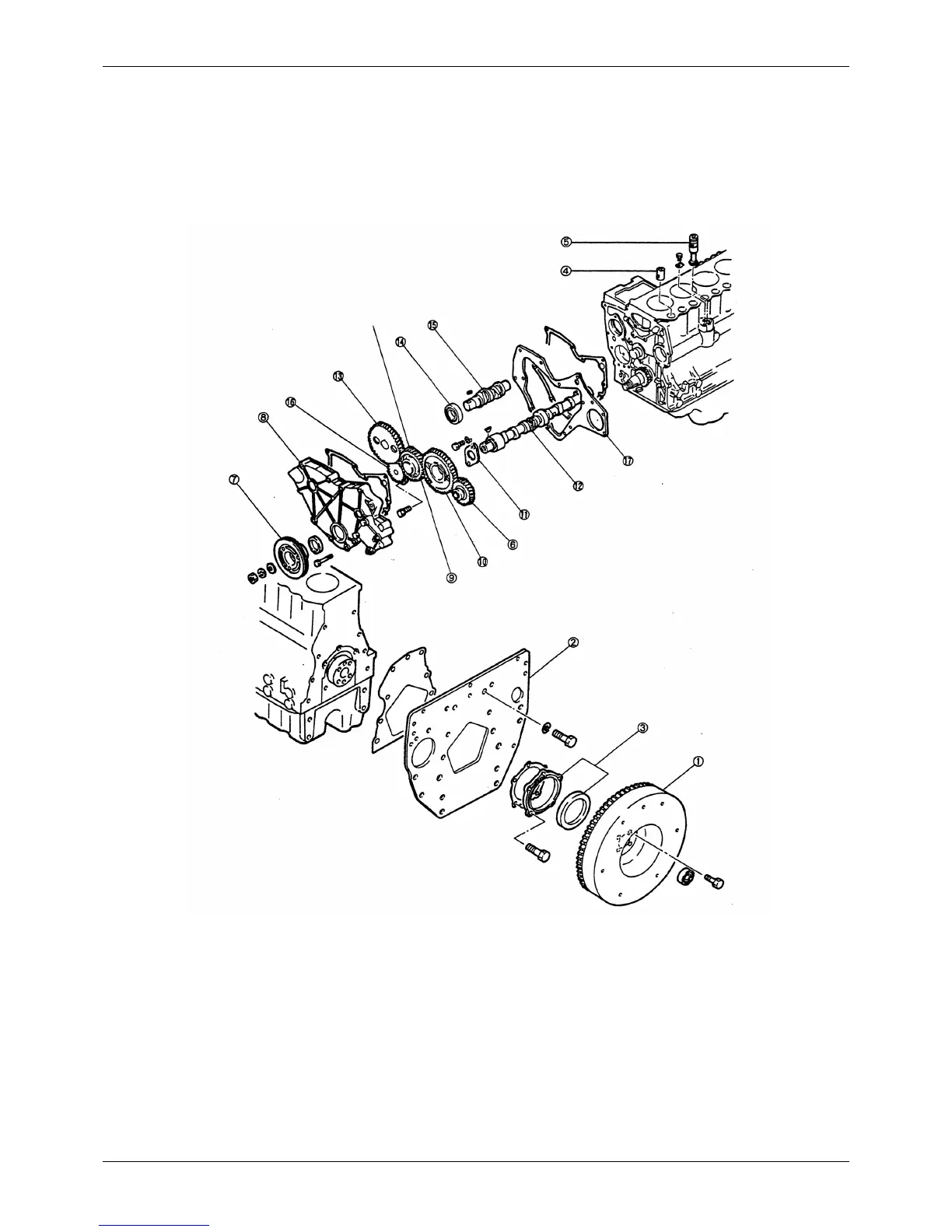

Timing Gears and Flywheel DISASSEMBLY
46 / 195
DISASSEMBLY
15 Timing Gears and
Flywheel
1. Flywheel
2. Rear plate
3. Oil seal case; oil seal
4. Tappet
5. Speedometer driven gear
6. P.T.O. gear
7. Crankshaft pulley
8. Timing gear case
9. Idler gear
(Remove 10 thru 12 as an
assembly.)
10. Camshaft gear
11. Thrust plate
12. Camshaft
(Remove 3 thru 5 as an assembly.)
13. Fuel injection pump camshaft
gear
14. Bearing
15. Fuel injection pump camshaft
16. Oil pump
17. Front plate

Mitsubishi S4L2 Specifications

General

Compression Ratio	22:1
Aspiration	Naturally Aspirated
Fuel System	Direct injection
Engine Model	S4L2
Starting System	Electric Starter
Cooling System	Water-cooled
Engine Type	4-stroke, water-cooled, diesel engine
Lubrication System	Forced lubrication
