Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
Fuel System
ENGLISH
DISASSEMBLY
DISASSEMBLY
11 Fuel System
t
11.1 Fuel injection pipe removal
Disconnect the fuel injection pipes and fuel leak-off
pipe from the fuel injection pump and nozzles.
t
11.2 Fuel injection nozzle removal
Loosen the fuel injection nozzles with a wrench.
Remove the nozzles and gaskets from the cylinder
head.
t
11.3 Governor assembly removal
1. Remove the tie rod cover.
2. Remove the spring from the tie rod with a pliers to
disconnect the tie rod from the fuel injection pump.
3. Remove the governor assembly.

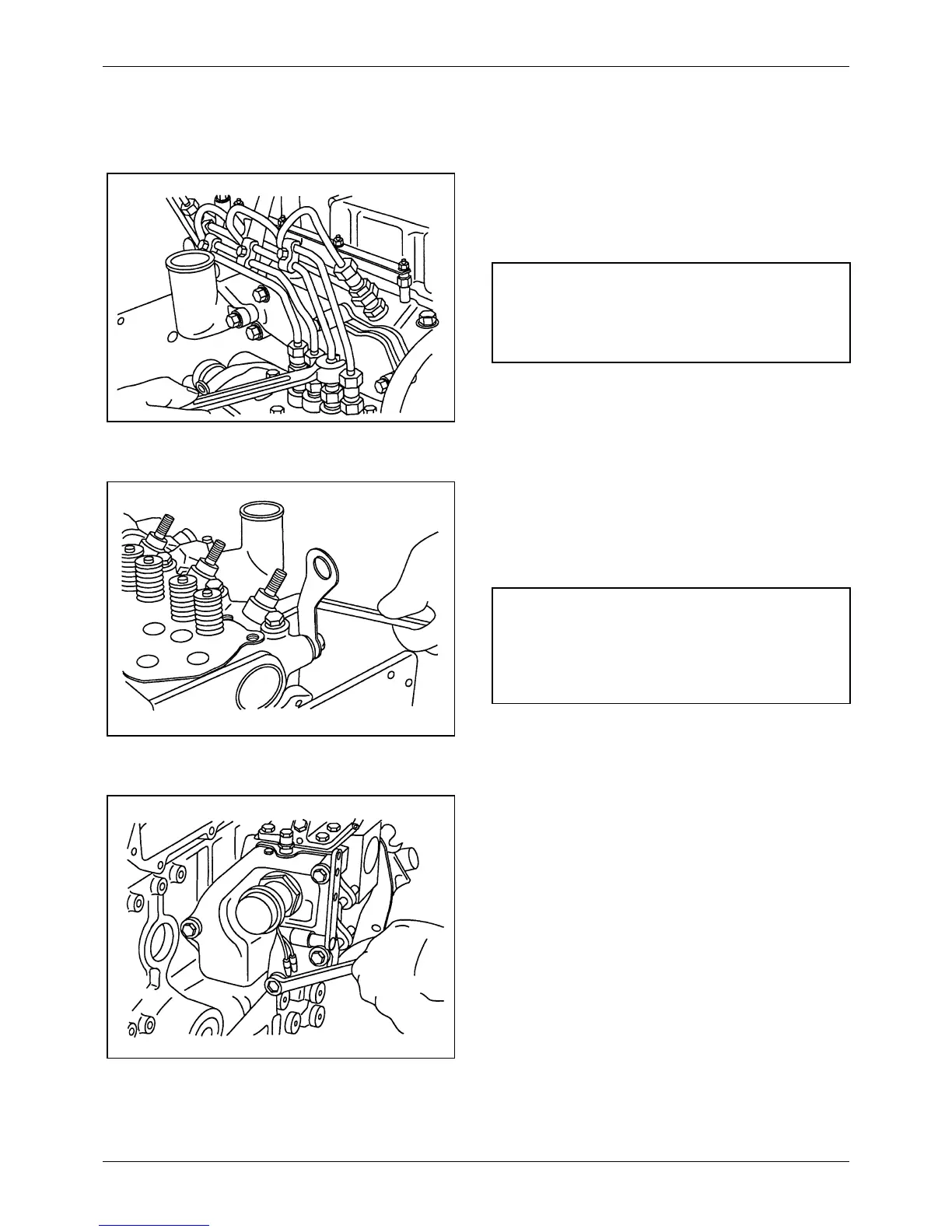

Figure 20 Removing fuel injection pipes
NOTE
Put plugs or caps on the openings of the injection
pump and nozzle connectors.
Figure 21 Removing fuel injection nozzles
NOTE
Remove the gaskets from the cylinder head with a
screwdriver or a similar tool. Discard defective
gaskets.
Figure 22 Removing governor assembly
