Timing Gears and Flywheel DISASSEMBLY
50 / 195
t
15.9 Idler gear removal
To remove the idler gear, rotate the gear in a direction
of the helix of the teeth to pull it out of mesh.
t
15.10 Camshaft removal
1. Remove the bolts that hold the thrust plate.
2. Pull the camshaft out of the cylinder block.
t
15.11 Fuel injection pump camshaft
removal
1. Remove the stopper bolt.

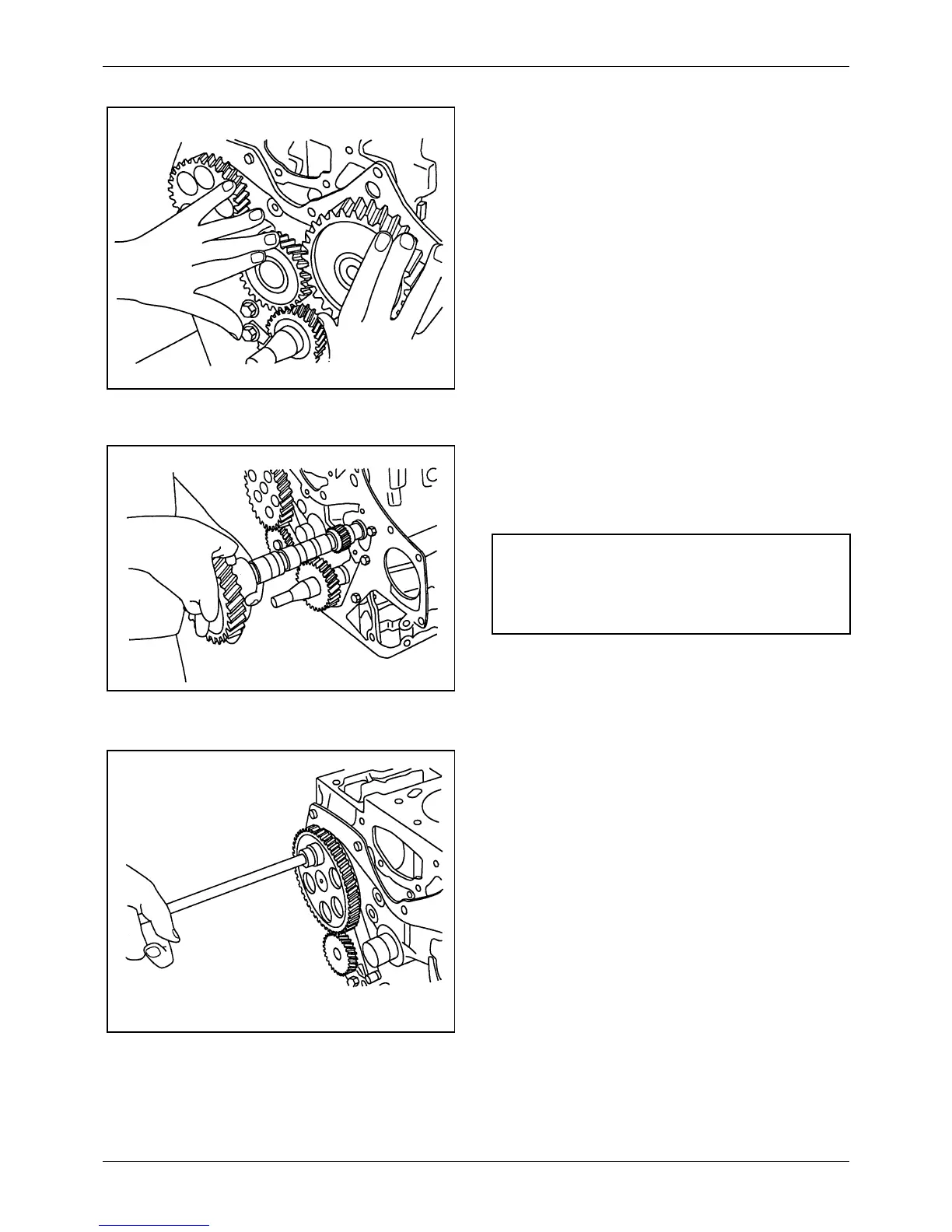

Figure 46 Removing idler gear
Figure 47 Removing camshaft
îîCAUTION
Do not cause damage to the lobes or bearing journals
when removing the camshaft.
Figure 48 Removing camshaft stopper bolt
