Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
CYLINDER HEAD AND VALVE
MECHANISM
ASSEMBLY
98 / 195
ASSEMBLY
22 CYLINDER HEAD AND
VALVE MECHANISM

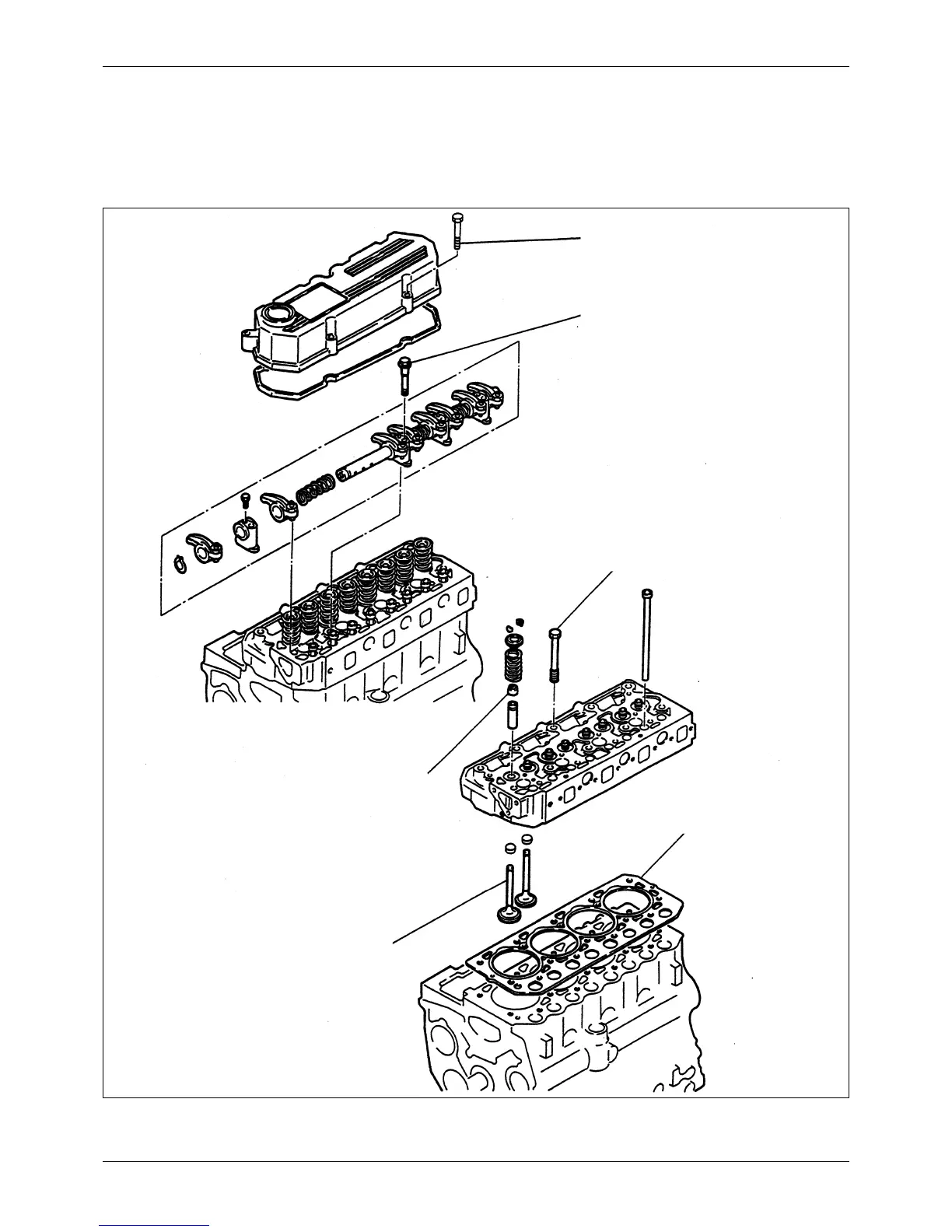

Figure 154 Inspection points
Tightening torque:
1.15 ± 0.15 kgf m (8.3 ± 1.1 lbf ft)
[11.3 ± 1.5 N m]
Tightening torque:
1.5 ± 0.5 kgf m (11 ± 4 lbf ft) [14.7
± 5 N m]
Tightening torque:
9 ± 0.5 kgf m (65 ± 4 lbf ft)
[88 ± 5 N m]
Use a new part
Lubricate stem with engine oil
Use a new gasket

Mitsubishi S4L2 Specifications

General

Compression Ratio	22:1
Aspiration	Naturally Aspirated
Fuel System	Direct injection
Engine Model	S4L2
Starting System	Electric Starter
Cooling System	Water-cooled
Engine Type	4-stroke, water-cooled, diesel engine
Lubrication System	Forced lubrication
