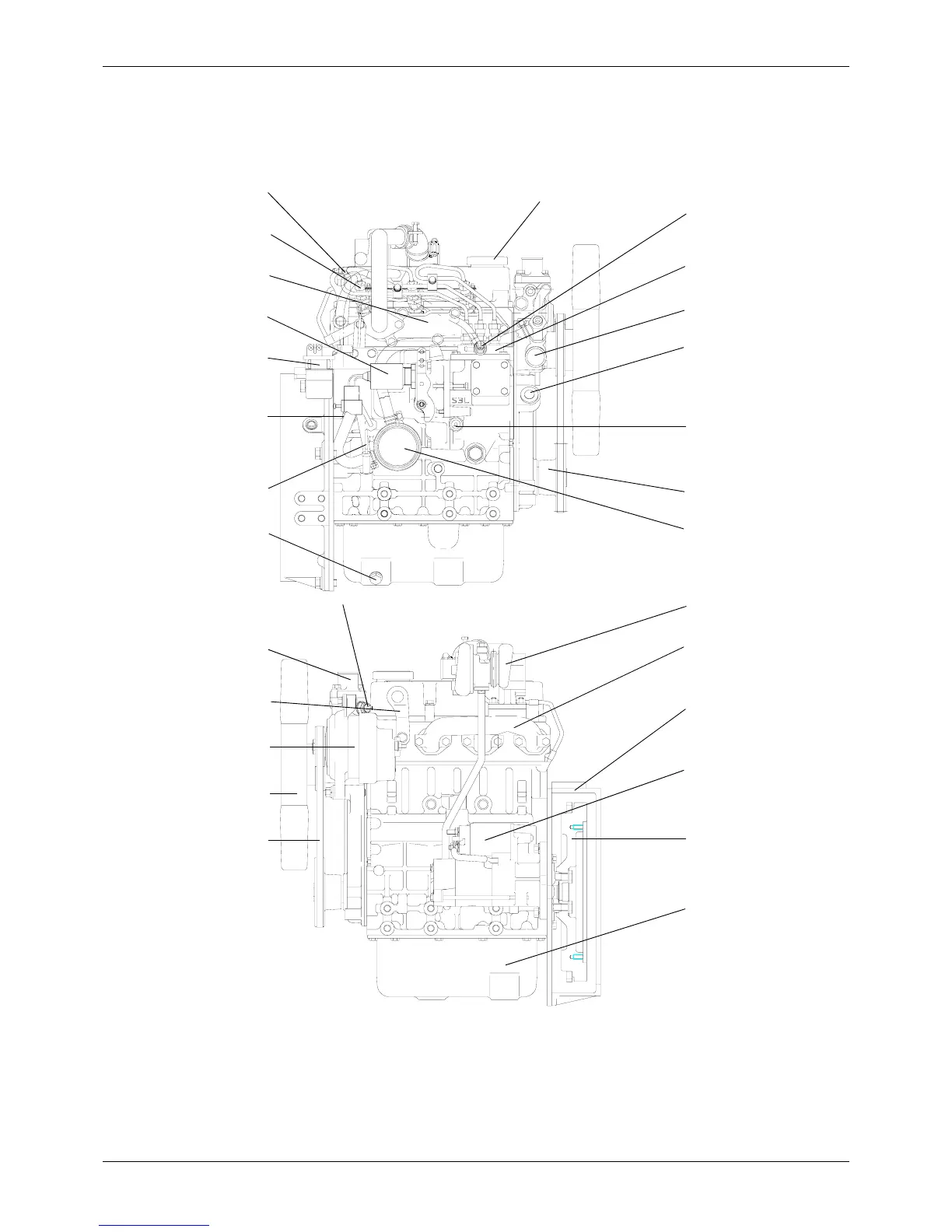

2.2 Engine S3L-T/S3L2-T
RIGHT SIDE VIEW
Oil filler
Fuel injection nozzle
Fuel injection pump
Water pump
Oil filler
Crankshaft pulley
Oil filter
FRONT
Dipstick
Coolant drain plug
Air inlet cover
REAR
LEFT SIDE VIEW
Thermostat
Hanger
Alternator
Fan
V-belt
Exhaust manifold
Starter
Oil pan
REARFRONT
Oil drain plug
Hanger
Stop solenoid
Fuel filter
Air vent screw
Oil pressure switch
Thermoswitch
Turbocharger
Flywheel housing
Flywheel
