Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
STARTER
ENGLISH
ELECTRICAL SYSTEM

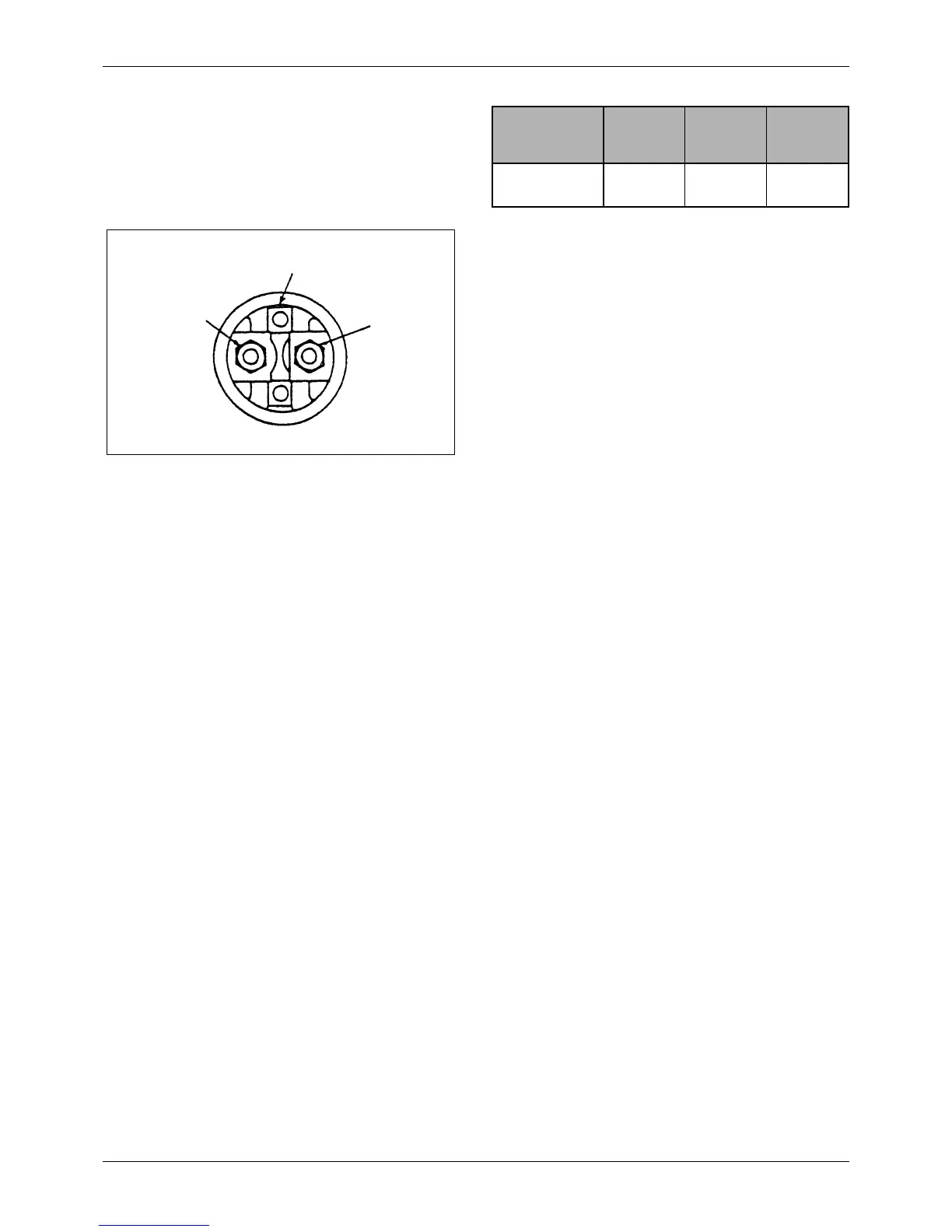

29.4.3 Solenoid Switch
Perform the following continuity tests. If the solenoid
switch fails either tests, replace it.
1) Test for Coil Open Circuit
Continuity should exists between the S- and
M-terminals and between the S-terminal and
ground (case).
2) Test for Fused Contacts
Continuity should not exist between the B-
and M-terminals.
Voltage
(V)
Current
(A)
Speed
(min
-1
)
No-Load
characteristics
11 130
maximum
3,600
minimum
M-terminal
S-terminal
B-terminal

Mitsubishi S4L2 Specifications

General

Compression Ratio	22:1
Aspiration	Naturally Aspirated
Fuel System	Direct injection
Engine Model	S4L2
Starting System	Electric Starter
Cooling System	Water-cooled
Engine Type	4-stroke, water-cooled, diesel engine
Lubrication System	Forced lubrication
