Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
ALTERNATOR ELECTRICAL SYSTEM
126 / 195
2. Test for no continuity between each lead and stator
core as shown in the illustration. Any continuity
shows there is a grounded circuit in the stator core.
Replace the stator core.
30.2.4 Brushes
1. Make replacement of brushes that have been worn
down to, or beyond, the wear limit line.
2. To remove the brushes from the brush holder for
replacement, unsolder the leads from the brushes.
This will permit removal of the brushes and
springs.

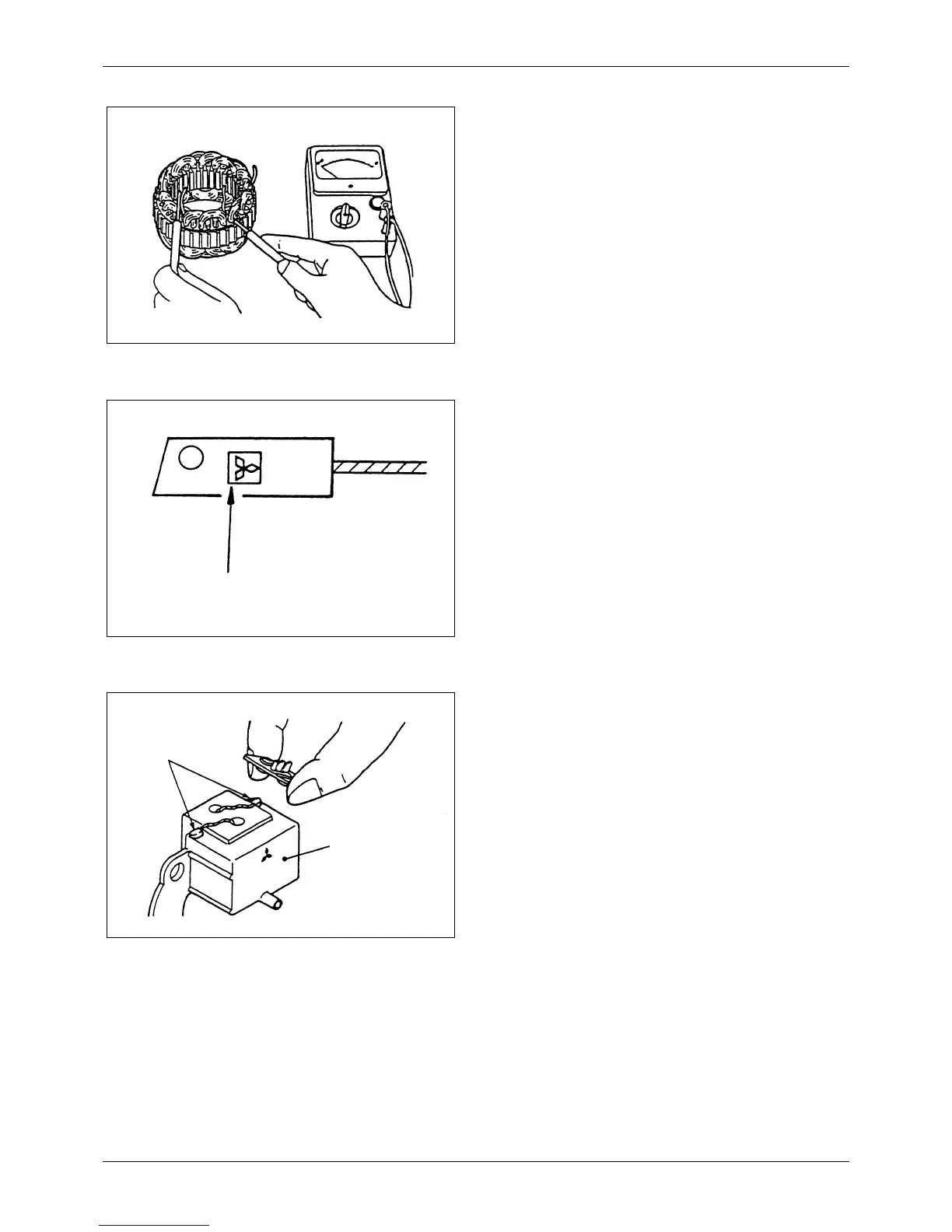

Figure 192 Testing stator core for grounded circuit
Figure 193 Checking brush for wear
Wear limit line
Figure 194 Removing brushes for replacement
Brush holder
Unsolder

Mitsubishi S4L2 Specifications

General

Compression Ratio	22:1
Aspiration	Naturally Aspirated
Fuel System	Direct injection
Engine Model	S4L2
Starting System	Electric Starter
Cooling System	Water-cooled
Engine Type	4-stroke, water-cooled, diesel engine
Lubrication System	Forced lubrication
