Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
VALVE CLEARANCE MAINTENANCE
176 / 195
5. After the valve clearance on the valves for No. 1
cylinder has been adjusted, turn the crankshaft
180° in the direction of engine rotation and adjust
the valve clearance on the valves for the
remainder of the cylinders in firing order (injection
sequence)

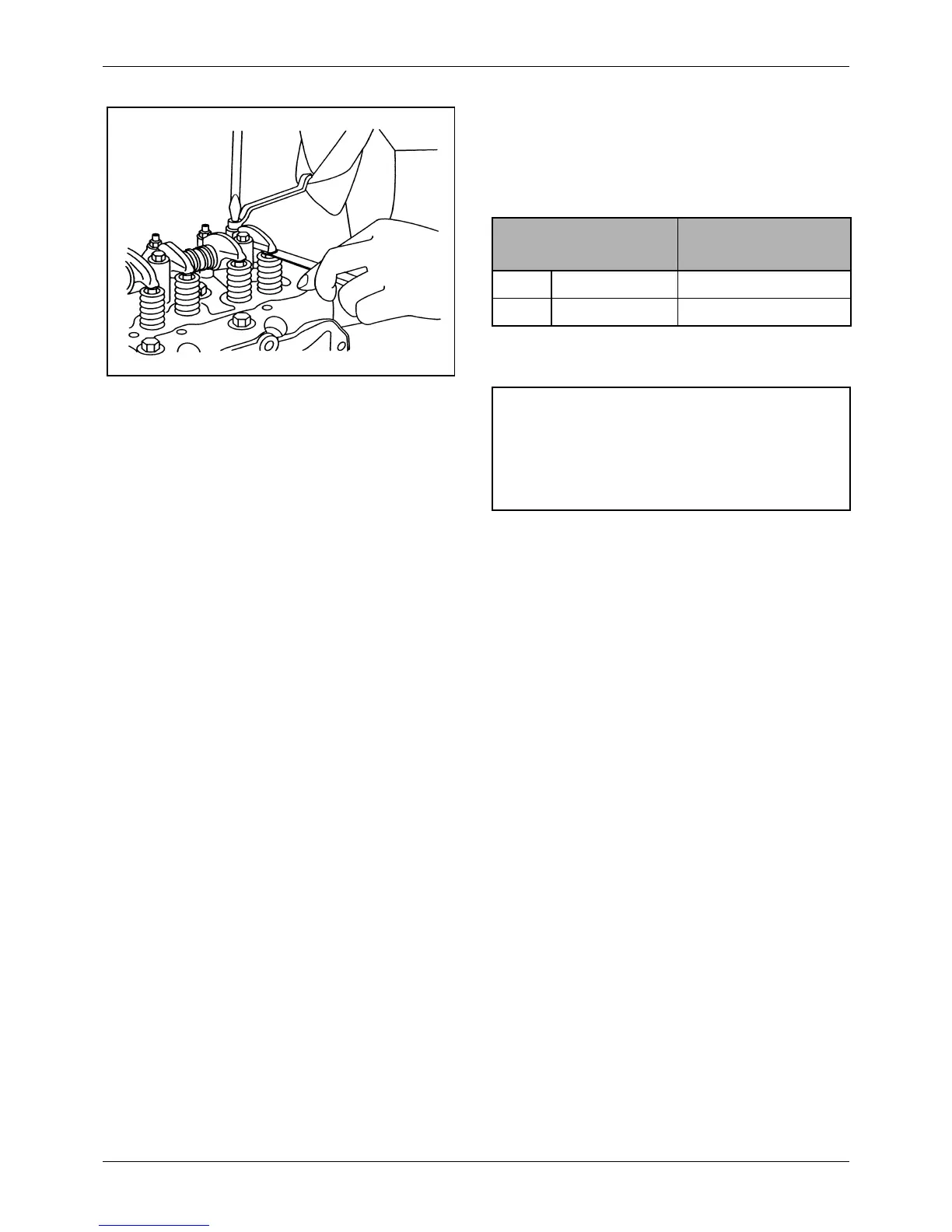

Figure 255 Adjusting valve clearance
Firing order (injection
sequence)
Crankshaft rotation
angle
S3L(2) 1 – 3 – 2 240°
S4L(2) 1 – 3 – 4 – 2 180°
Table 9 Firing order
CAUTION
After the valve clearance on the valves for all
cylinders has been adjusted, turn the crankshaft two
or three times and make sure the valve clearance is
correct.

Mitsubishi S4L2 Specifications

General

Compression Ratio	22:1
Aspiration	Naturally Aspirated
Fuel System	Direct injection
Engine Model	S4L2
Starting System	Electric Starter
Cooling System	Water-cooled
Engine Type	4-stroke, water-cooled, diesel engine
Lubrication System	Forced lubrication
