Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
CYLINDER HEAD AND VALVE
MECHANISM
ENGLISH
INSPECTION
2. To install a new jet, put the jet in position in the
head with its tangential orifice in alignment with the
center of the main chamber and tap it with a
plastic hammer. The new jet must be flush with the
cylinder head surface.

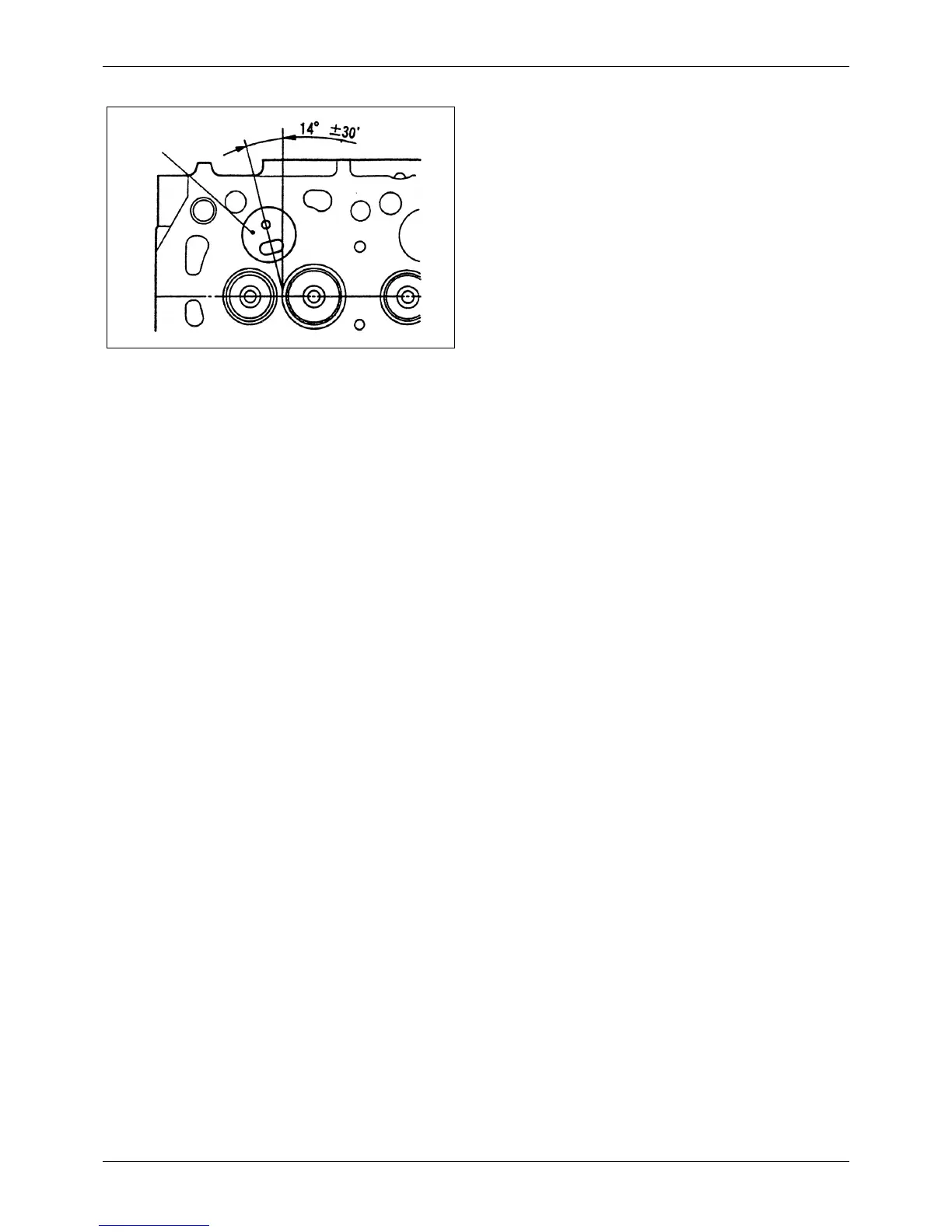

Figure 79 Installing combustion jet
Combustion jet
