8-20
Chapter 8 FUEL SYSTEM

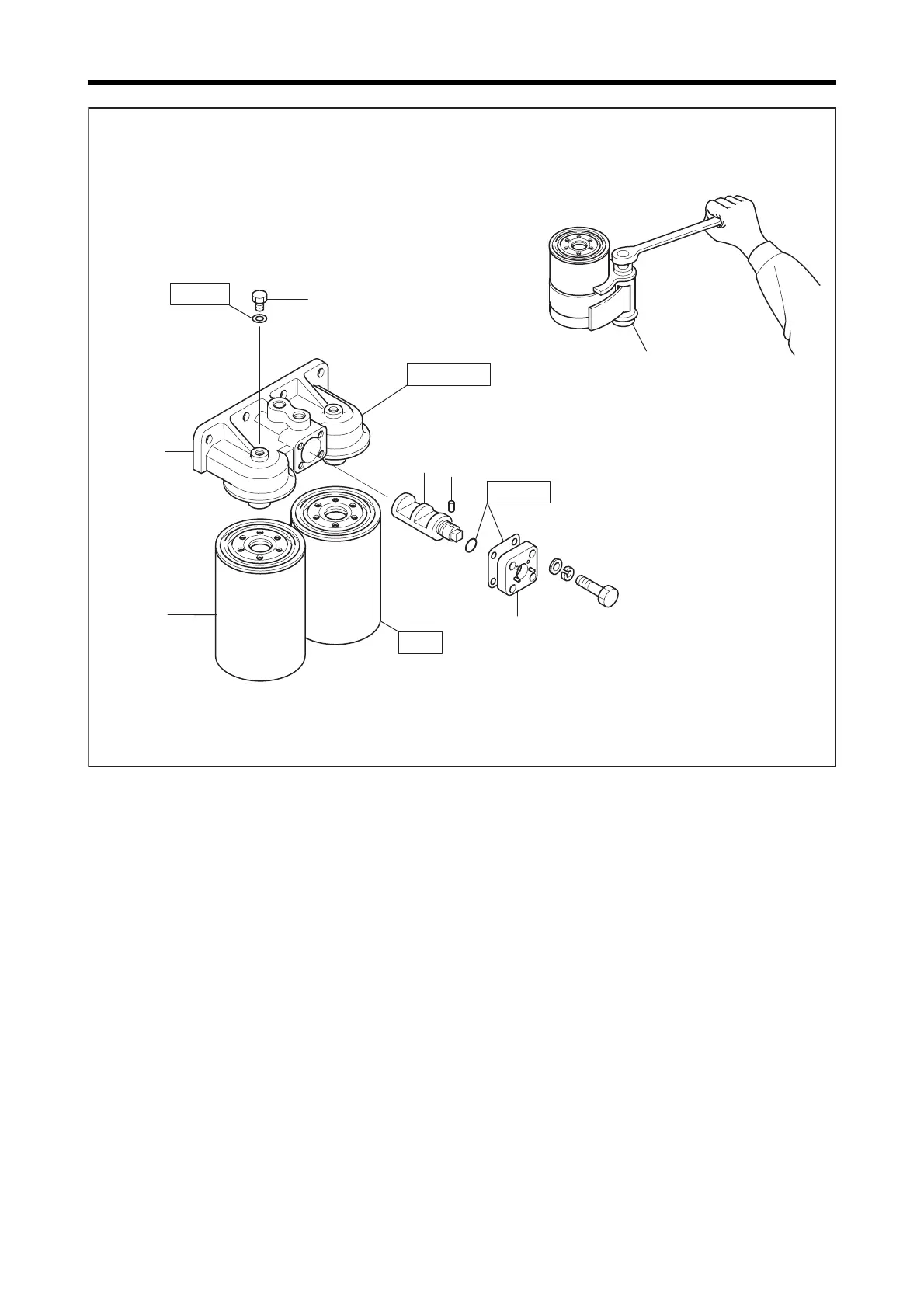

Fuel Filter (Paper Element) - Disassemble, Inspect and Assemble
Change over type fuel filter spec
Crack, flaw
Use the filter wrench to remove
the fuel filter
.
(Use only when removing)
Filter wrench
Replace
Dent
Replace
1
5
4
2
3
Air vent plug
9 ± 1 N·m
{0.9 ± 0.1 kgf·m}
[6.6 ±0.7 lbf·ft]
Disassembling Sequence
1
Fuel filter cartridge
2
Pin
3
Cover
4
Cock
5
Fuel filter bracket
