9-10
Chapter 9 LUBRICATION SYSTEM

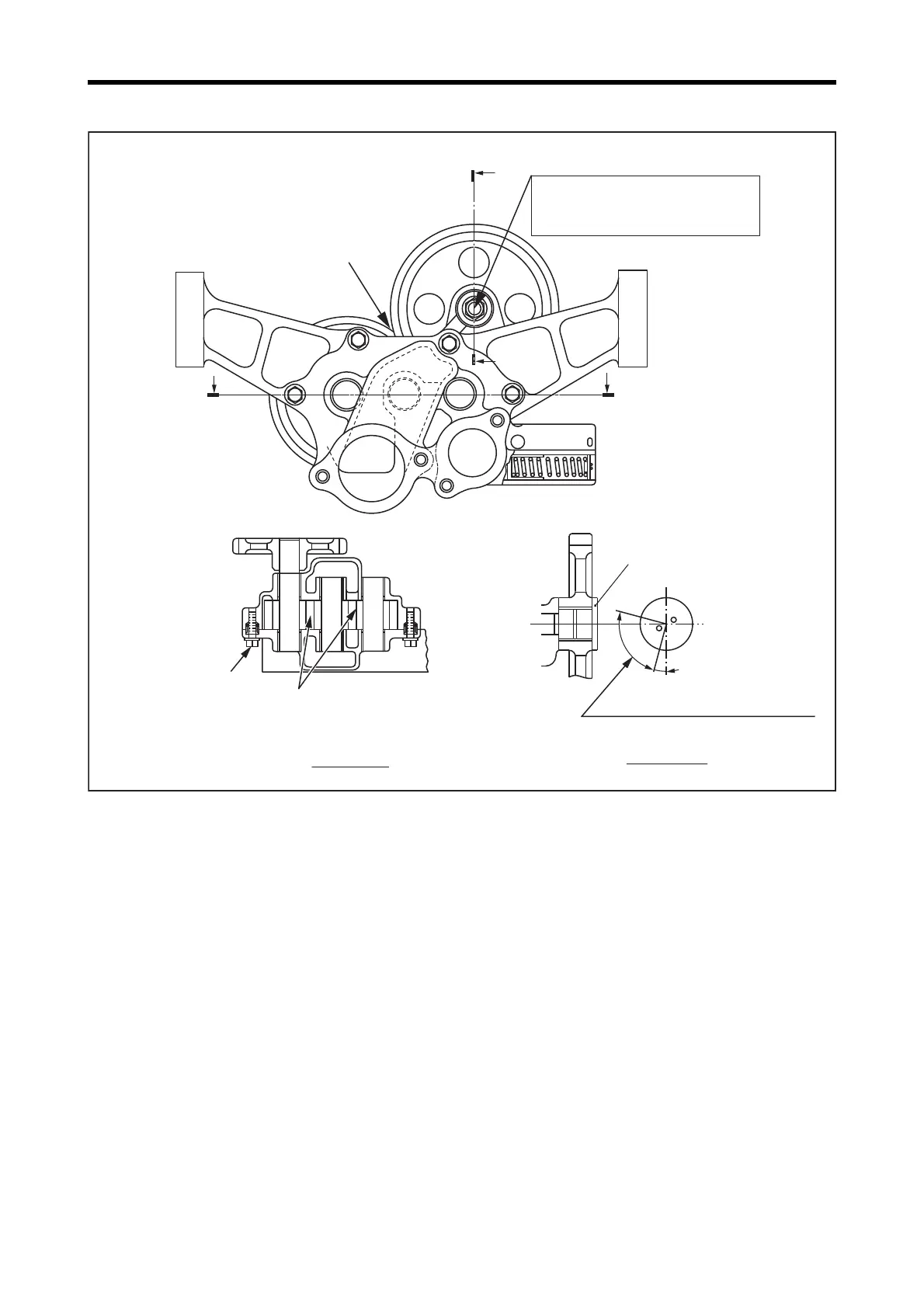

2.3 Oil Pump and Safety Valve - Assemble
Oil Pump and Safety Valve - Assemble
B
B
15°
90°
AA

Backlash
0.087 to 0.316 mm
[0.0034 to 0.0124 in.]
Wipe grease from nut and spindle,
and apply Locktite 262 to threads
before tightening.
69 ± 3.5 N·m {7 ± 0.35 kgf·m} [50.9 ± 2.58 lbf·ft]
33 ± 6.7 N·m
{3.4 ± 0.68 kgf·m}
[24.3 ± 4.94 lbf·ft]
Backlash
0.10 to 0.20 mm
[0.0039 to 0.0079 in.]
Section AA
Section BB
Spindle
Bring "X" mark within this range.
