9-12
Chapter 9 LUBRICATION SYSTEM
2.5 Relief Valve - Inspect
(1) Inspect the relief valve spring, and if any deformation,
wear or damage is found, replace the spring with a new
one.
(2) Inspect the valve, and if any wear, scratch, or slide mal-
functions are found, replace the valve with a new one.
2.6 Relief Valve - Assemble
To assemble, follow the disassembly sequence in reverse.
Use new O-rings to assemble.

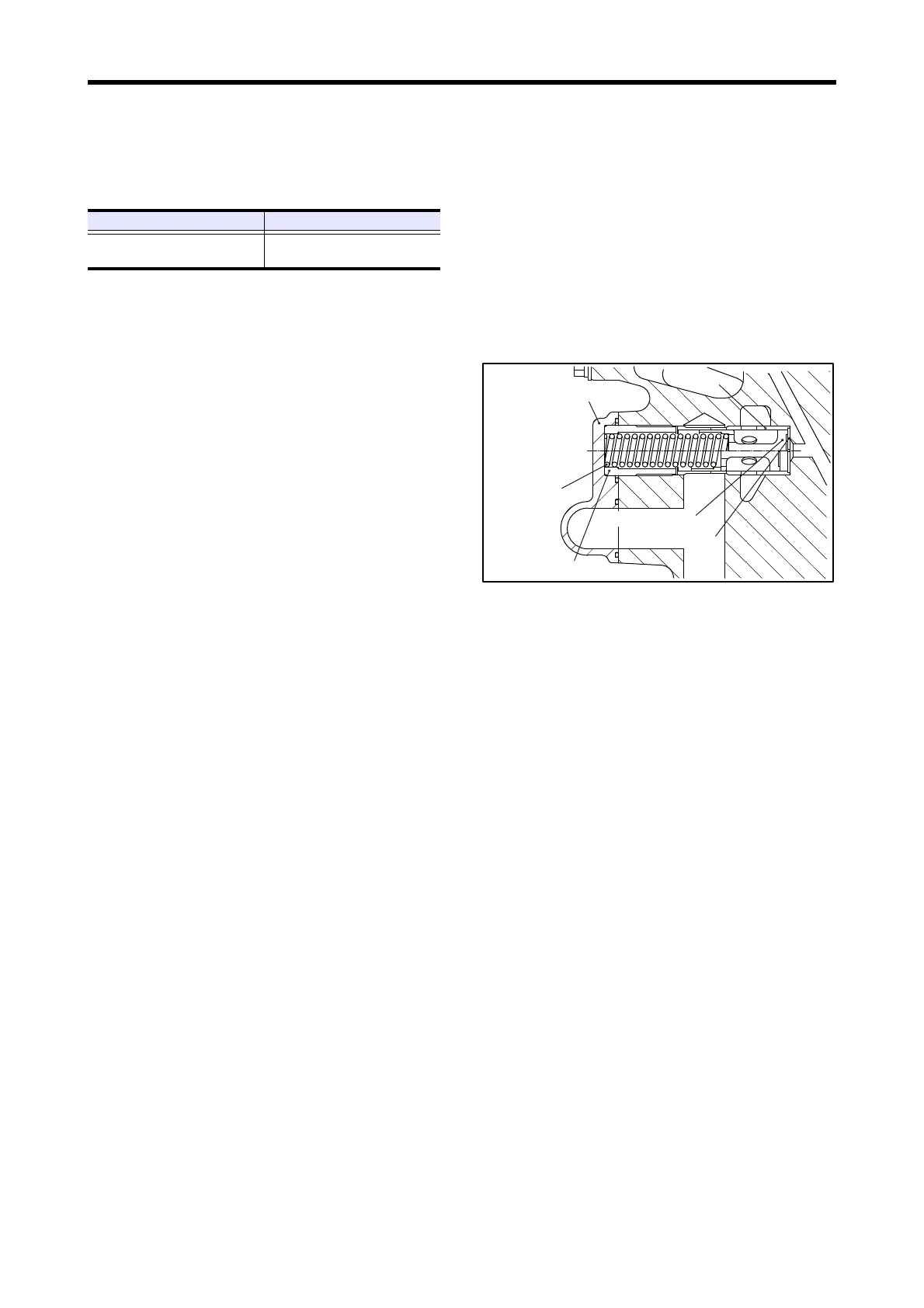

Relief Valve - Assemble
Item Standard value
Relief valve
Spring free length
115 mm [4.53 in.]
Stopper
Spring
Relief valve pipe
Sleeve
Plate
Relief valve
