Chapter 9 LUBRICATION SYSTEM
3. Lubrication System - Install
Install the parts in the reverse order of the disassemble sequence. (Refer to the illustration for disassembling.)
Thoroughly clean and dry the oil passage.

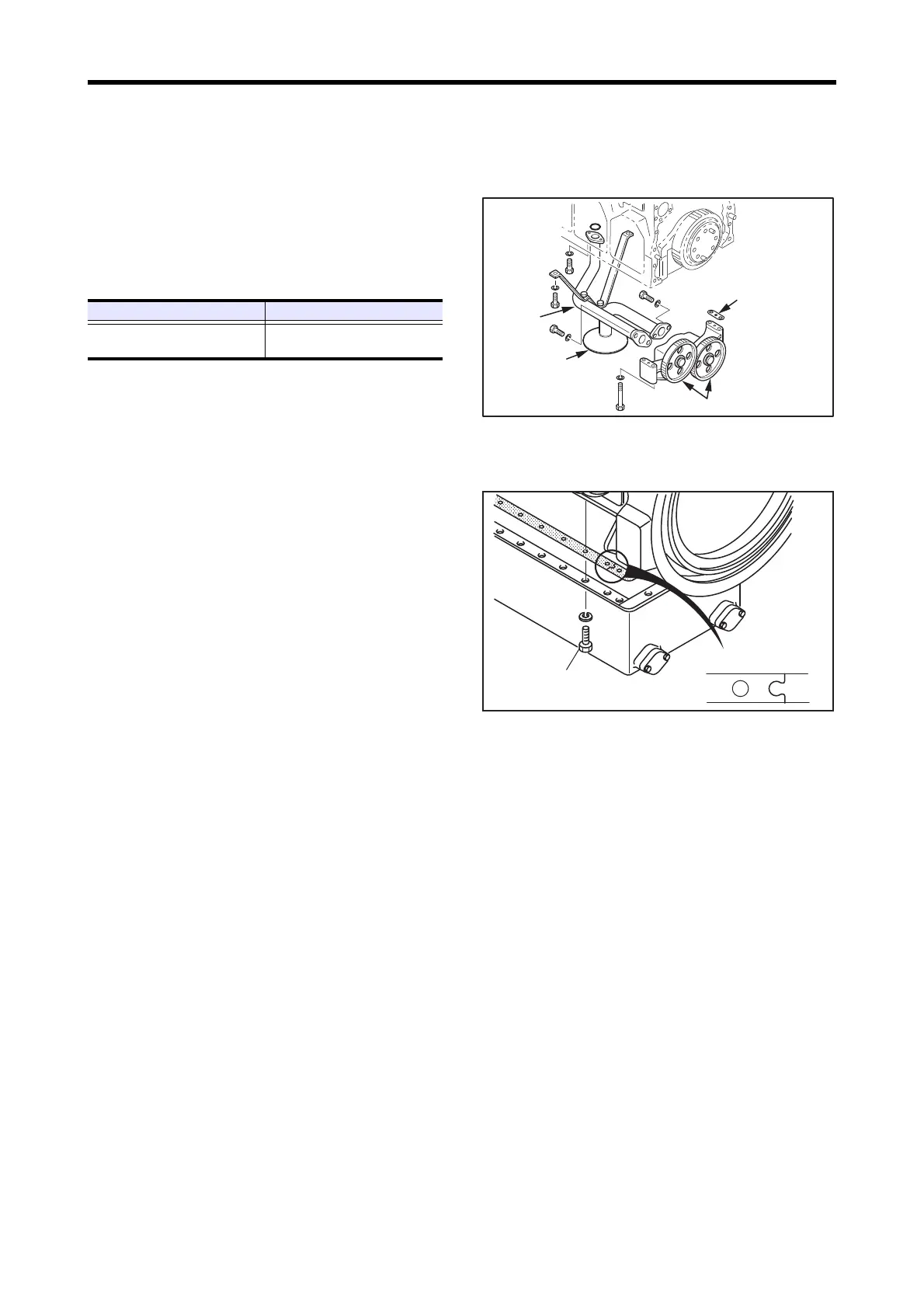

3.1 Oil Pump - Install
After installing the oil pump to crankcase, measure the
backlash of crankshaft gear and oil pump gear.
If the backlash is out of the standard, insert shims to oil
pump mounting portion to adjust the backlash.
Backlash When Installing Oil Pump - Adjust
3.2 Oil Pan - Install
(1) Apply sealant (Heldite) to four places on both surfaces
of oil pan packing joints, and attach the packing to the
oil pan.
(2) Install two guide bolts into the crankcase, and install
the oil pan.
(3) Tighten the mounting bolts to the specified torque.
Oil Pan - Install
Item Standard value
Backlash between oil pump gear
and crankshaft gear
0.11 to 0.38 mm
[0.0043 to 0.0150 in.]
Oil pump gear
Oil strainer
Oil pipe
Shim t = 0.1 mm [0.004 in.]
P/N:37535-01100
108 ± 10.8 N·m
{11 ± 1.1 kgf·m}
[80 ± 8.0 lbf·ft]
59 ± 5.9 N·m
{6 ± 0.6 kgf·m} [43.5 ± 4.35 lbf·ft]
Joints, 4 places
