8-45
Chapter 8 FUEL SYSTEM
3.3.2 Stop Solenoid (RUN OFF) - Adjust
Stop Solenoid (RUN OFF) - Adjust
(1) Push the stop solenoid manually to the stop solenoid ON position (engine stop.)
(2) Fine adjust the flexible length control link so that the distance between the end face of the fuel injection pump and the end
of the control rack becomes 68±0.5 mm [2.68±0.02 in.] (stop position.)
Note:(a) Secure approx 3 mm [0.12 in.] play when the stop solenoid is in ON condition so that the control rack does not move
to the "0" position.
(b) Adjust the engagement lengths even and 8 mm [0.32 in.] or more on right and left-handed threads of the variable-length
control link.

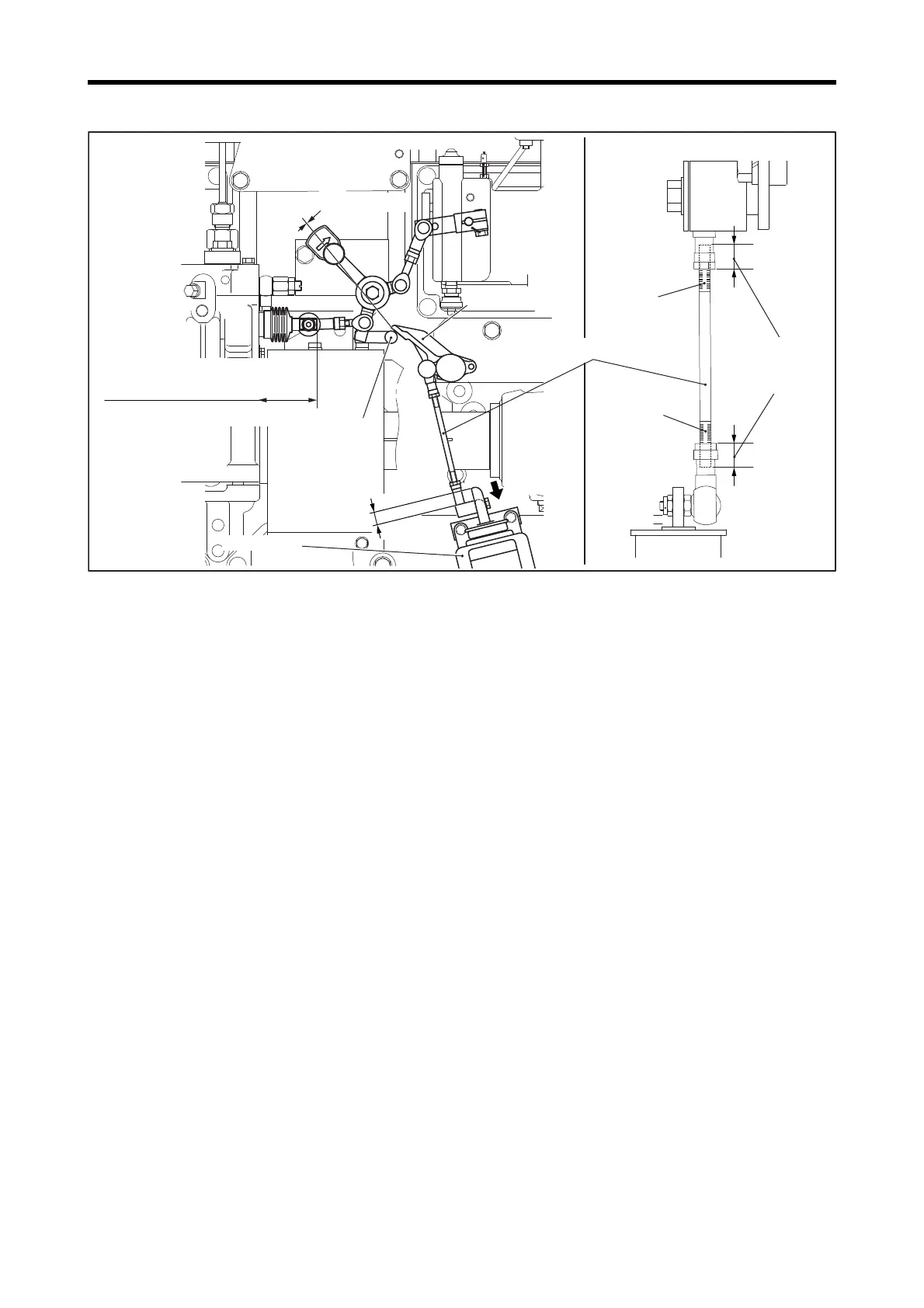

Stop solenoid OFF:
68 ± 0.5 mm [2.68 ± 0.02 in.]
Play: approx. 3 mm [0.12 in.]
Right-hand
thread
OFF
ON
ON
Left-hand
thread
Make screw
engagement
margin even.
Follower
Stop lever
Stop solenoid
Variable length control link
Clearance: 0 mm (contact)
RUN OFF stop system spec
