9-5
Chapter 9 LUBRICATION SYSTEM
1.3
Lubrication Syst
em - Remov
e and Inspec
t (3)

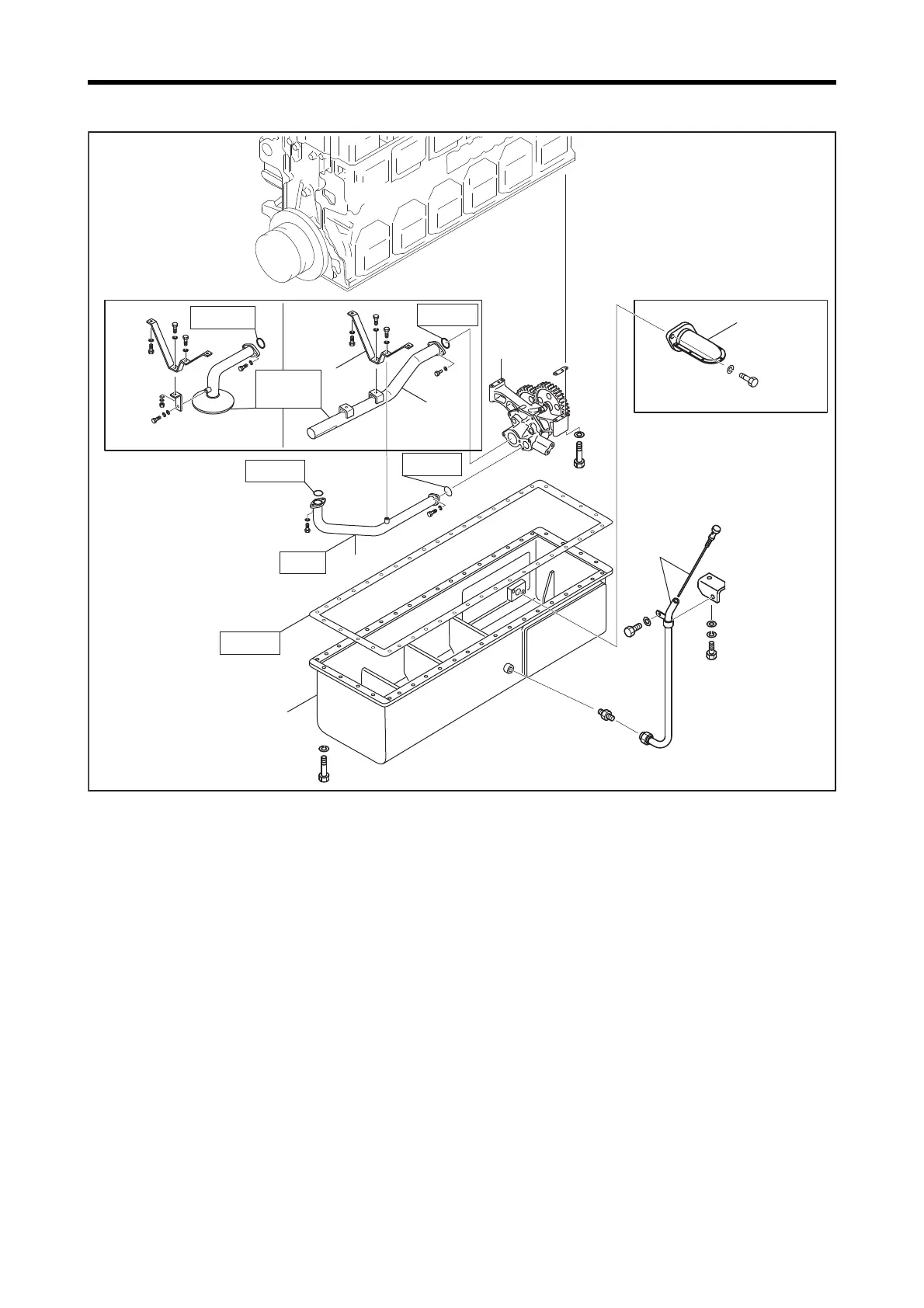

Lubrication System - Remove and Inspect (3)
7
2
3
4
5
6
1
Deep oil pan spec
with emergncy oil strainer spec
Replace
Crack
Replace
Replace
Replace
Clogging,
crack
Replace
Removing Sequence
1
Oil level gauge
2
Oil pan (Standard: approx 55 kg [121 lb]
(Deep type
: approx 110 kg
[243 lb])
3
Oil pump support
4
Oil strainer
5
Oil pipe
6
Oil pump
7
Oil strainer (With emergency oil strainer spec)
209
211
