11-10
Chapter 11 INLET AND EXHAUST SYSTEMS

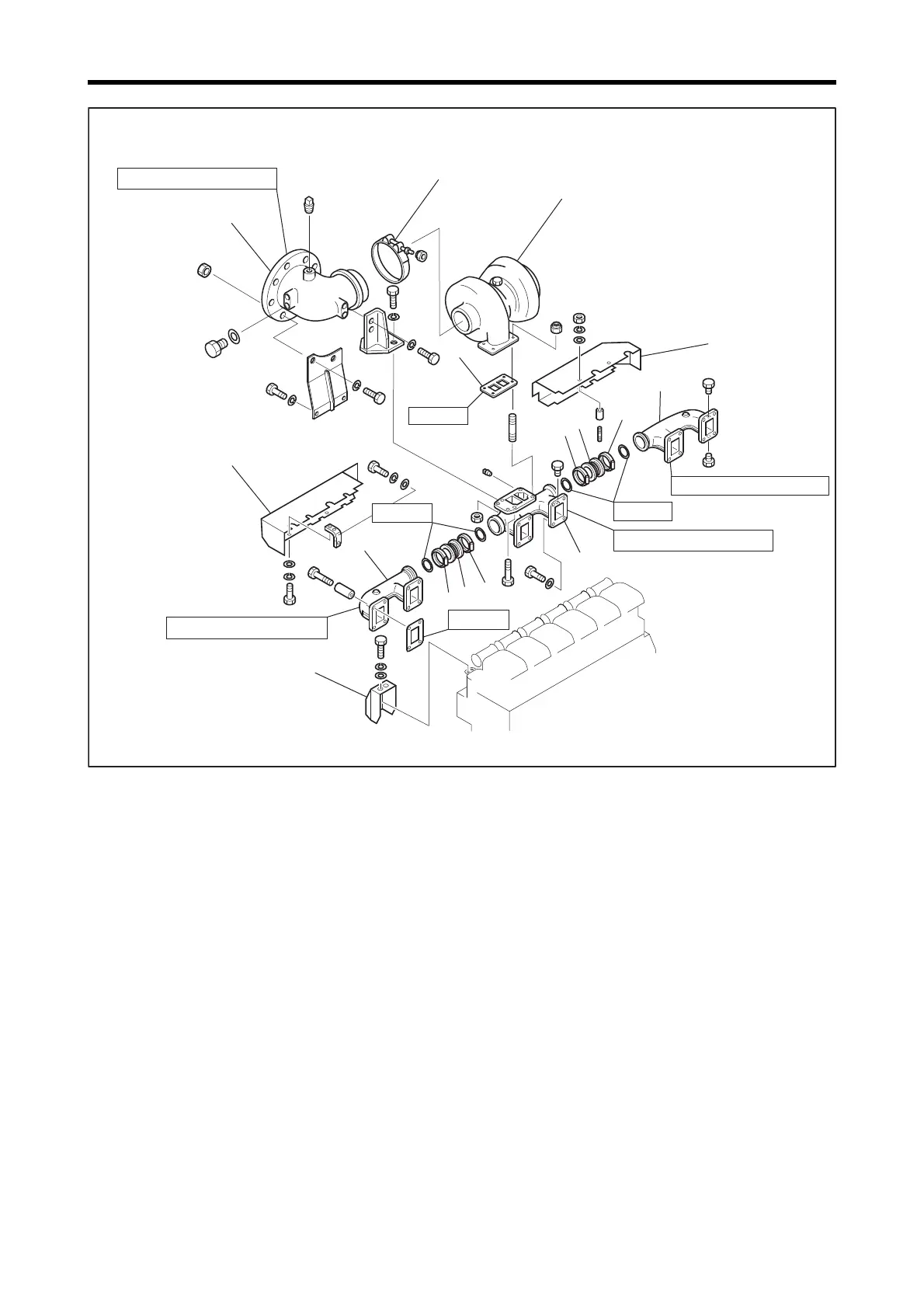

Exhaust System - Remove and Inspect
5
2
5
5
1
3
6
6
7
8
7
8
8
4
6
6
Crack, flaw
, deformation
Crack, flaw
, deformation
Crack, flaw
, deformation
Crack, flaw
, deformation
Replace
Replace
Replace
Replace
Air cooled exhaust fresh air cooler TTD13 spec
Removing Sequence
1
V-clamp
2
Exhaust pipe
3
Turbocharger (Approx 50 kg [110 lb])
4
Gasket
5
Insulator
6
Coupling
7
Flexible joint
8
Exhaust manifold
