Chapter 11 INLET AND EXHAUST SYSTEMS

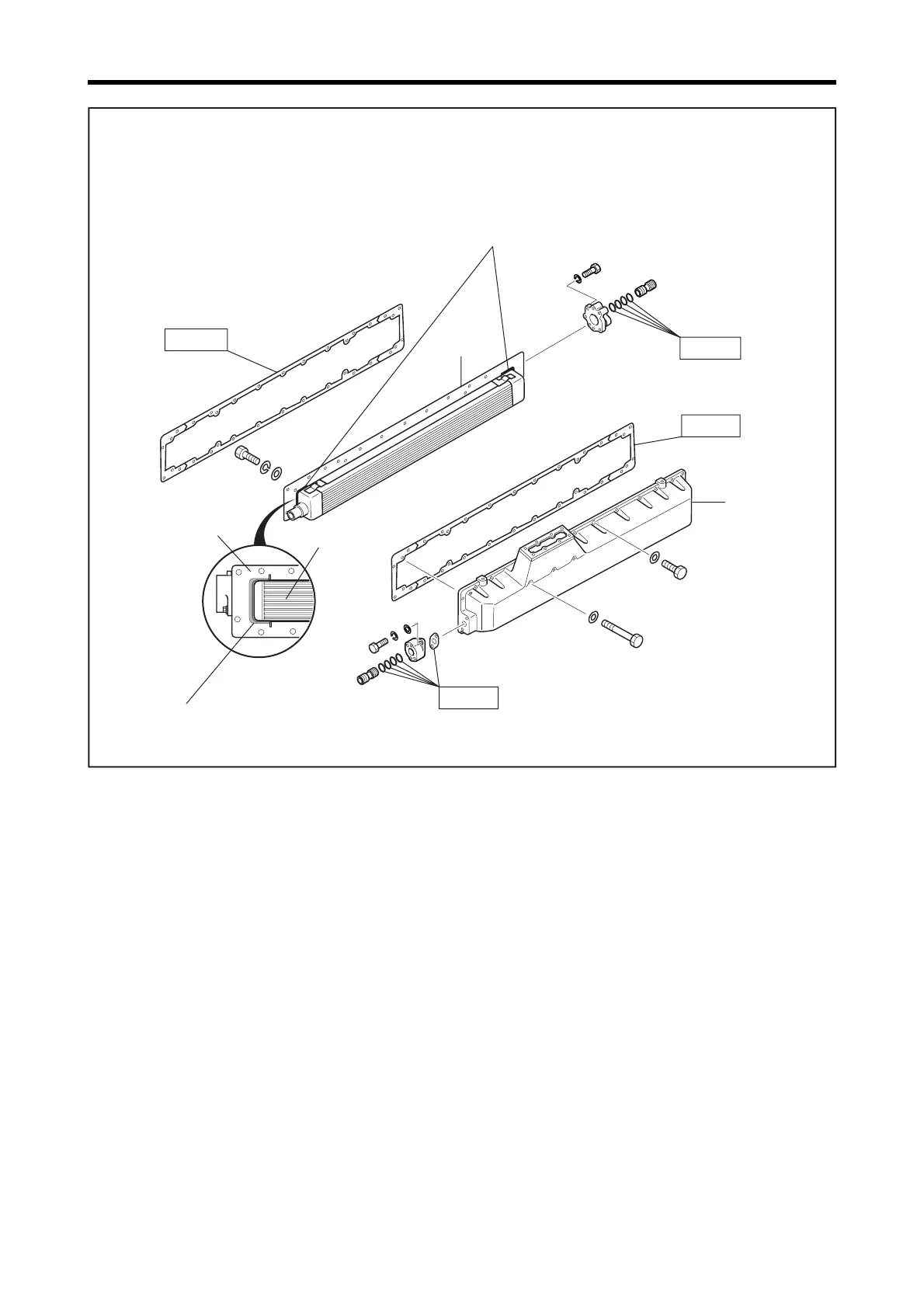

Air Cooler - Disassemble, Inspect and Assemble
The mating face between the element and plate must be
sealed with KE45-W (Shin-Etsu Chemical Co., ltd.) or
equivalent silicon sealant.
The mating face between the element and plate must
be sealed with KE45-W (Shin-Etsu Chemical Co., ltd.)
or equivalent silicon sealant.
Fresh air cooler internal cooling, air cooled exhaust manifold,
fresh water two-stage air cooler spec
Replace
Replace
Replace
Replace
Element
Plate
2
1
Disassembling Sequence
1 Air cooler cover 2 Air cooler element (Approx 46 kg [101 lb])
