Chapter 11 INLET AND EXHAUST SYSTEMS

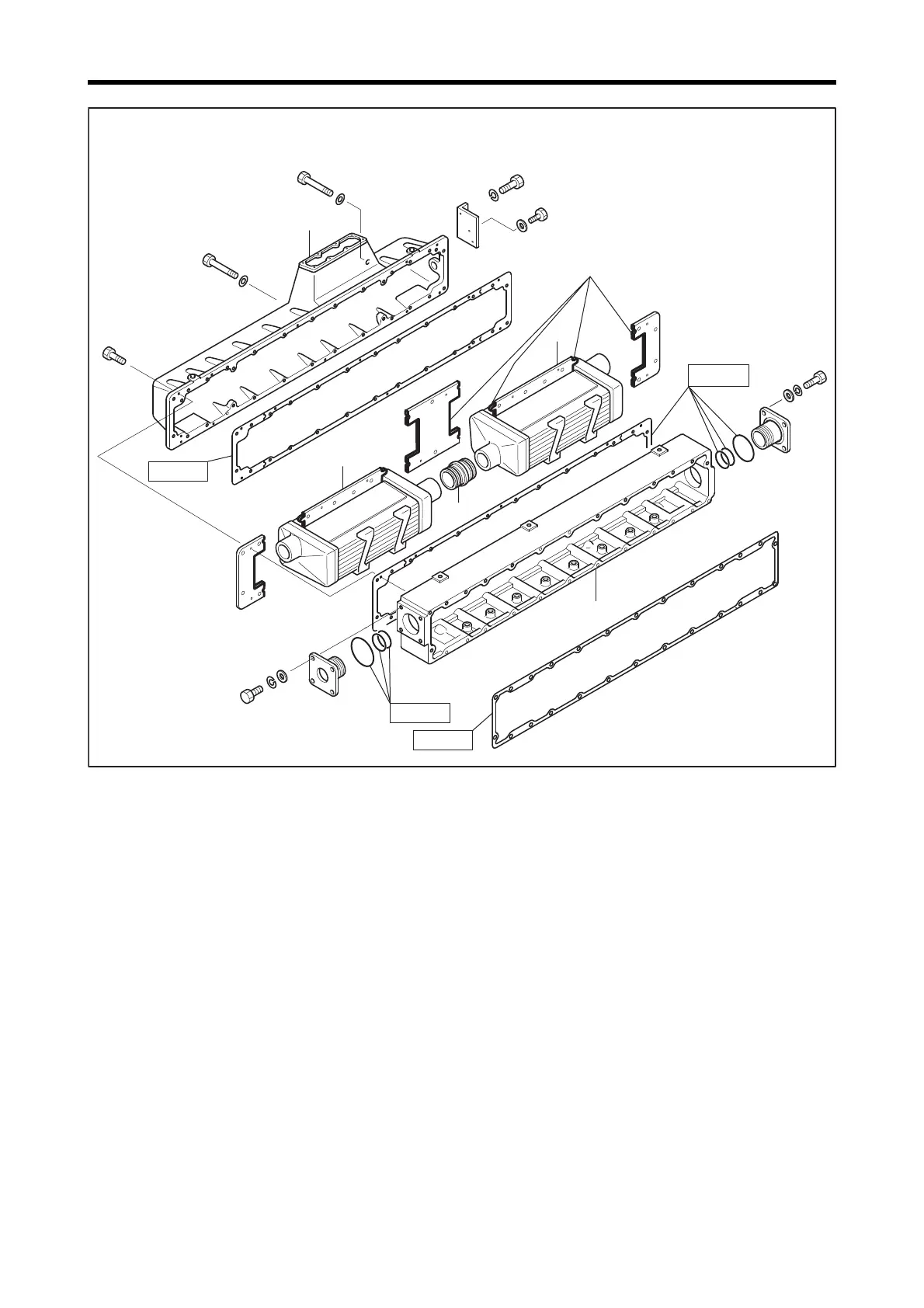

Air Cooler - Disassemble, Inspect and Assemble
1
2
3
4
5
The mating face between the element
and plate must be sealed with KE45-W
(Shin-Etsu Chemical Co., ltd.) or
equivalent silicon sealant (4 places).
S6R2-MTK2 spec
Replace
Replace
Replace
Replace
Disassembling Sequence
1 Air cooler cover
2 Air cooler element (Right) (Approx 29 kg [64 lb])
3 Air cooler element (Left) (Approx 29 kg [64 lb])
4 Joint
5 Air cooler case
