Viewing video images (continued)

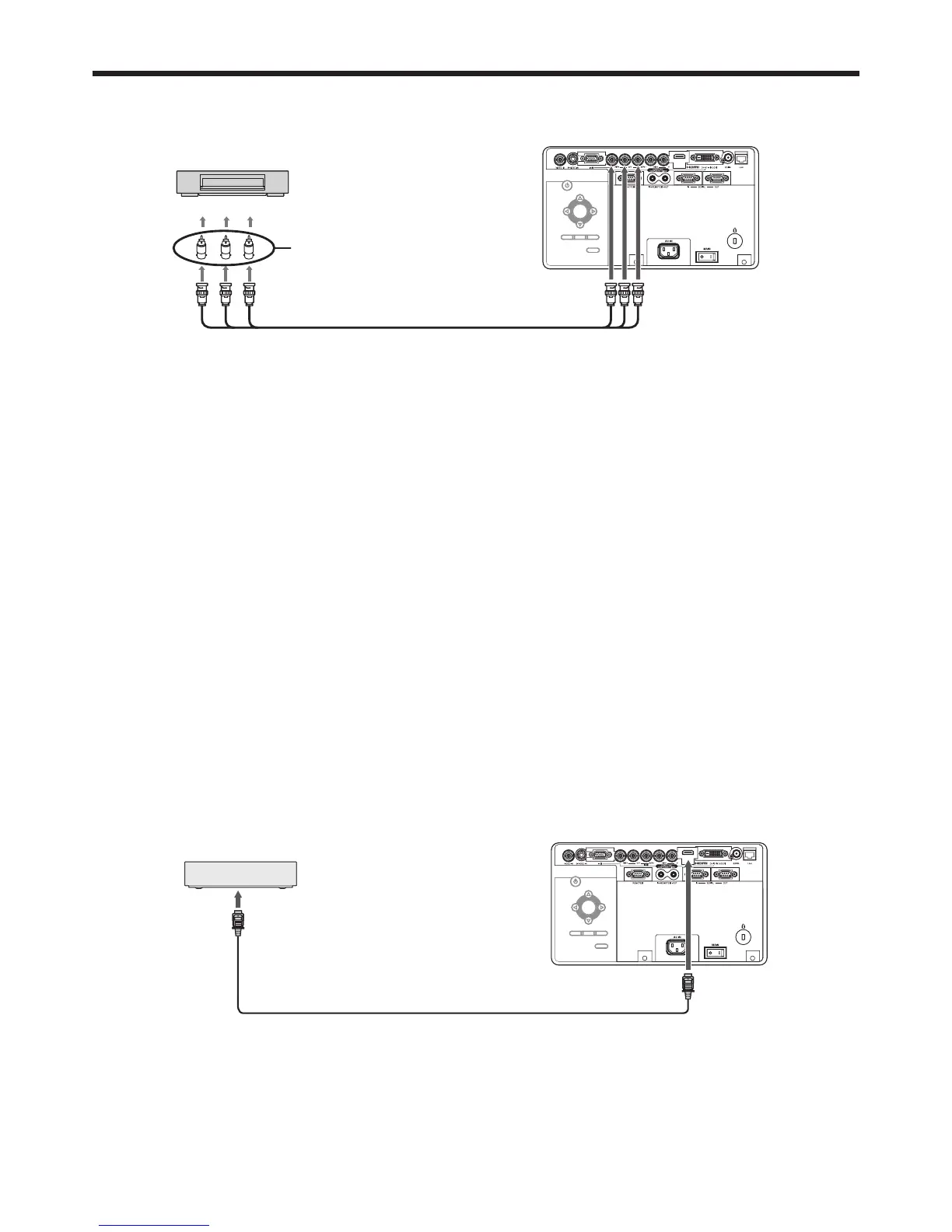

Projector + DVD player or HDTV decoder

Some DVD players have an output connector for 3-line ﬁtting (Y, CB, CR). When connecting such DVD player with this

projector, use the COMPUTER/COMPONENT VIDEO IN-2 terminals.

CB(PB)Y CR(PR)

B G R

DVD player or HDTV decoder

COMPUTER/COMPONENT

VIDEO IN-2

BNC-RCA connector (option)

BNC cable (option)

• Theterminal’snamesY,PB, and PR are given as examples of when a HDTV decoder is connected.

• Theterminal’snamesvarydependingontheconnecteddevices.

• UseBNCcablesforconnection.

• ImagemaynotbeprojectedcorrectlywithsomeDVDplayers.

• Ifcolorsaren’tdisplayedcorrectlywhentheprojectorisconnectedtoahigh-denitionvideodevicehavingR,G,

and B output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu. (See page 39.)

Connecting to video equipment having a HDMI terminal or DVI-D terminal

You can project high-quality images by connecting the COMPUTER/COMPONENT VIDEO DVI-D IN (HDCP) terminal

of this projector to video equipment having a HDMI output terminal or DVI-D terminal. In addition, this projector

supports HDCP and is able to receive encrypted digital video data that are output from DVD players.

• HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital

video data for the purpose of copy protection.

• HDMI (High-Deﬁnition Multimedia Interface) is fully backward compatible with computers, displays and consumer

electronics devices incorporating the DVI standards.

• This projector can be linked with video devices equipped with HDMI output terminal or DVI-D output terminal.

However, with some of them, this projector may not display any image or not operate correctly.

• If this projector doesn’t display any image or not operate correctly, see the operation manual of the video device

for its connection.

• Use of a long cable may decrease the quality of projected images.

Connection (for video equipment having an HDMI terminal)

• Use a commercially available HDMI (with HDMI logo) cable.

• Somecablesmaynotbeconnectedcorrectlydependingonthesizeandshapeoftheirconnectors.

• WhenHDMIisselectedastheinputsource,settingsofFINESYNC.,TRACKING,HOLD,etc.areunavailable.

Equipment having an

HDMI terminal

To HDMI terminal

HDMI IN

HDMI (with HDMI logo) cable (option)
