Mitsubishi UD8350 User Manual

EN-11
Setting up your projector
Before setting up
Before setting up the projector, check the operating environment.
If the environmental requirements are not satisfied, the projector may break down or fail.
Setup environment
The allowable operating temperature varies depending on the projection angle.
For floor installation (projection angle 0°) and ceiling installation (projection angle 180°): +41°F (+5°C) to +104°F (+40°C)
For installation at other angles: +41°F (+5°C) to +95°F (+35°C)
For use in the HIGH ALTITUDE mode (see page 13), the allowable operating temperature is +41°F (+5°C) to +95°F
(+35°C), which allows floor installation or ceiling installation only.
Setting up the screen
Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the
projection angle of the projector. (See page 14.)
• Installthescreenandprojectorsothattheprojector’slensisplacedatthesameheightandhorizontalpositionof
the screen center.
• Donotinstallthescreenwhereitisexposedtodirectsunlightorlighting.Lightdirectlyreectingonthescreen
makes the projected images whitish and hard to view.

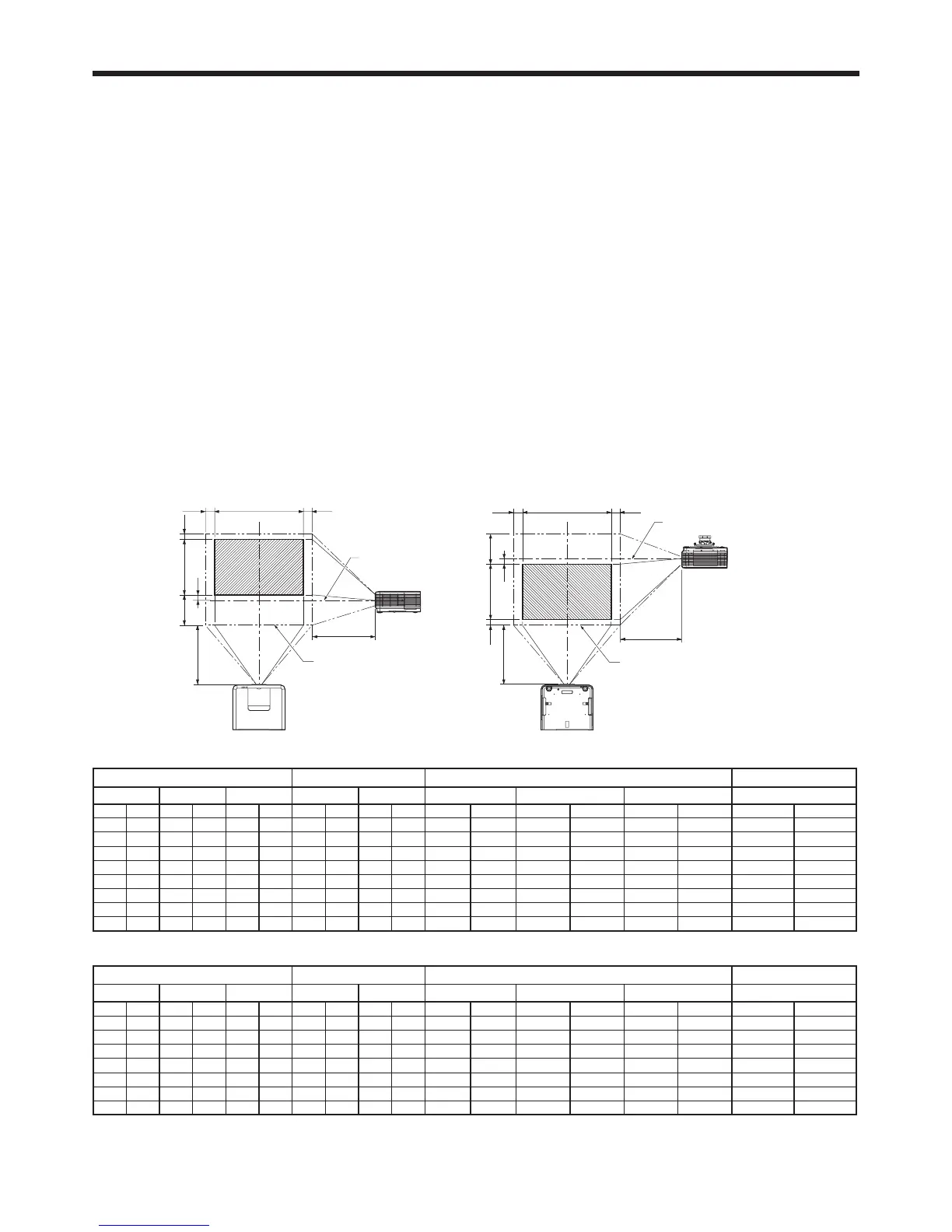

Screen size and projection distance
Refer to the following table to determine the screen size and projection distance. (For UD8400U and UD8350U only.
For UD8400LU and UD8350LU, see page 76.)
• Fortheaspectratiosetting,seepage25.
• Theguresinthetablesareapproximateandmaybeslightlydifferentfromtheactualmeasurements.
• Thelensshiftheightandwidthshowdistancesfromthefactorydefaultposition.
H0
H0
W1
H1
H2
H
L
W1
W
L
W1
H1 H2
H
L
W1
W
L
Center of the lens
Center of the lens
Maximum projection area
Maximum projection area
Front projection
Front projection, ceiling mounting
When the aspect ratio is “FULL” (Display at 1920 x 1200 pixels)
Size of the projected image (16:10) Projection distance (L) Lens shift height Lens shift width
Diagonal size Width (W) Height (H) Shortest (Wide) Longest (Tele)
Standard (H0)
Movement distance (H1) Movement distance (H2) Movement distance (W1)
inch cm inch cm inch cm inch m inch m
inch cm
inch cm inch cm inch cm
40 102 34 86 21 54 55 1.4 76 1.9 0 0 10 26 4 10 3 8
60 152 51 129 32 81 83 2.1 115 2.9 0 0 15 39 6 15 5 12
80 203 68 172 42 108 112 2.8 154 3.9 0 0 21 52 8 20 7 17
100 254 85 215 53 135 141 3.6 193 4.9 0 0 26 66 10 25 8 21
150 381 127 323 79 202 213 5.4 291 7.4 0 0 39 98 15 37 12 31
200 508 170 431 106 269 285 7.2 389 9.9 0 0 52 131 20 50 16 42
250 635 212 538 132 337 356 9.1 - - 0 0 65 164 24 62 20 52
300 762 254 646 159 404 428 10.9 - - 0 0 77 197 29 75 25 62
When the aspect ratio is “16:9” (Display at 1920 x 1080 pixels)
Size of the projected image (16:9) Projection distance (L) Lens shift height Lens shift width
Diagonal size Width (W) Height (H) Shortest (Wide) Longest (Tele)
Standard (H0)
Movement distance (H1) Movement distance (H2) Movement distance (W1)
inch cm inch cm inch cm inch m inch m
inch cm
inch cm inch cm inch cm
40 102 35 89 20 50 56 1.4 78 2.0 1 3 11 27 4 10 3 9
60 152 52 133 29 75 86 2.2 118 3.0 2 4 16 40 6 15 5 13
80 203 70 177 39 100 115 2.9 158 4.0 2 6 21 54 8 20 7 17
100 254 87 221 49 125 145 3.7 198 5.0 3 7 27 67 10 26 8 21
150 381 131 332 74 187 219 5.6 299 7.6 4 11 40 101 15 38 13 32
200 508 174 443 98 249 293 7.4 399 10.1 6 14 53 135 20 51 17 43
250 635 218 553 123 311 366 9.3 - - 7 18 66 168 25 64 21 53
• Dependingontheinstallationconditions,warmairthatisemittedfromtheexhaustventsmayowintotheintake
vent, causing the projector to display “TEMPERATURE!!” and then stop projecting images.
