1. INTRODUCTION

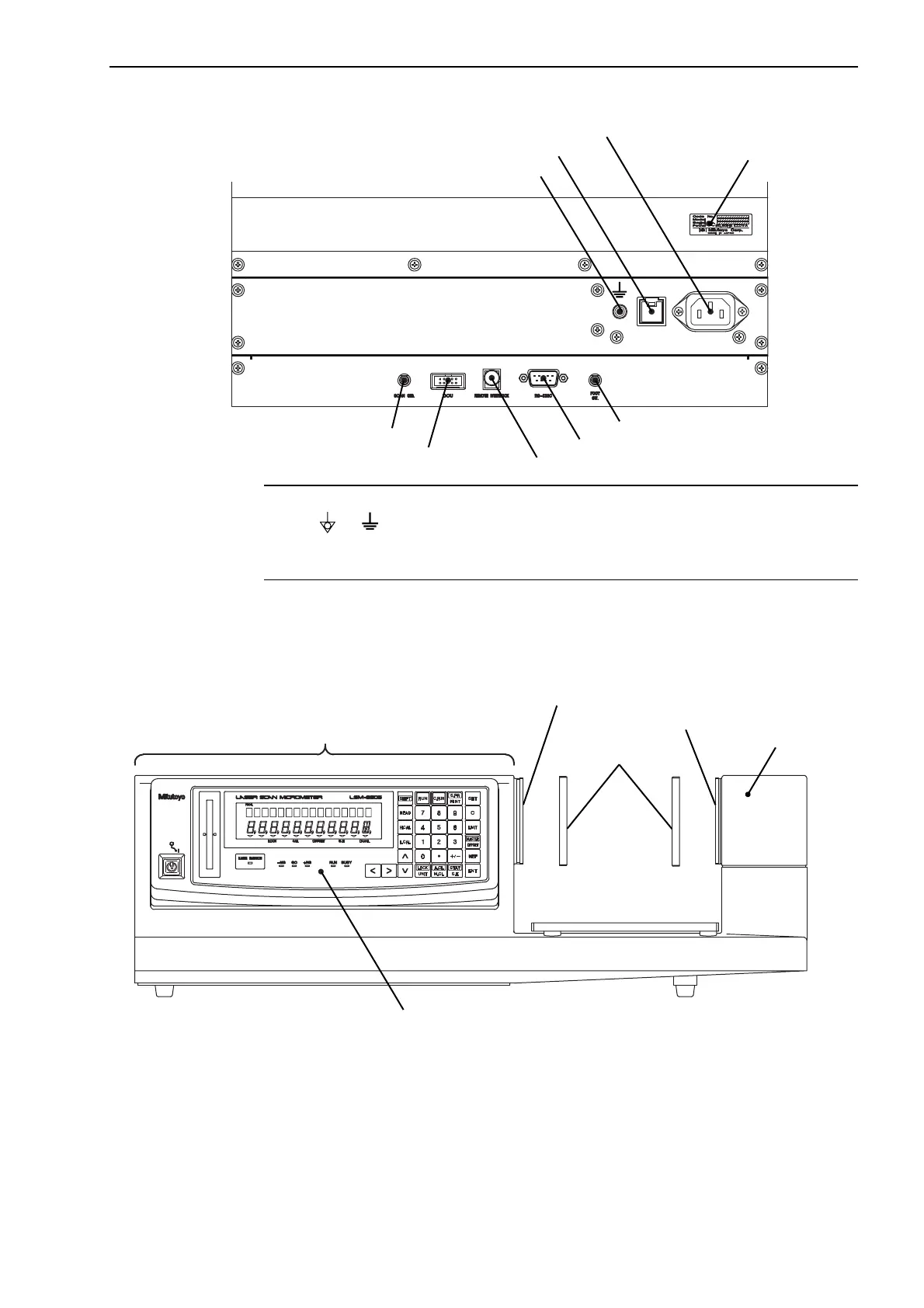

(3) Rear panel
AC power inlet
RS-232C connector
Foot switch
Remote interlock connector
Digimatic output connector
Scanning signal connector
Serial number label
Fuse holder
GND terminal
TIP The terminal located at the left end of the power input terminal and marked (by a
symbol or ) is the grounding terminal to keep the potential of signal line of this
unit equal with other instrument connected. It is used to enhance resistance against
electrical interference.
1.3.2 Measuring Unit
(1) Measuring Unit
Shutter
Emission unit
Reception window
Reception unit
Display unit
Emission window
To Next Page
