MKS 248A - Setup; Dimensions; Figure 3: Dimensions of a Type 248 Control Valve

Setup Chapter Two: Installation
10
Setup
Dimensions
Note
All dimensions are listed in inches with millimeters referenced in
parentheses.
Table 1 A B
(in.) (mm) (in.) (mm)
4 VCR 3.37 85.6 3.38 85.9
4 VCO 3.05 77.5
1/4" Swagelok 2.76 70.1

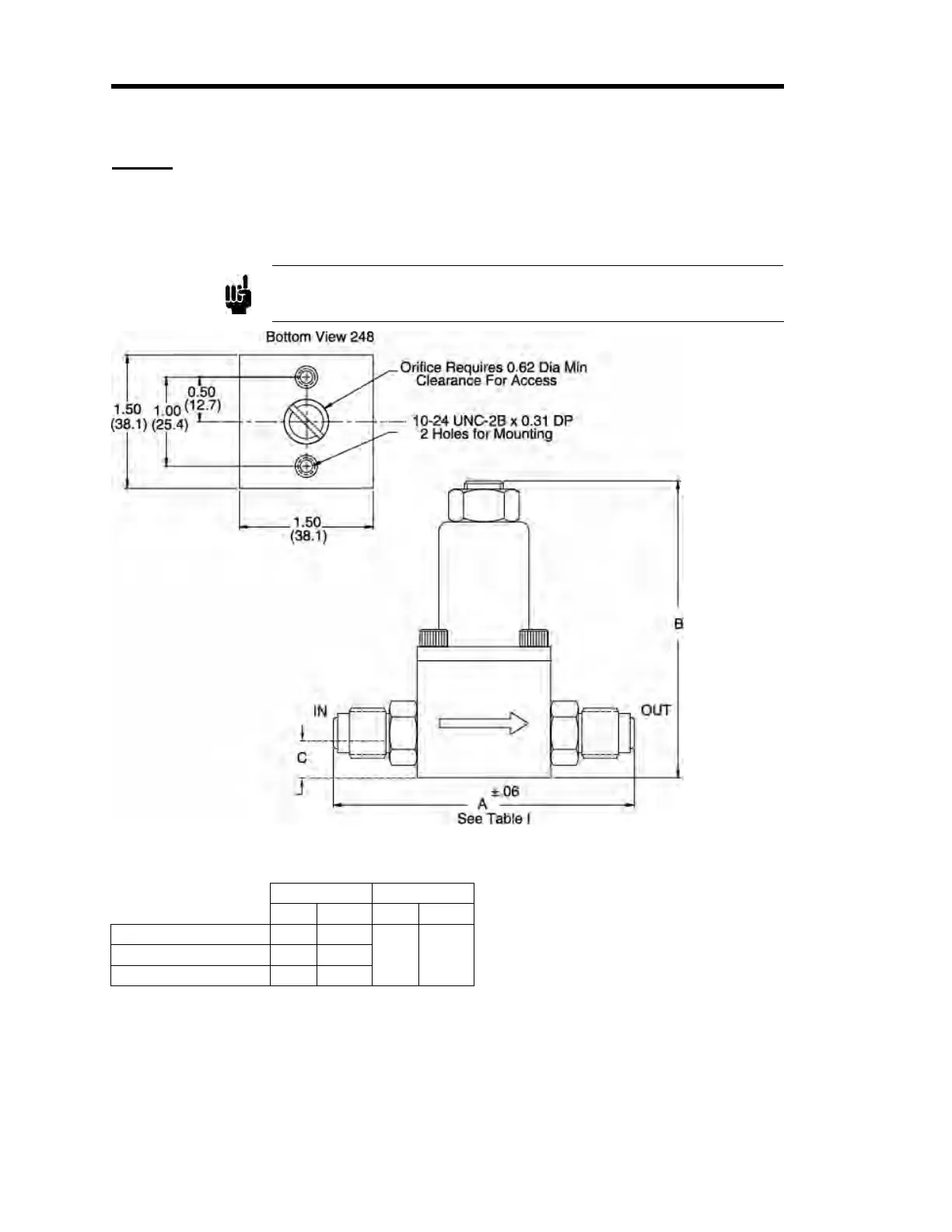

Figure 3: Dimensions of a Type 248 Control Valve
