2 MECHANICAL DESCRIPTION
2.1 Overview
The pictures below show the mechanical design of the terminal along with the positions of the different
connectors. The terminal case is made of durable PC/ABS plastic.
2.2 Dimensions

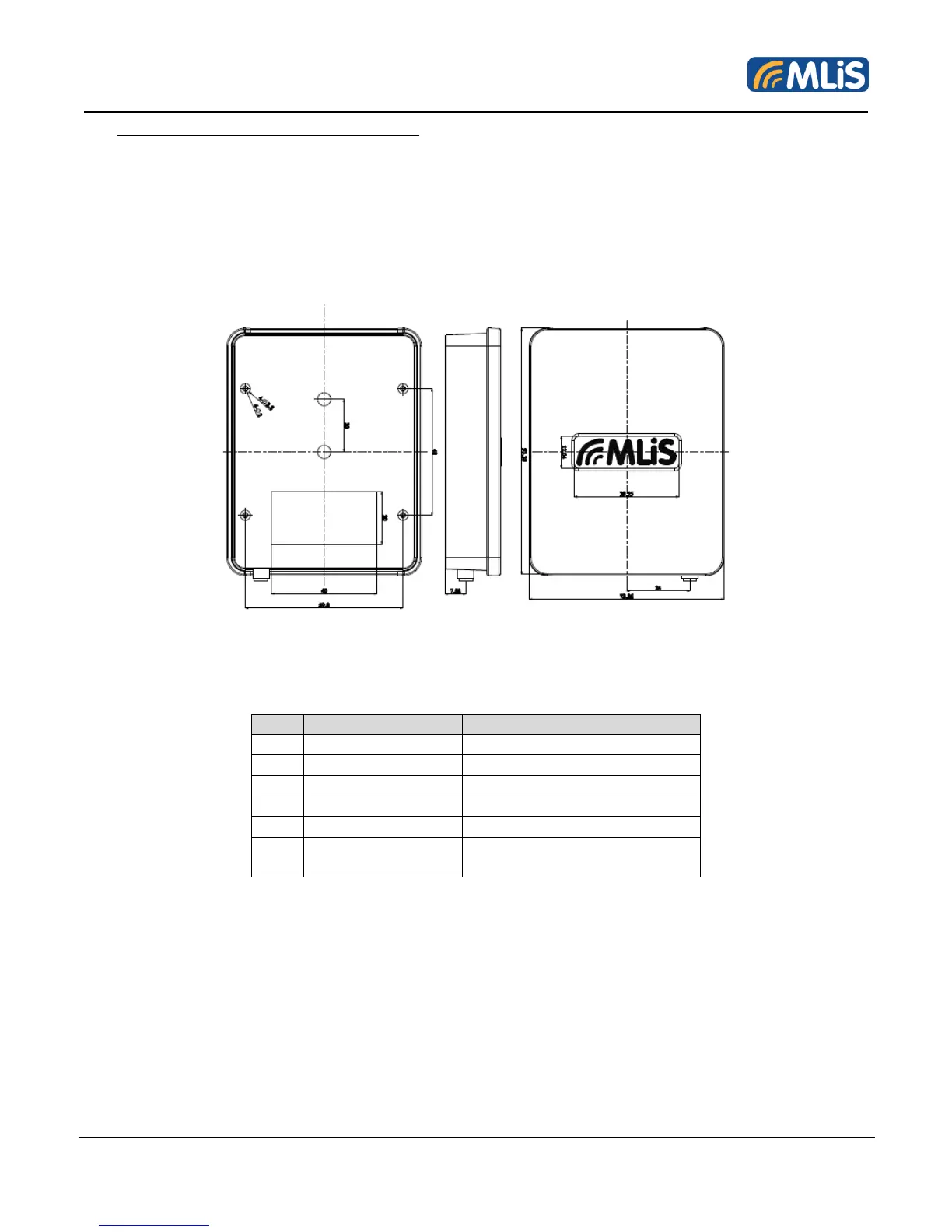

Figure 2: Chassis Dimension for MLB-G3002
S/N
Parameter
Value
1
Height (H)
20.00mm
2
Length (L)
93.33mm
3
Width (W)
73.86mm
4
Weight
90g
5
Chassis Material
Plastic
6
Mounting
Standard
Suitable for use with DIN
Rail Clips
Table 3: Chassis Dimensions and Mechanical Description for MLB-G3002
