MLB-G3002 Terminal User Guide 16 Rev 1.1
3.3 RJ45 Connector
The RJ45 Modular COM port is used to supply power to the terminal as well as provide serial data
communication. The terminal accepts voltage levels between +5Vdc to +32Vdc. Do not exceed these
levels. The minimum requirement, for the terminal to communicate with the application or DTE, is
established through using the following pins:
 TxD: Where the Application sends data to MLiS Terminal
 RxD: Where the Application receives data from MLiS Terminal

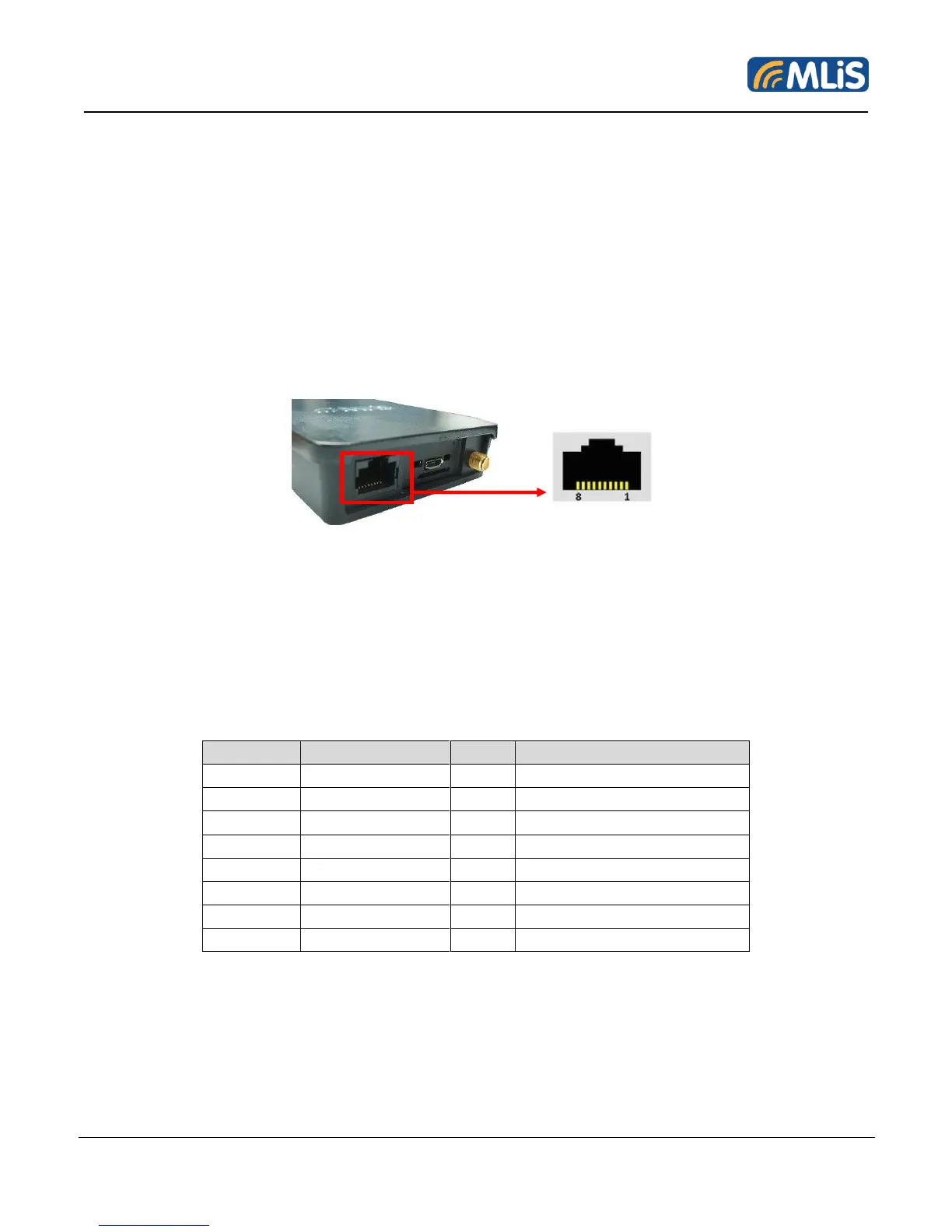

Figure 5: RJ45 Connector Pin Definition for MLB-G3002
The table below defines the RS232 Socket pin configuration on the Terminal:
Pin No.
Signal Name
I/O
Function
1
VIN
-
DC Input +5V ~ +32V
2
RTS
O
Request To Send
3
CTS
I
Clear to Send
4
RxD
I
Receive Data
5
TxD
O
Transmit Data
6
GND
-
Ground
7
DTR
I
Data terminal ready
8
DSR
O
Data Set Ready
Table 5: RJ45 connector configuration for MLB-G3002
