MLB-G3002 Terminal User Guide 18 Rev 1.1

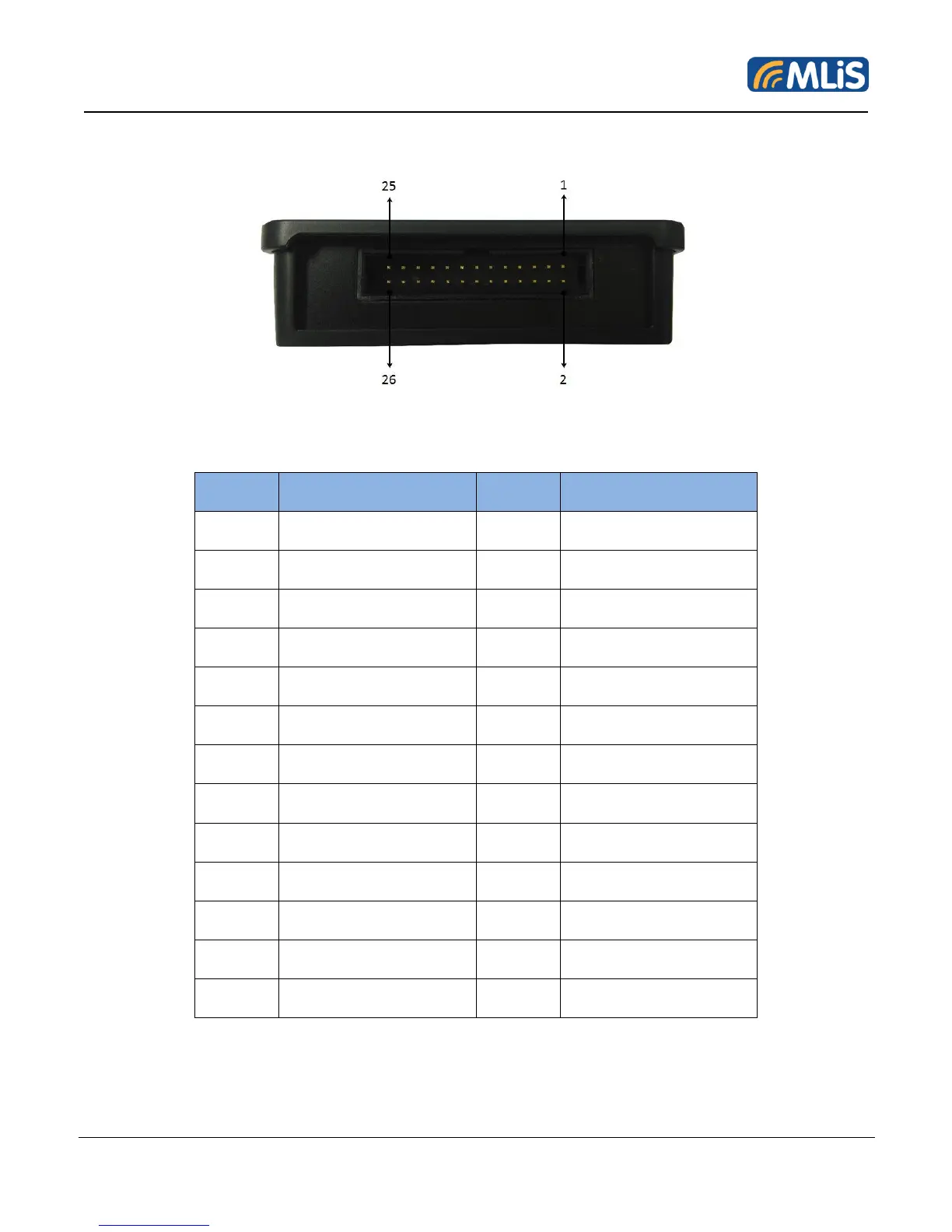

3.5 Extend I/O
If users would like to use these pins to control module by Java, all definitation of pins connect to the same name
on mdoule and working voltage is 1.8V.
Pin no.
Signal name
Pin no.
Signal name
1
GPIO4
14
GPIO24
2
GPIO6
15
V180
3
GPIO7
16
GND
4
GPIO8
17
I2CDAT
5
1.8V
18
I2CCLK
6
GND
19
GPIO20
7
GPIO16
20
GPIO21
8
GPIO17
21
GPIO22
9
GPIO18
22
GPIO23
10
GPIO19
23
NC
11
3.3V
24
GND
12
GND
25
ADC1
13
GND
26
GND
