MLB-G3002 Terminal User Guide 9 Rev 1.1
1.3 Functional Block diagram

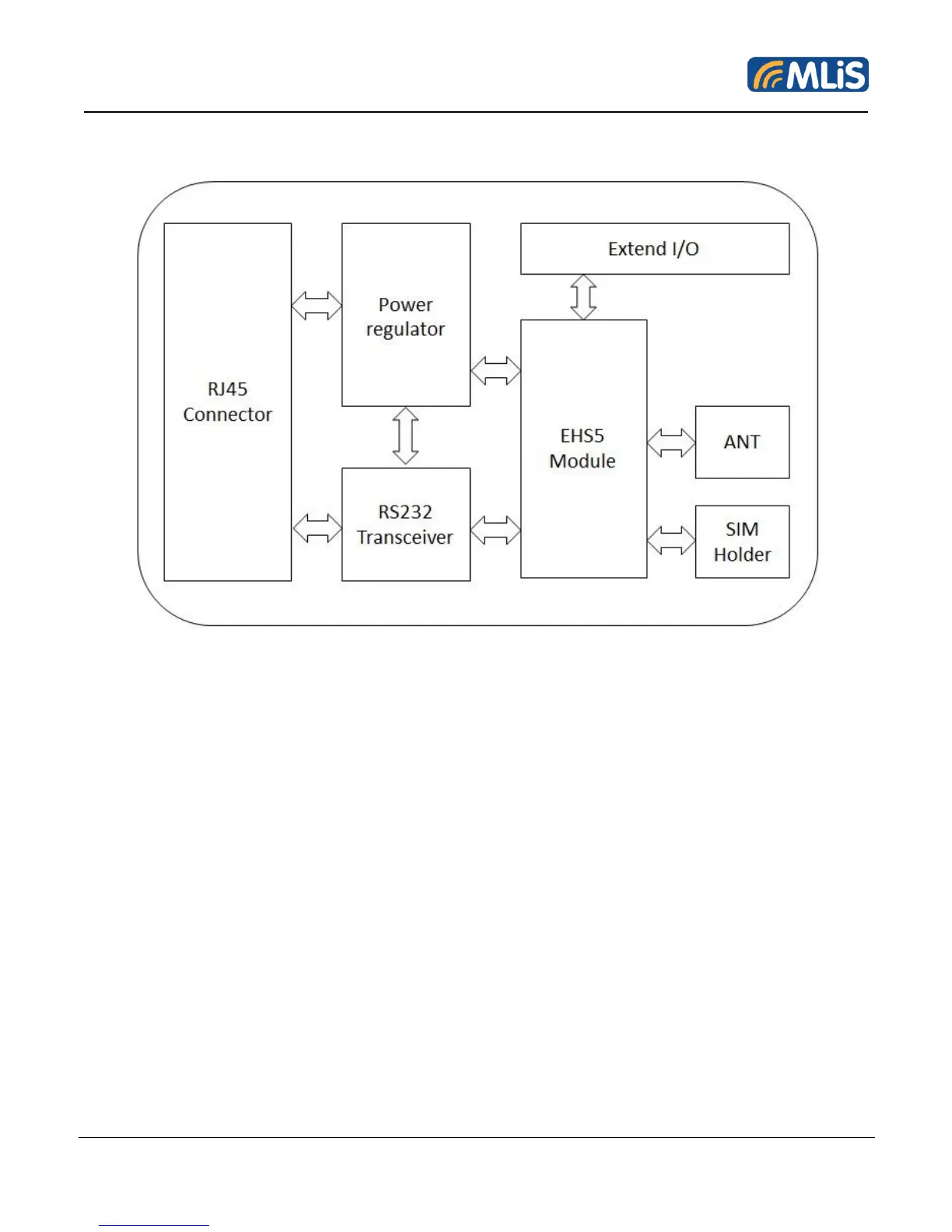

Figure 1: Functional Block Diagram for MLB-G3002
The MLB-G3002 consists of a fully certified (CE approved) GSM/GPRS engine, SIM card holder and
power regulator.
The terminal is supplied with power via the RJ45 connector. The remaining RJ45 connector pins are
used for data communications.
The SMA female connector provides the air interface to an external 50 ohm antenna specified for the
correct frequency band.
