MLB-G3002 Terminal User Guide 15 Rev 1.1
Item
Description
Function
5
LED (Blue)
LED of Network status (See chapter 4.3)
6
LED (Green)
Power LED
7
Extend I/O
See chapter 3.5
Table 4: Interfaces and Indicators Description of MLB-G3002
3.2 Radio Interface (Type SMA Connector Female) - RF Antenna

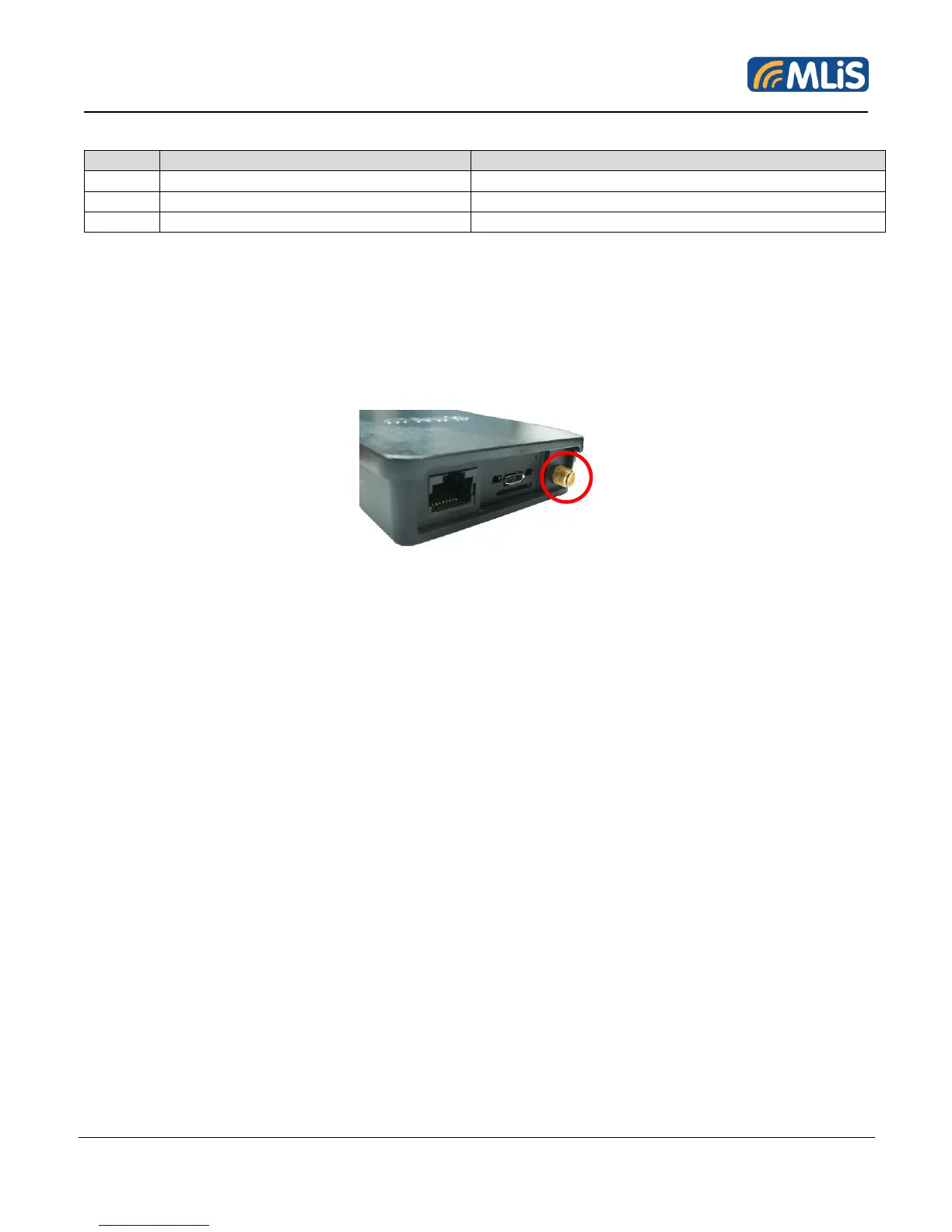

Figure 4: Antenna Connector for MLB-G3002
The connection of the antenna or other equipment must be decoupled from DC voltage.
For optimum RF performance, the MLiS Terminal has to be connected to an external RF antenna
matched to 50ohms including other connecting cables across the operating frequency bands. Please use
a SMA Male connection for the terminal.
Choose suitable types of low attenuation coaxial cables if possible. In general the ohm types RG174 or
RG58 50 can be used. Avoid excessive cable length of > 10 meters.
＊ Compatible RF antennas (PCB patched or Monopole type) are available for order, please
refer to accessories document.
