requirements: Common PC with an operational
software Windows 95 and higher. One free port
RS 232 (COM) is required for each connected
device. The maximum length of the connecting
cable is 15 m. For more detailed information
about HW, ask the seller.
11.7 HEPA FILTER
HEPA lter is either in a normal version or in the
overpressure version.
The overpressure HEPA lter is equipped with
the external fan, which forces the surrounding air
through the HEPA lter into the chamber and thus
it ensures the overpressure in the chamber as
opposed to the surrounding environment by ca.
20 Pa. In case of operation of the overpressure
HEPA lter there may happen to deterioration of
parameters of the thermal homogeneity.
11.7.1
PLACING THE HEPA FILTER, FILTER
DIMENSIONS, FUNCTION AND
FILTRATION CHARACTERISTIC OF
THE AIR FILTER

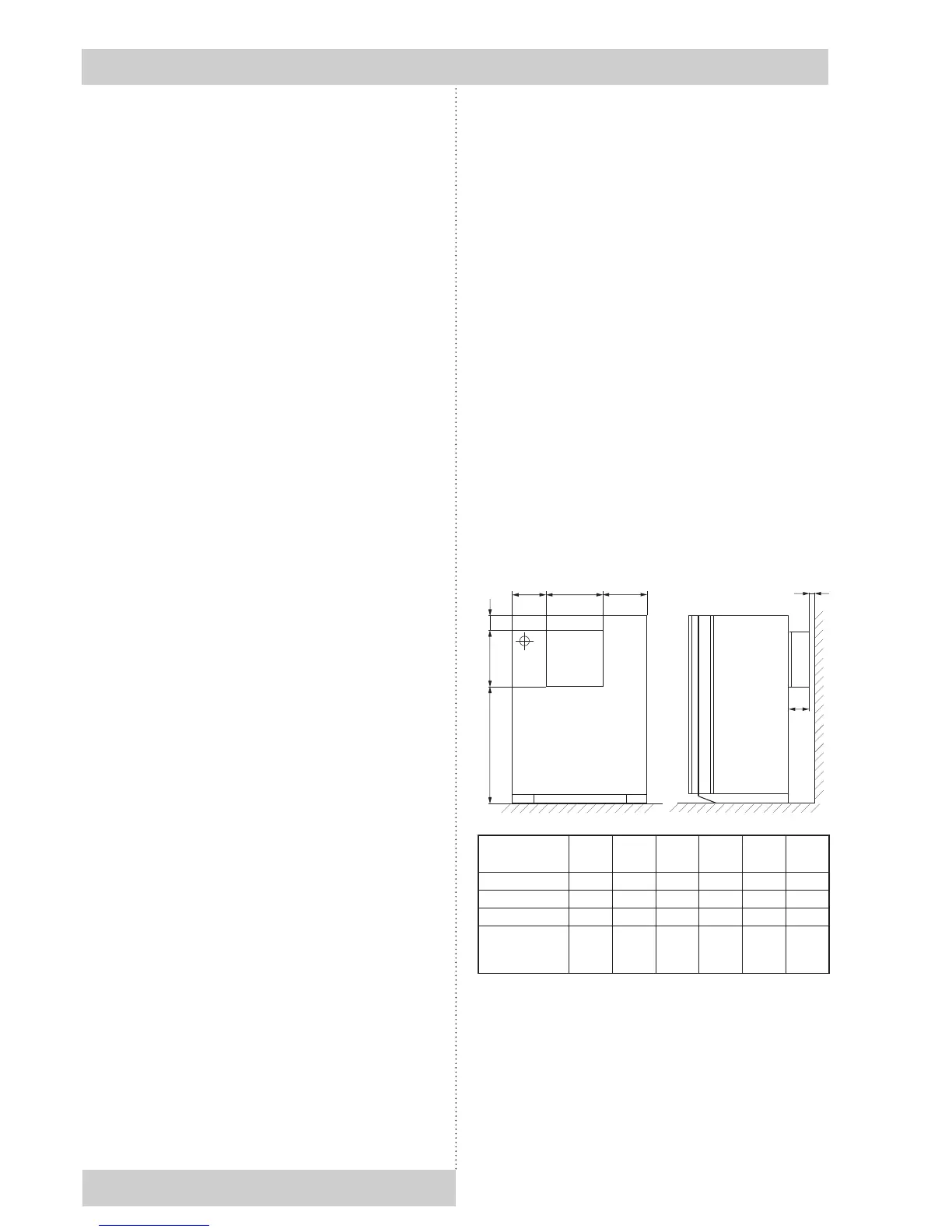

Fig. 3 (dimensions are in mm)
Type →
Dimens.↓
55 111 222 404 707
A (mm) 85 85 85 135 135
B (mm) 290 470 710 1470 1470
C (mm) 50 190 190 190 590
Height
A+B+305
(mm)
680 860 1100 1910 1910
Note: The minimum distance from the lter to the wall
is 50 mm.
The lock is placed on the upper part of door‘s
surface near the closing mechanism.
11.5
100
The independent exible sensor is used for
the material temperature measurement in the
chamber. Up to four sensors can be connected.
The information about the given sensors
temperature is displayed on the position of
time information. Temperature and time are
displayed in turns and the individual sensors
are differentiated from each other by means of
letters.
When printing on the printer, each record
contains more lines. The rst line, starting
with gure 1, displays the temperature on the
regulatory sensor. Subsequent lines, starting with
letters, display the exible sensors temperature.
11.6
SUPPORTIVE SW FOR PC
11.6.1 RECORDING SW
The program WarmComm is designed to record
the temperature course in the ovens/incubators.
Data obtained during the regulation are displayed
in a diagram (with time on the horizontal axis and
measured data on the vertical axis).
The program enables to follow the regulation on-
line, to store the regulation course to a le on a
disc and to view the already stored les, to send
e-mails in case of not receiving data from the
cabinet and to send reports of excessive values
being reached within the specied time interval.
The instructions for the programme use are
supplied with the installation programme.
Hardware requirements: Common PC with an
operational software Windows 2000, XP and
higher. One free port RS 232 (COM) is required
for each connected device. The maximum length
of the connecting cable is 15 m.
11.6.2 RECORDING PRINTING SW -
PRINTER ARCHIVE - FOR PC UNDER
WINDOWS
The Printer Archive programme serves for text
recording from the device print outlet. It serves
as a direct substitution of a physical printer.
The data are recorded to a le on a PC disc
and the programme offers more possibilities of
the recorded data handling including archiving
or printing on a table PC printer. Hardware
Instructions for use
28 LSI_K_np_en 1206_mmm_V2.08_B2V
B
305
A
