MMM Group venticell 404 - Enticell 404;2

parameters. The case can be placed on the oor
or on an individual customer´s support.
11.13.2
VENTICELL
404/2
- INSTALLATION DATA
1) Input power 5500 W
2) Electrical installation – connection of the unit:
– plug VDE 0623, DIN 4962/63in, CEE 17,
IEC 309, 3P + N + PE, 16A/380-415 VAC
– supply to the socket from the switchboard
5x2.5 mm
2
Cu, protection by circuit breaker
16 A – place near the unit
– cable length 3 m
3) Heat emission at 200 °C: 1900 W
4) Weight: 160 kg

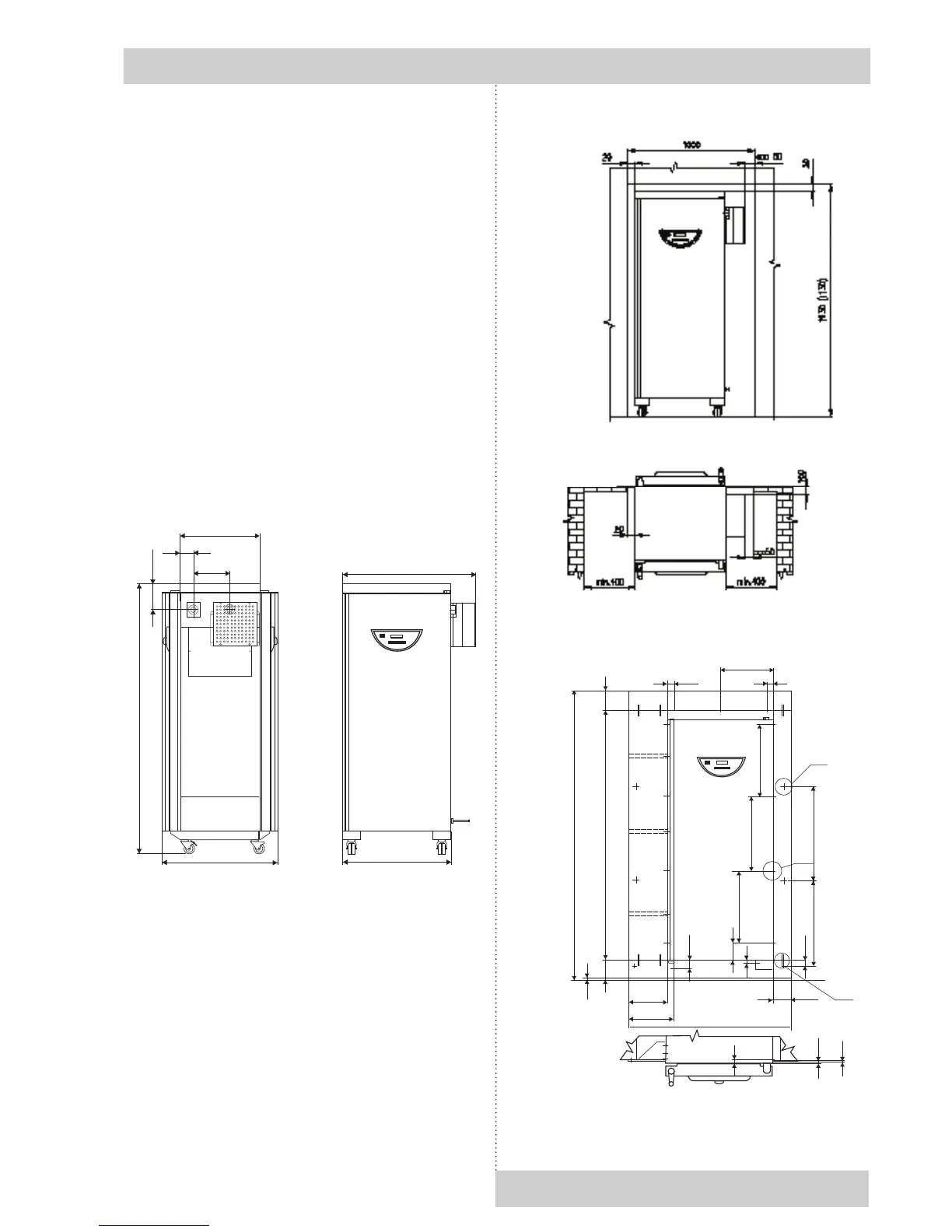

THE MAIN DIMENSIONS ARE FOR THE TWO-
DOOR VENTICELL 404;
THE DIFFERENT DATA IN BRACKETS APPLY TO
THE TWO-DOOR VENTICELL 222
Instructions for use
LSI_K_np_en 1206_mmm_V2.08_B2V 31
760
930
554
92
234
182
1910 (1110)
806
"ČISTÁ STRANA"
ŠPINAVÁ STRANA"
„UNLOADING SIDE“ „LOADING SIDE“
krycí plechy
380
20
20
A
100
515 (X)
515 (423)
620 (691)
620 (334)
515 (423)
100,5 (99)
1746 (1046)
66 (50)
46
34
2001 (1206)
5 (4)
155 (60)
C
B
100
240
312(310)
1100
10(7)
18(15)
8
cover sheets
