22
8-504.11
DIMENSIONS
Large Chassis: Chilled Water Units

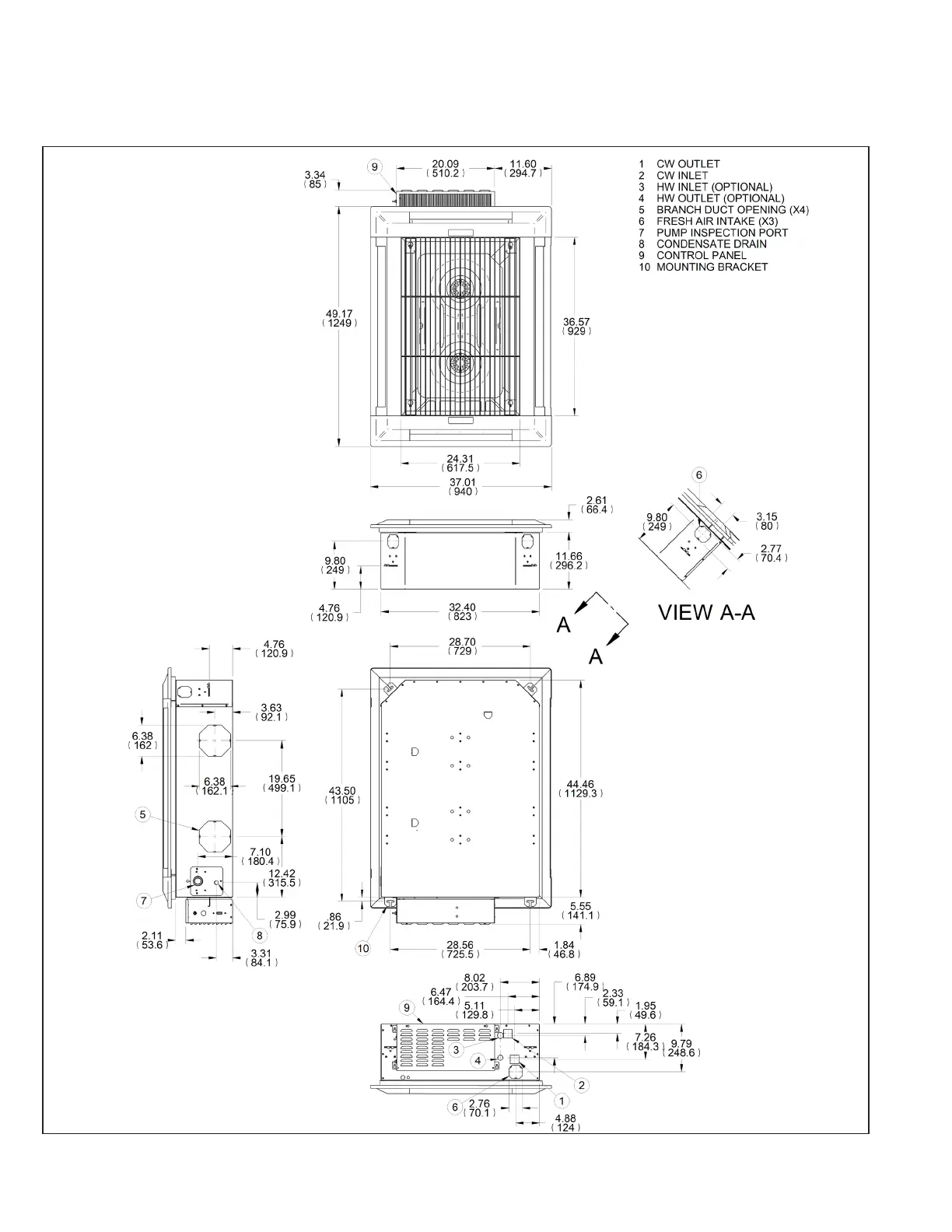

Figure 22.1 - Dimensions – Large Chassis: Chilled Water Units – Size 33 and 36
1. Dimensions shown are inches (mm)
