24
8-504.11
DIMENSIONS
Large Chassis: DX and Heat Pump units

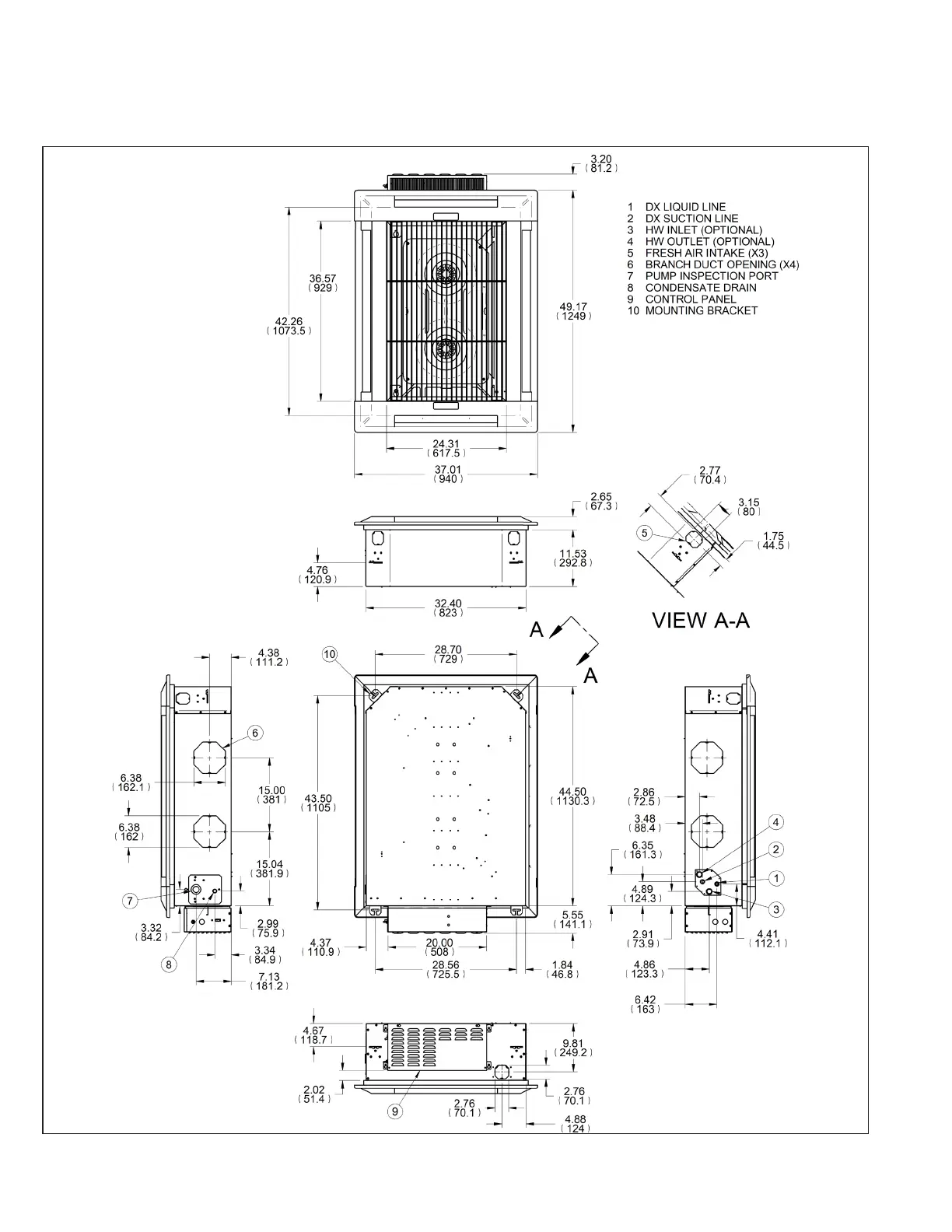

Figure 24.1 - Dimensions – Large Chassis: DX and Heat Pump units – Size 30, 36, and 42
1. Dimensions shown are inches (mm)
