EXPLODED UNIT DRAWING & PARTS LIST – DX & HEAT PUMP

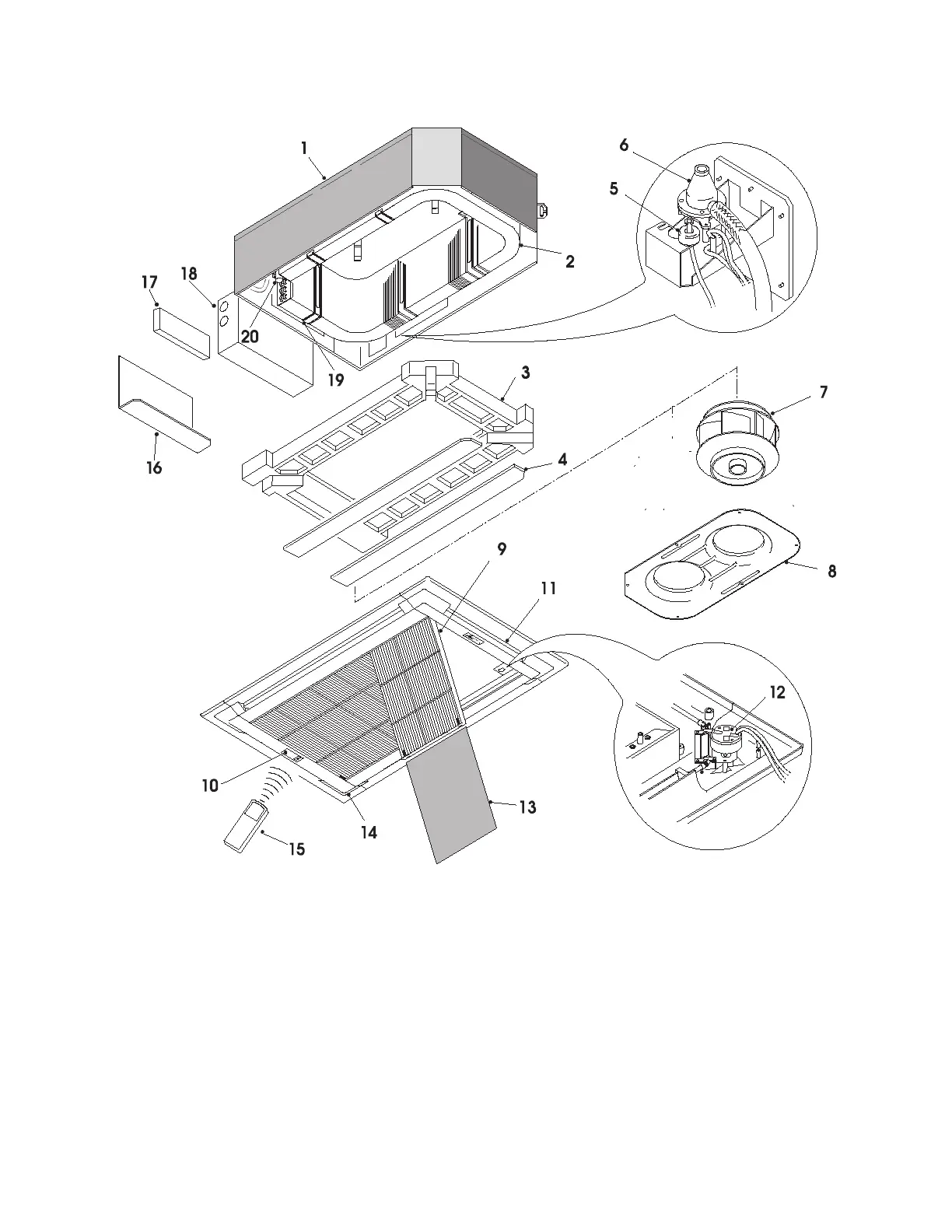

Figure 31.1 - Exploded Unit Drawing & Parts List – DX and Heat Pump – Sizes 18 through 42
1. Cassette Chassis
2. Evaporator Coil
3. Condensate Tray
4. Condensate Tray Support
5. High Level Switch (Shown Inverted)
6. Condensate Pump (Shown Inverted)
7. Fan & Motor Assembly
8. Fan Inlet Ring
9. Grille
10. Infrared Receiver
(Microprocessor Only
–
Digit 8 = M)
11. Vane
12. Vane Motor Assembly
13. Filter
14. Fascia
15. Remote Handset
(Microprocessor Only – Digit 8 = M)
16. Control Box Lid
17. Control Box PCB
(Microprocessor Only – Digit 8 = M)
18. Control Box
19. Coil Bracket
20. Expansion Valve
