Moduline CVE031E - Installation Instructions; Technical Data; Technical Installation Diagram

5
USA Ed. 0215
2 • INSTALLATION INSTRUCTIONS
2.1 - TECHNICAL DATA
INSTALLATION
Model Type
Rated
voltage
[VAC]
Total
power con-
sumption
[kW]
Con-
sumption
[A]
Cable according to IEC-
60245-57 (H05RN-F
or HO7RN-F).
Minimum cross section
of connection cable (mm
2
)
[Awg]
Water pres-
sure (kPa)
[Psi]
CVE031E CVE031E 3 - 208
60 HZ
15,5 43
4 x 2,5
[4 x 13 Awg]
150 ÷ 500
[21.7 ÷ 72.5]
Model Type Tray capacity
Maximum product
load (kg) [lb] for a
h65 GN1/1 tray
Maximum total
load of food (kg)
[lb] + tray (kg) [lb]
Weight when
empty (kg) [lb]
CVE031E CVE031E
3 GN 1/1
3,6
[ 7.9]
10,8 + 4,5
[23.8 + 9.9]
110
[242]
Model Type
Operating tempera-
ture in the cooking
chamber (°C)[°F]
Maximum boiler
pressure (kPa) [Psi]
Maximum pressu-
re in the cooking
chamber (kPa) [Psi]
Tray capacity:
distance [mm]
CVE031E CVE031E
50°÷122°C
[122°÷251°]
1500
[217]
1200
[174]
3 x GN1/1 (h80)

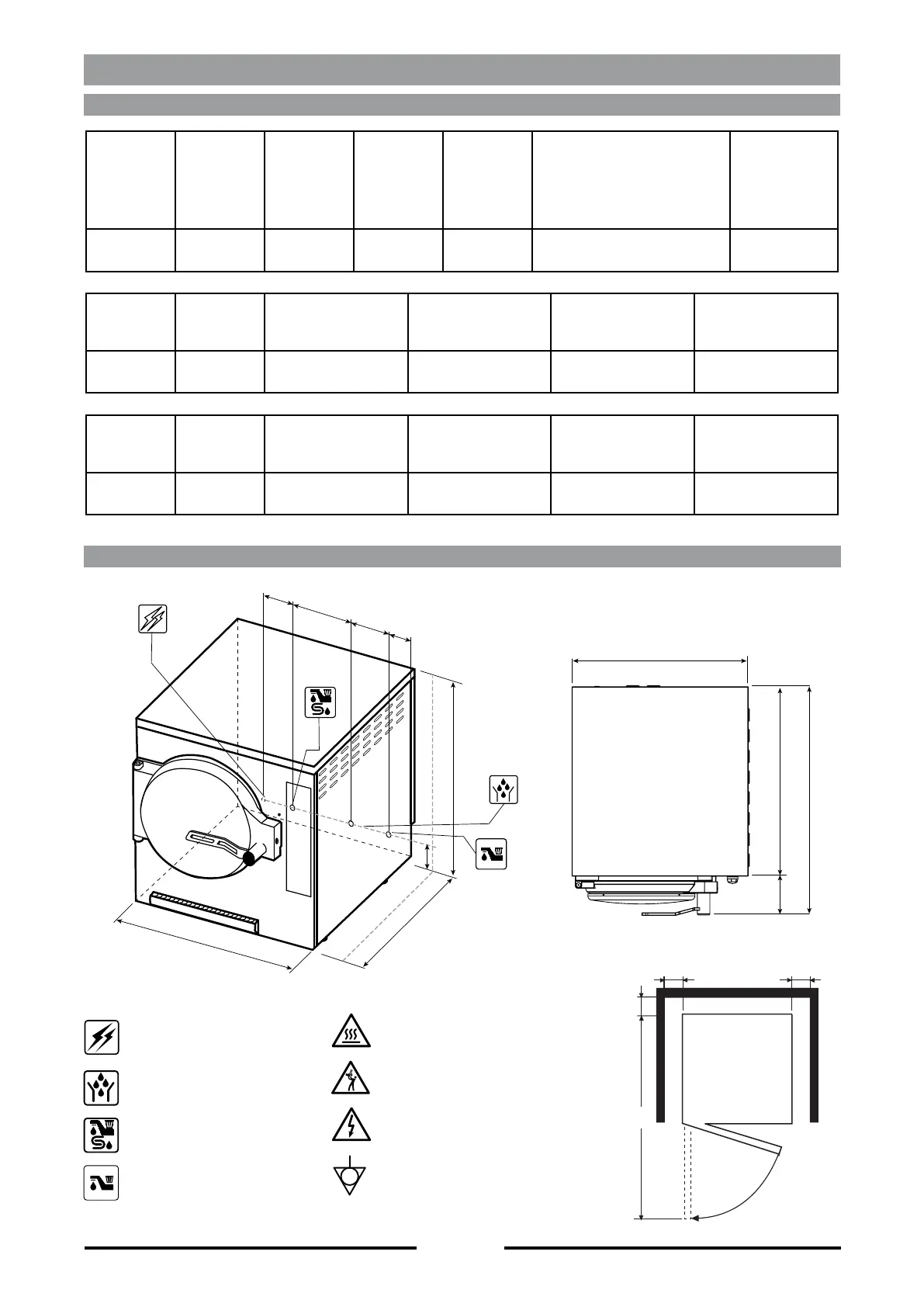

2.1.2 - TECHNICAL INSTALLATION DIAGRAM
Chamber drain
Softened water inlet
Water inlet
Electricity supply
cable inlet



Equipotential terminal
28.7”
29.5”
2.6”
7.1”
9.4”
3.5”
26.8”
34.8”
28.7”
26.8”
6.1”
4.7”
3.9 3.9
3.9
X
