-31-
Revision 2/F3509
Retaining
Angles

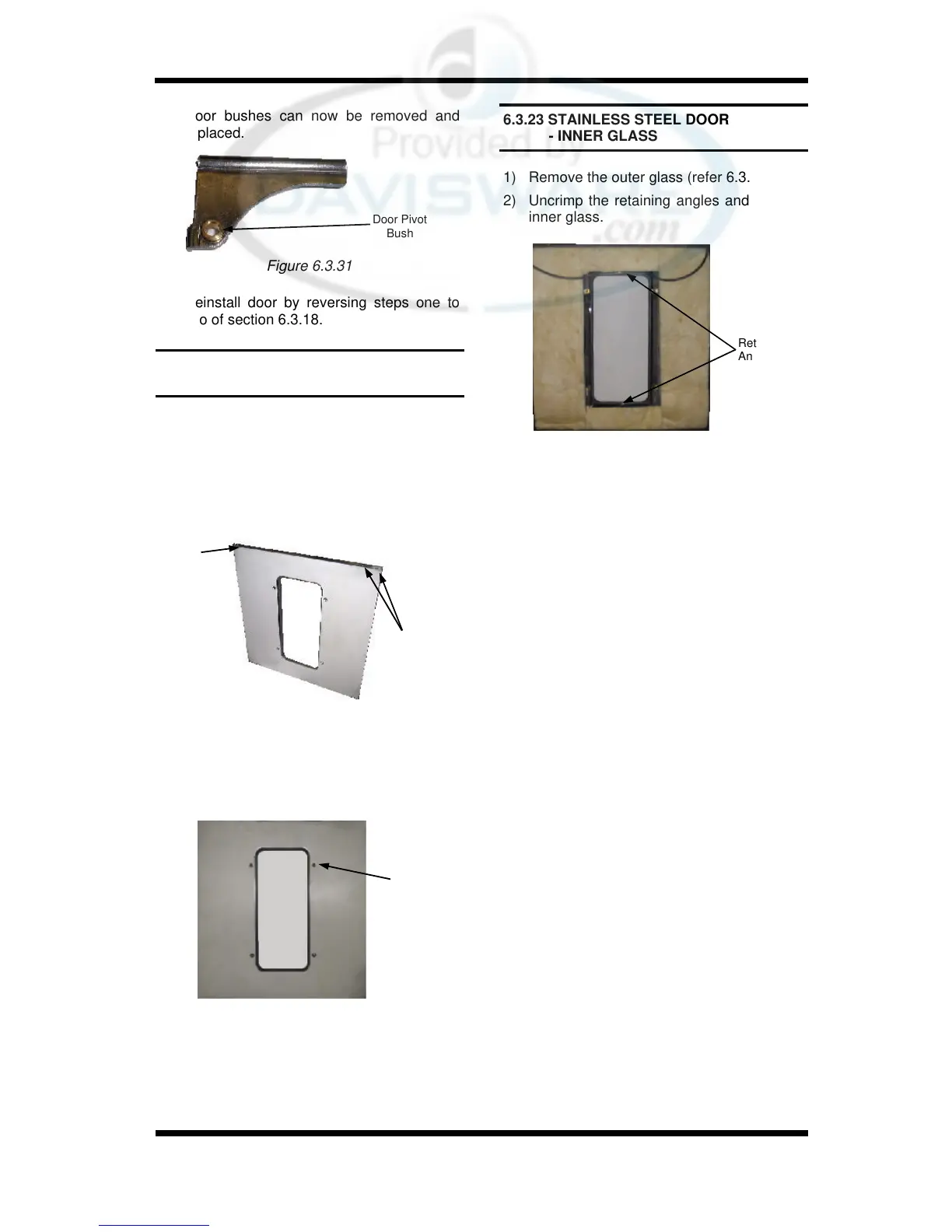

Figure 6.3.31
Door Pivot
Bush
3) Door bushes can now be removed and
replaced.
4) Reinstall door by reversing steps one to
two of section 6.3.18.
6.3.22 STAINLESS STEEL DOOR
- OUTER GLASS
1) Remove the door and door handle as per
steps one, two and three of section
6.3.18.
2) Remove the pivot (two screws), and the
two securing screws from the top and bot-
tom of the door.
3) Remove the four window screws. The
stainless steel door outer can now be
removed.
Figure 6.3.32
Pivot (Two
Screws)
Two
Screws
Figure 6.3.33
Window
Screws (4)
4) To replace the outer glass, simply remove
and replace, taking care that the outer
seals are positioned correctly around the
glass edge. Reassemble in reverse order.
1) Remove the outer glass (refer 6.3.22).
2) Uncrimp the retaining angles and remove
inner glass.
6.3.23 STAINLESS STEEL DOOR
- INNER GLASS
Figure 6.3.34
3) Replace with new glass and re-assemble
door.
4) Refit door to the oven.
