Moffat Turbofan E32 - Adjustment; Calibration

-32-
Revision 2/F3509
5) Carefully remove two screws holding fan
switch to thermostat.
HINT: Tape fan switch assembly together
before removal to prevent it from
springing apart.
7) Adjust the calibration nut located at the
base of the thermostat shaft.
To increase oven temperature, turn
calibration nut anticlockwise.
To decrease oven temperature, turn
calibration nut clockwise.
Adjustment of the calibration nut by 1°
angular will alter oven temperature by
approximately 2°C (3.6°F).
8) Reassemble fan switch onto thermostat
and fit assembly back onto control panel.
9) Turn on power and recheck oven
thermostat calibration.
10) Repeat procedure if necessary.
Screws
Fan Switch
Figure 6.4.4
Figure 6.4.5
Calibration Nut
Figure 6.4.3
Thermostat
Thermostat Shaft
Fan Switch
IMPORTANT: IF THE OVEN
TEMPERATURE NEEDS TO BE
INCREASED, ENSURE THAT THE
THERMOSTAT IS IN THE ‘OFF’ POSITION
BEFORE CARRYING OUT ADJUSTMENT.
IF OVEN TEMPERATURE NEEDS TO BE
DECREASED, ENSURE THERMOSTAT IS
IN THE ‘MAX’ TEMPERATURE POSITION
BEFORE CARRYING OUT ANY
ADJUSTMENT.
1) Turn off power.
2) Remove thermostat knob by pulling it
firmly away from control panel.
3) Open control panel (refer 6.2.1). Remove
two screws on control panel holding ther-
mostat.
4) The thermostat can now be removed.
Figure 6.4.2
Screws
Calibration Nut
Thermostat
Figure 6.4.1

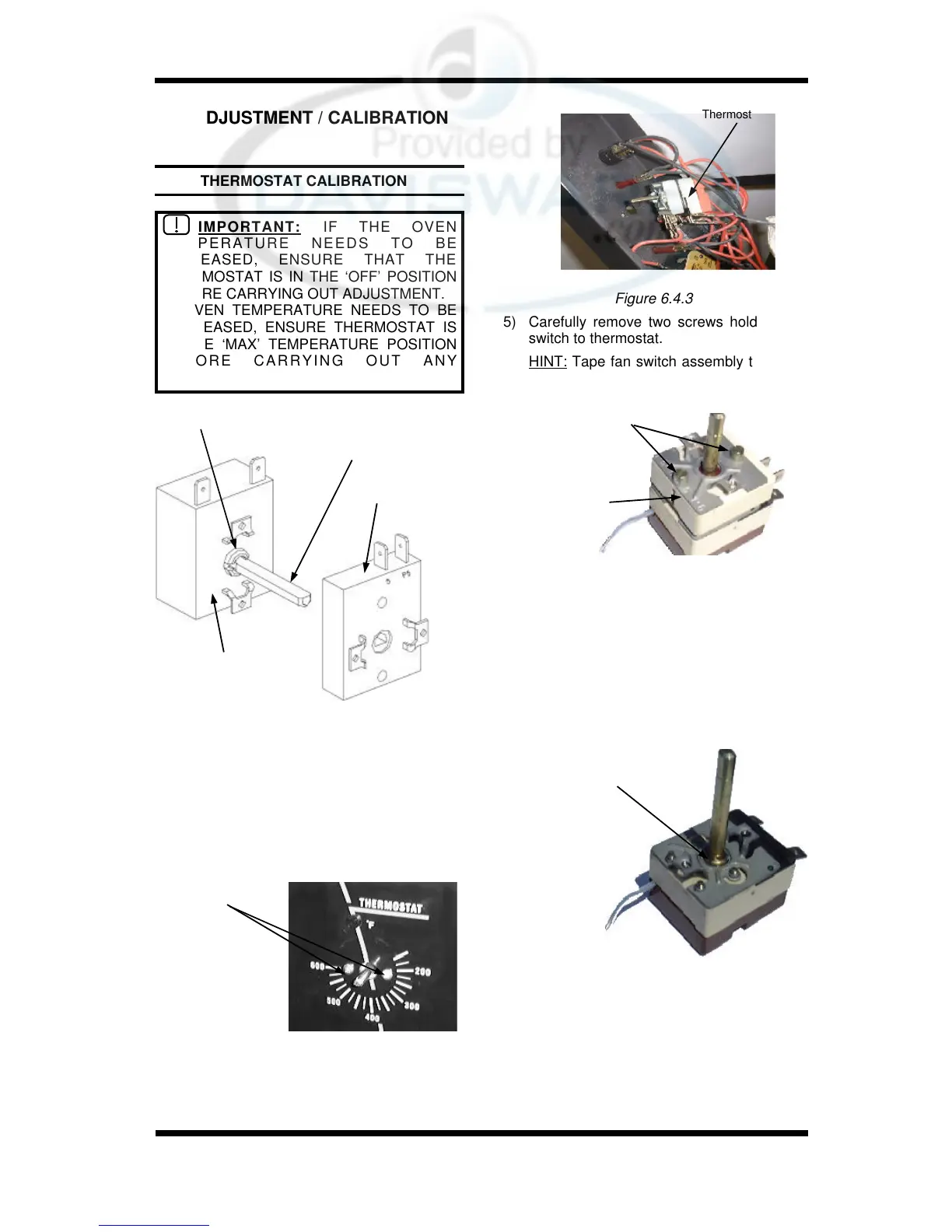

6.4.1 THERMOSTAT CALIBRATION
6.4 ADJUSTMENT / CALIBRATION
