-39-
Revision 2/F3509

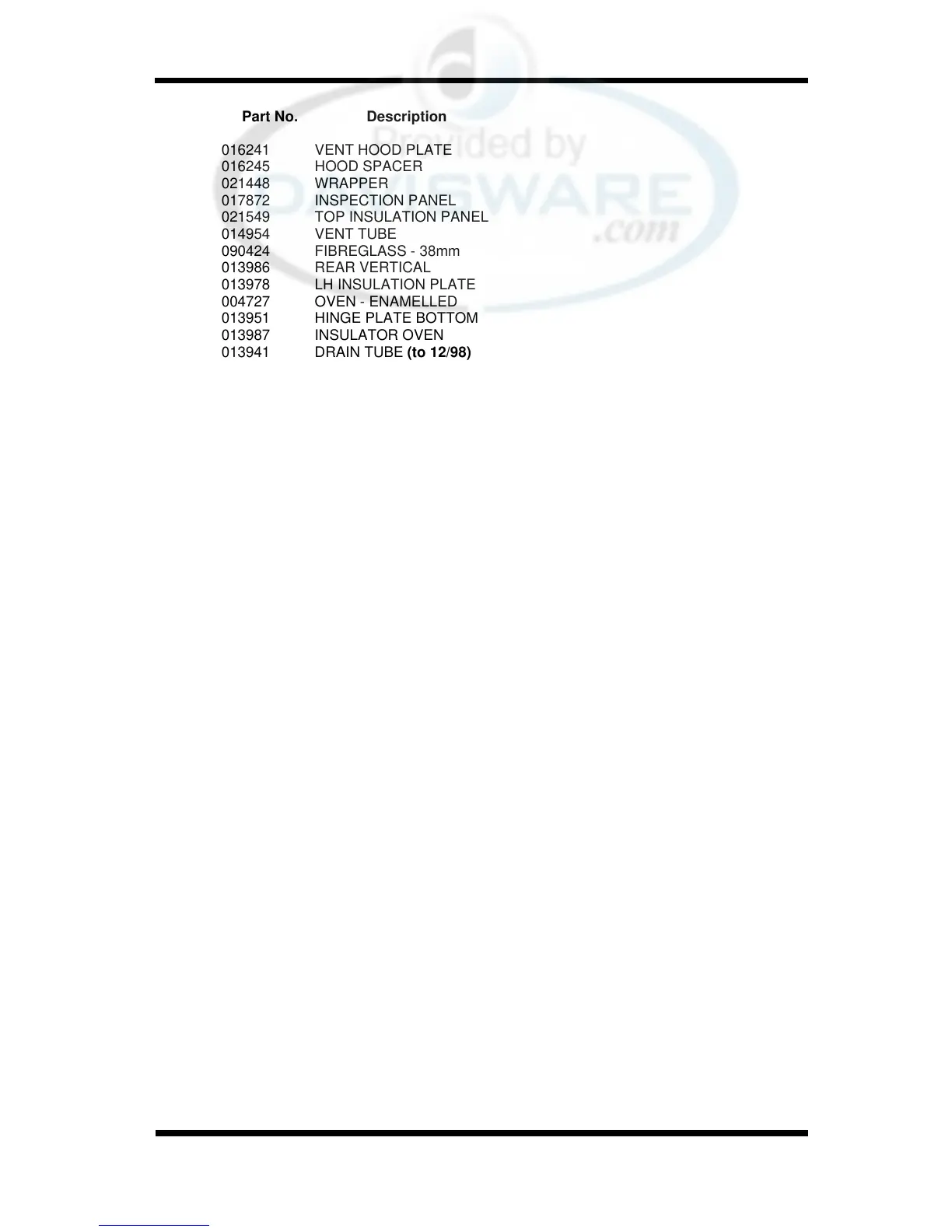

Pos Part No. Description
1 016241 VENT HOOD PLATE
2 016245 HOOD SPACER
3 021448 WRAPPER
4 017872 INSPECTION PANEL
5 021549 TOP INSULATION PANEL
6 014954 VENT TUBE
7 090424 FIBREGLASS - 38mm
8 013986 REAR VERTICAL
9 013978 LH INSULATION PLATE
10 004727 OVEN - ENAMELLED
11 013951 HINGE PLATE BOTTOM
12 013987 INSULATOR OVEN
13 013941 DRAIN TUBE (to 12/98)
14 002247 DRAIN PLUG (to 12/98)
15 015597 FAN
16 013974 PHIAL GUARD
17 015360 ELEMENT ASSEMBLY 220V
015363 ELEMENT ASSEMBLY 240V
18 015581 ELEMENT BRACKET
19 013520 OVEN LIGHT ASSY
003434 SILK GASKET
013521 LAMP - 40W
003002 LIGHT GLASS
20 013967 SIDE INSULATION PANEL
21 013965 MOTOR MOUNTING PLATE
22 013431 MOTOR
23 021172 HEAT BLOCK PLATE
24 021467 CATCH PLATE
25 013893 DOOR SPRING CATCH
26 021173 FRONT VERTICAL
27 021534 RELAY
28 003004 MICROSWITCH
29 013977 INSULATOR
30 015966 CONTACTOR
31 021636 MICROSWITCH BRACKET
32 013610 DOOR BUSH
33 021637 MICROSWITCH BUTTON
34 014031 OVEN BAFFLE STUD
35 015656 FAN BAFFLE
36 015168 OVEN RACK
37 041405 SCREW
38 015575 SIDE RACK LH
39 015930 BAFFLE LOCATING BRACKET
40 021517 HORIZONTAL SEAL ASSEMBLY
021519 HORIZONTAL SEAL - 0.52M
41 021520 VERTICAL OVEN SEAL ASSEMBLY
021522 VERTICAL SEAL - 0.55M
42 020082 TOP HINGE ASSEMBLY
017905 BUSH
43 021532 DOOR TRIM
44 004725 DOOR INNER ENAMELLED
45 021466 DOOR HANDLE BRACKET
46 021468 HANDLE
47 021441 CONTROL PANEL MOUNTING BRACKET
48 CONTROL PANEL (REFER SECTION 11.2)
49 020083 BOTTOM HINGE ASSEMBLY
017905 BUSH
To Next Page
