-6-
Revision 2/F3509

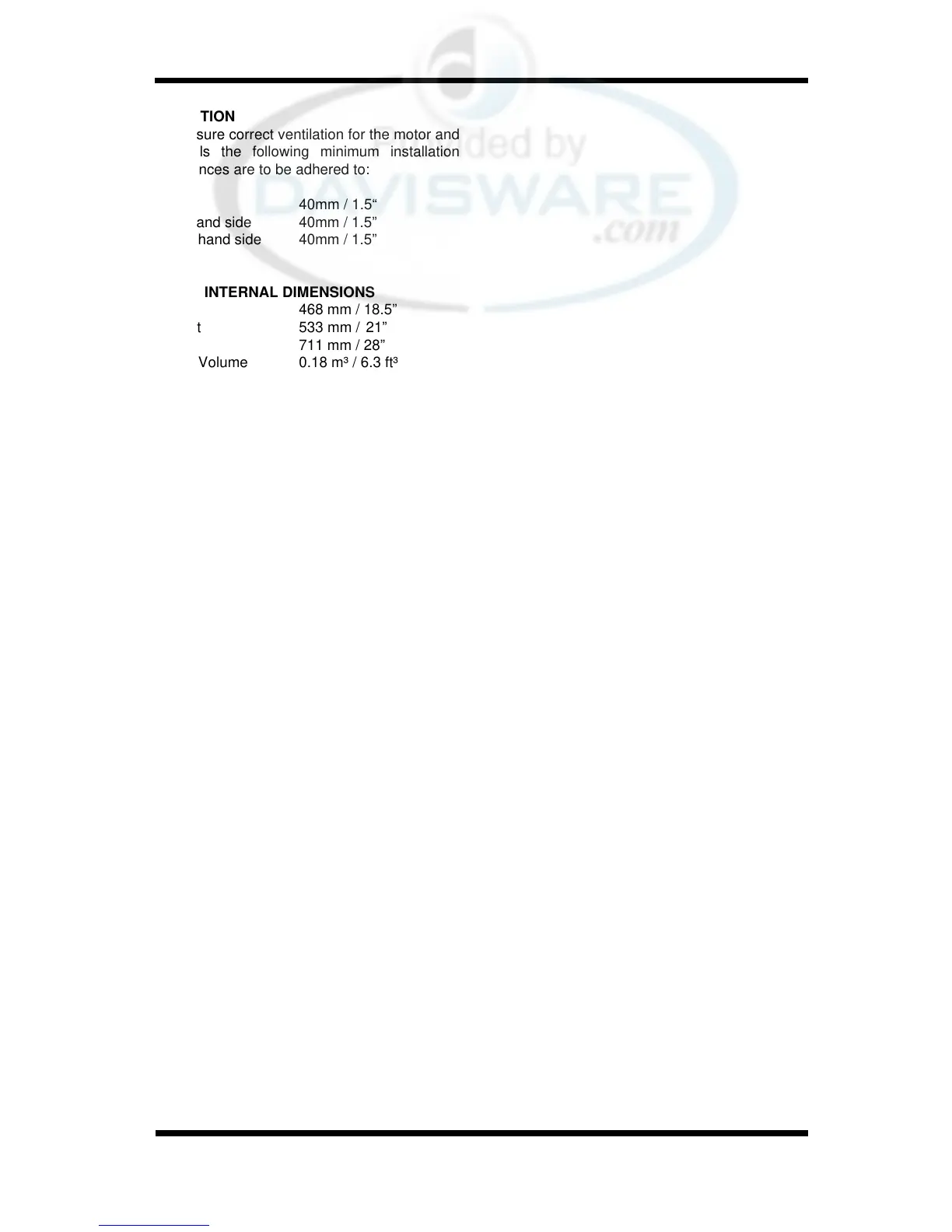

LOCATION
To ensure correct ventilation for the motor and
controls the following minimum installation
clearances are to be adhered to:
Rear 40mm / 1.5“
Left-hand side 40mm / 1.5”
Right-hand side 40mm / 1.5”
OVEN INTERNAL DIMENSIONS
Width 468 mm / 18.5”
Height 533 mm / 21”
Depth 711 mm / 28”
Oven Volume 0.18 m³ / 6.3 ft³
OVEN RACK SIZE
Width: 460 mm / 18”
Depth: 660 mm / 26”
No of rack positions: 4
Rack position spacing: 125 mm / 5”
ELECTRICAL SUPPLY SPECIFICATION
OPTIONS
208 V AC 60 Hz, 28.8 A , 6.0 kW@ 208 V
220-240 V AC 60 Hz, 27.8 A, 6.7 kW @ 240 V
208-220 V AC 50 Hz, 28.8 A, 6.0 kW @ 208 V
230-240 V AC 50 Hz, 27.8 A, 6.7 kW @ 240 V
ELECTRICAL CONNECTION WIRE
CONDUCTOR SIZES
Minimum: 4mm² / 16 AWG
WATER SUPPLY CONNECTION
Max Pressure 550 kPa / 5.5 bar / 80 psi
Min Pressure 100 kPa / 1.0 bar / 15 psi
