3.4 Inputs and Outputs
RS03/06-S/Q inputs and outputs include:
• 4 optically isolated digital inputs, with adjustable bandwidth digital noise rejection filter,
5-24VDC
• 3 optically isolated digital outputs, max 30V/100mA
J4
STEP-
DIR-
X4
XCOM
Y1-
Y2-
Y3-
STEP+
DIR+
X3
Shield
Y1+
Y2+
Y3+
1
3
5
7
9
11
13
2
4
6
8
10
12
14

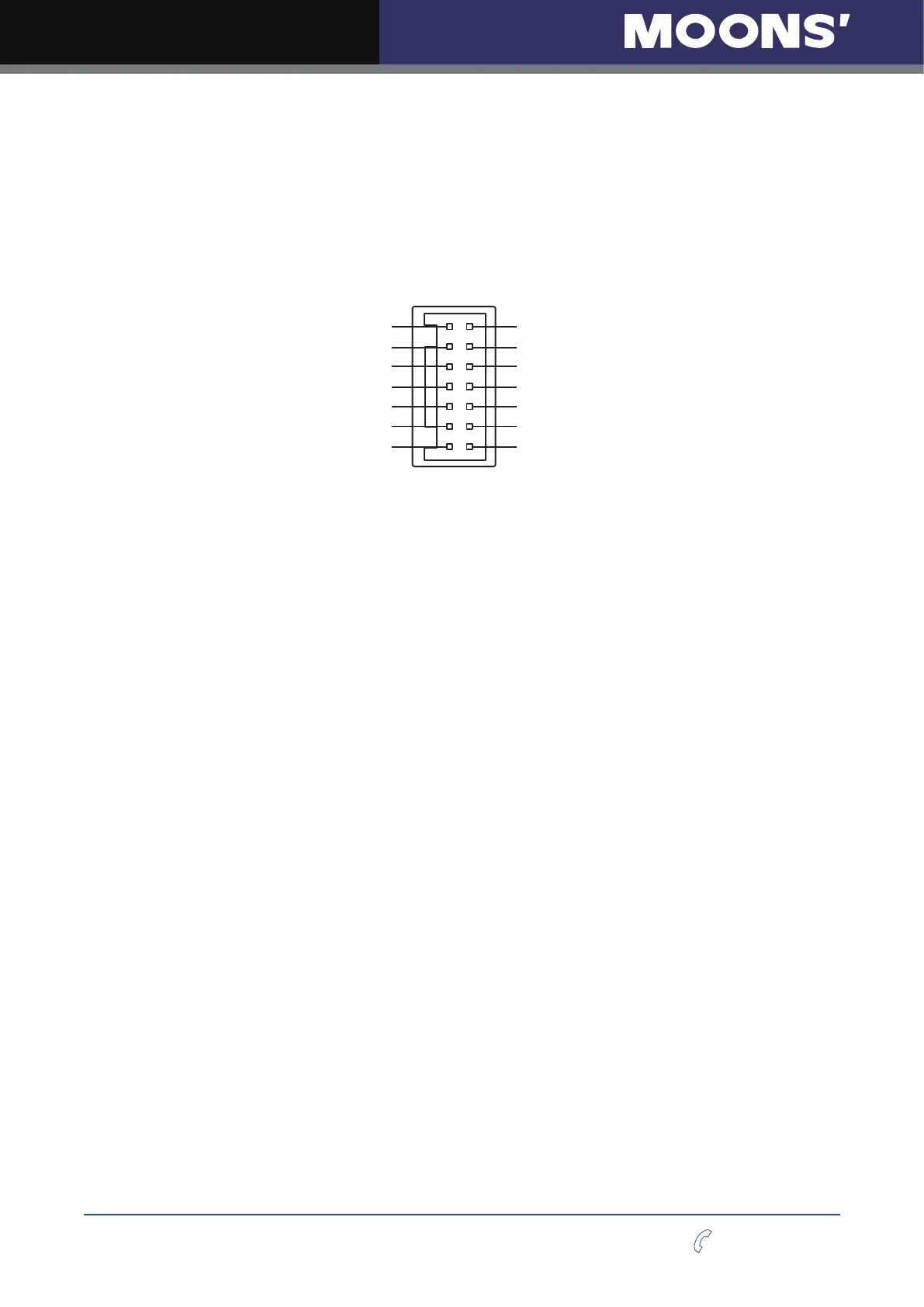

I/O Connector Diagram
