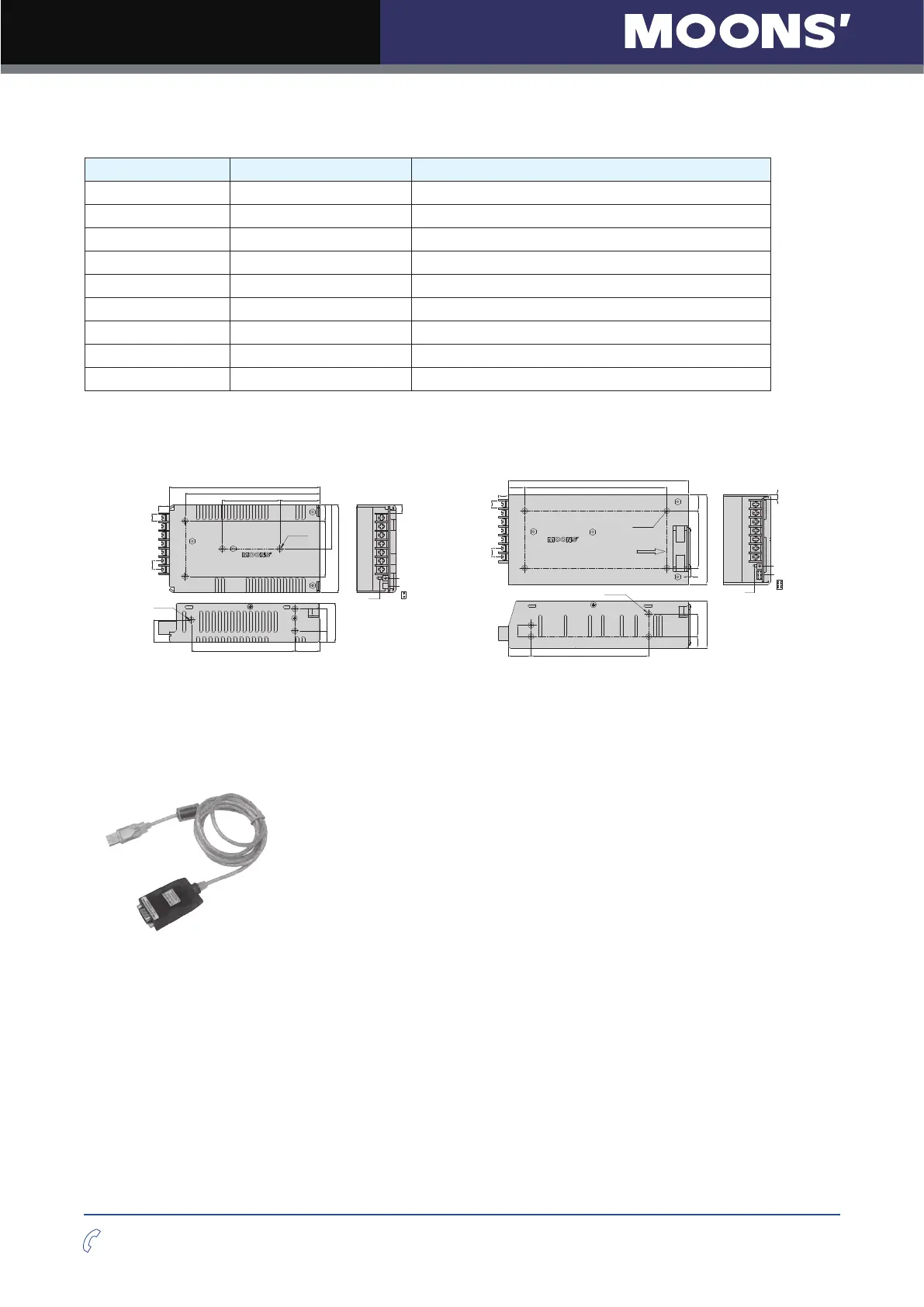

6. Optional Accessories (Sold separately)
P/N Catagory Technical Specification
MF150A24AG-V
Switching Power Supply
150W, 24V
MF320A48AG-V
Switching Power Supply
320W, 48V
RC880
Regenaration Clamp
80VDC Max. 50W
MS-USB-RS232-01
USB Converter
USB-RS232
1108-□□□
Cable I/O Cable（for RS-S/Q drives）
2103-□□□
Cable
Motor Extension Cable for AM17/23/24RS motor
2109-□□□
Cable
Motor Extension Cable for AM11RS motor
2116-□□□
Cable
Encoder Extension Cable for AM17/23/24RS motor
2118-□□□
Cable
Encoder Extension Cable for AM11RS motor
Switching Power Supplier
MOONS' recommend to use following switching power supplies
P/N:MF150A24AG-V
150W,24VDC
P/N:MF320A48AG-V
320W,48VDC
11.5MAX
3-M4 L=4mm
LED
V ADJ.
CN3
9
1
2
3
4
5
6
7
25
117 28
12.5
25
44
170
152
65 45
4-M4 L=4mm
89.5
49.5
1863
99
2
1
5 4
8 1
199
157
4-M4 L=4mm
Air flow direction
FAN
4MAX
18
11.5MAX
8
63 99
18
5
V ADJ.
CN3
LED
1
2
3
4
5
6
7
9.5
4-M4 L=4mm
12.5
25 130
52
25
12.5
USB Converter
Model: MS-USB-RS232-01
Description: USB-RS232 converter
