SRX04 Hardware Manual

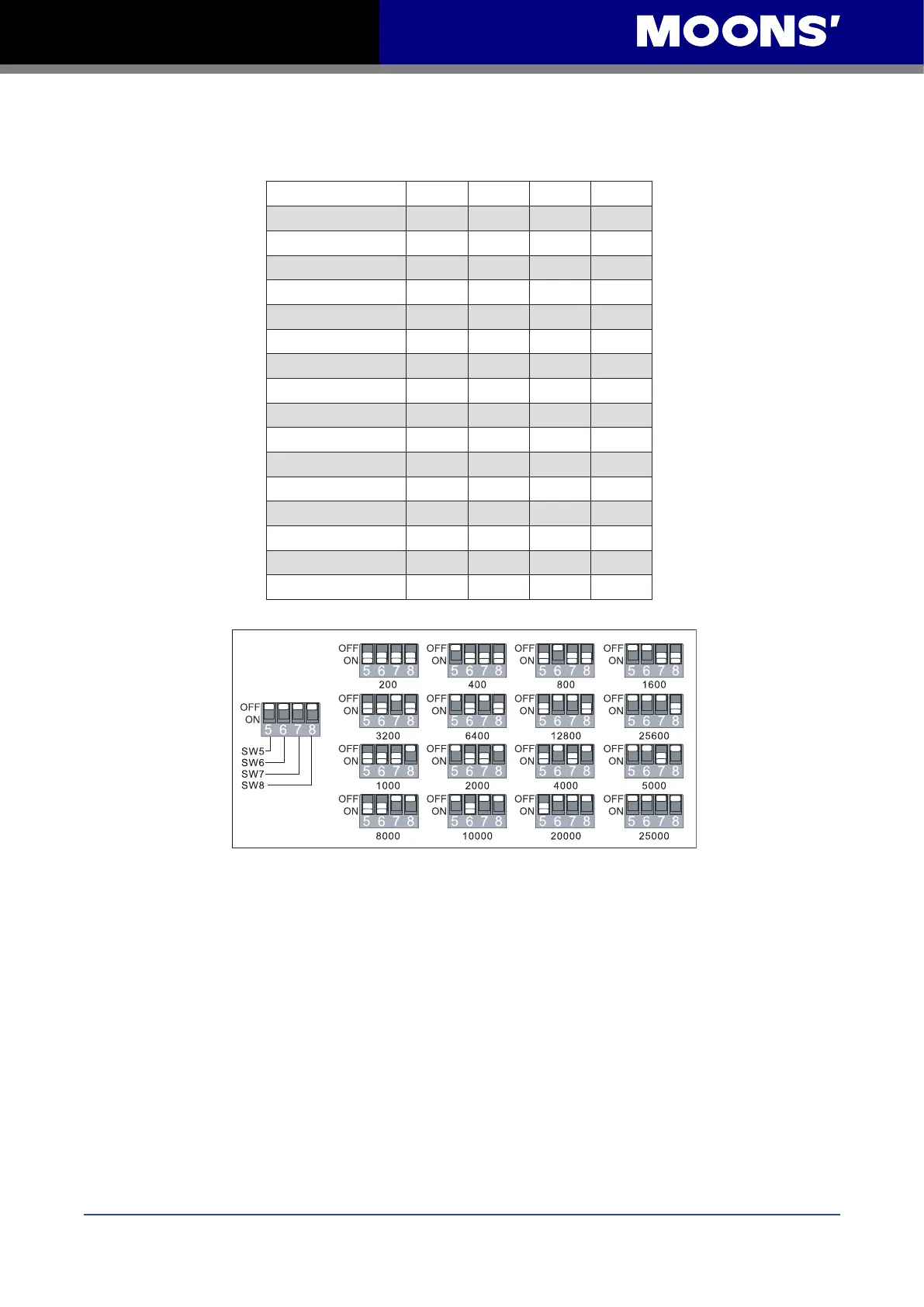

7.3 Microstepping
The microstep resolution is set by the SW5, SW6, SW7 and SW8 switches. There are 16 settings.
Microstep(steps/rev) SW5 SW6 SW7 SW8
200 ON ON ON ON
400 OFF ON ON ON
800 ON OFF ON ON
1600 OFF OFF ON ON
3200 ON ON OFF ON
6400 OFF ON OFF ON
12800 ON OFF OFF ON
25600 OFF OFF OFF ON
1000 ON ON ON OFF
2000 OFF ON ON OFF
4000 ON OFF ON OFF
5000 OFF OFF ON OFF
8000 ON ON OFF OFF
10000 OFF ON OFF OFF
20000 ON OFF OFF OFF
25000 OFF OFF OFF OFF
7.4 Self Test
Setting switch SW9 to ON after the drive is powered up will cause the drive to perform a self-test
move of 2 revolutions both CW and CCW at 1rps. Setting switch SW9 to OFF disable this feature.
