SRX04 Hardware Manual

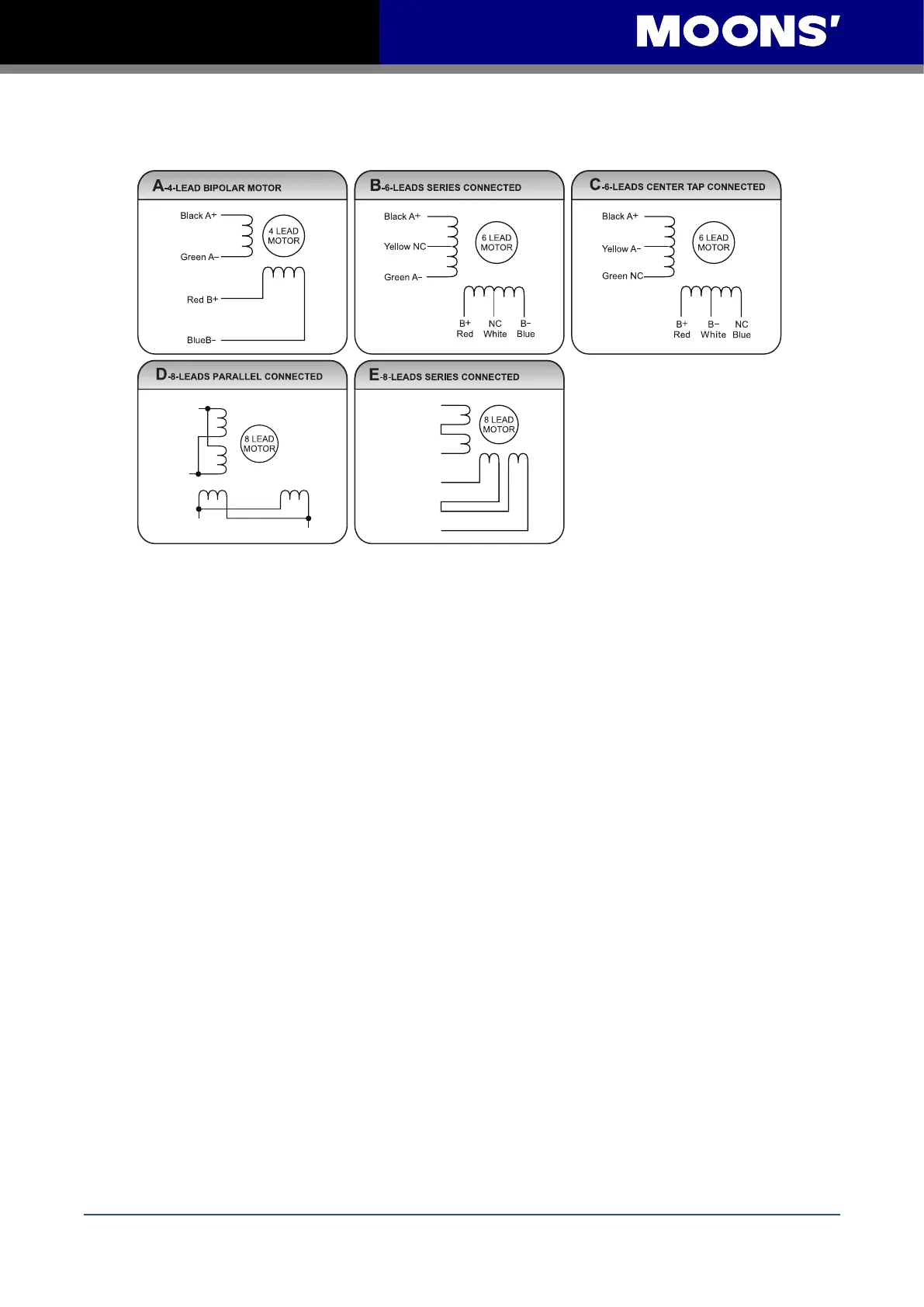

5.2 Connecting to a Motor
White
Green
A
C
B
D
Brown
Yellow
Gray
Blue
Red
Pink
A
Brown
Green
Pink
Blue
White
C
Yellow
D
Red
B
Gray
WARNING:
Please power off the drive before connect the motor to the drive. Confirm the motor wind-
ings don’t short with some other things. When the drive is power on, don’t disconnect
the motor. Don’t connect the motor wires on the ground or power supply directly.
4 wires motor only has one connection method.
8 wires motor has two connection methods: series and parallel. In series, the motor can offer more
torque at low speed. But please notice the running current to avoid the heating problem. In paral-
lel, the motor can offer more torque at high speed.
