SRX04 Hardware Manual

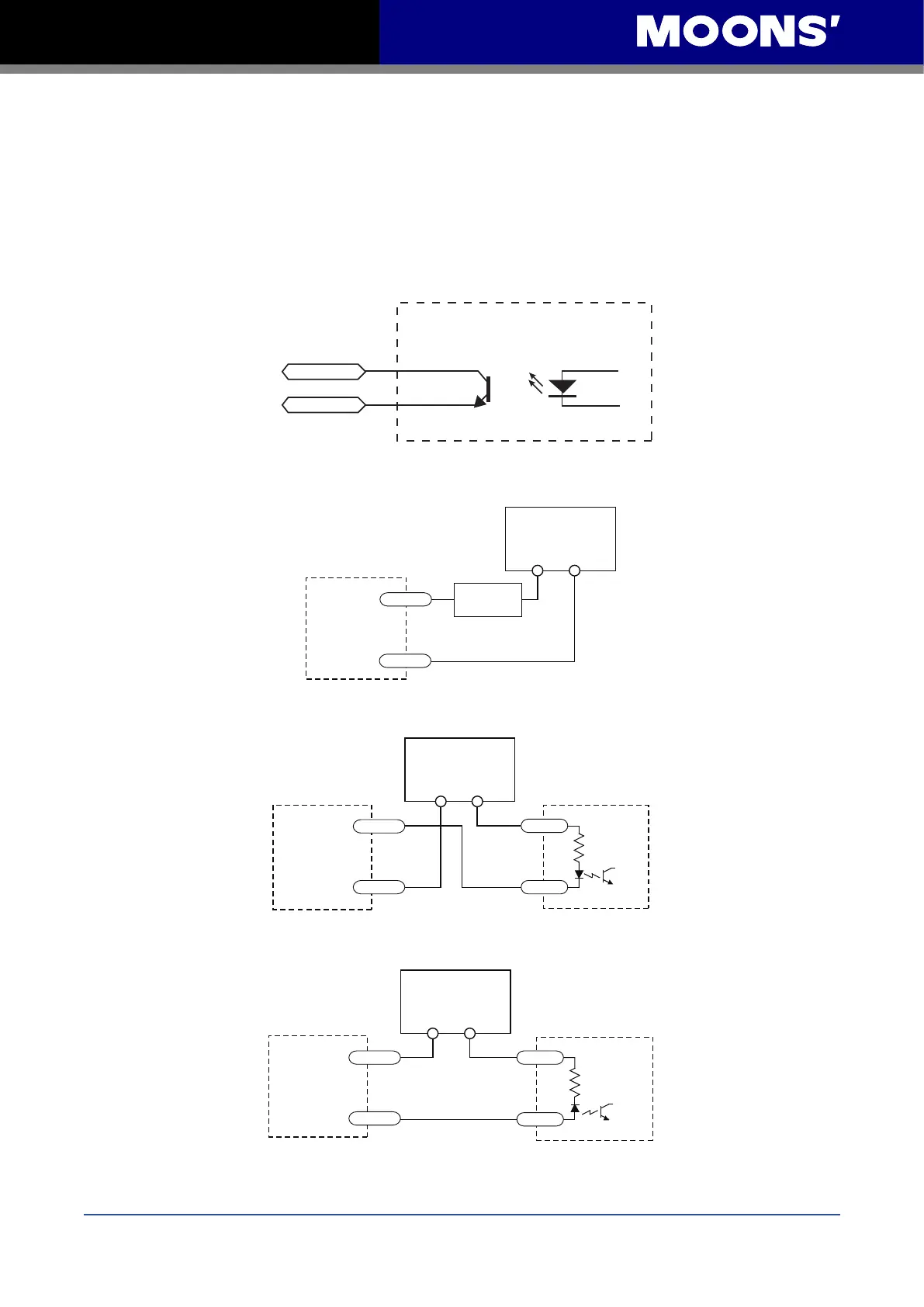

5.3.3 Fault Output
The FAULT Output is optically isolated. The maximum collector current is 100mA, and the maxi-
mum collector to emitter voltage is 30 volts. The output can be wired to sink or source current.
NOTE：
When drive is working normally, the output is open.
When the drive encounters an error, the output closes.
SRX04 Driver
4
1
23
OUT+
OUT-
Output connects examples
Connecting a sinking output
Connecting a sourcing output with PLC’s input
Connecting a sinking output with PLC’s input
PLC
+
–
COM
IN
SRX04
5-24VDC
Power Supply
OUT-
OUT+
+ –
IN
COM
PLC
SRX04
5-24VDC
Power Supply
OUT-
OUT+
+ –
OUT-
OUT+
SRX04
5-24VDC
Power Supply
Load
