SRX04 Hardware Manual

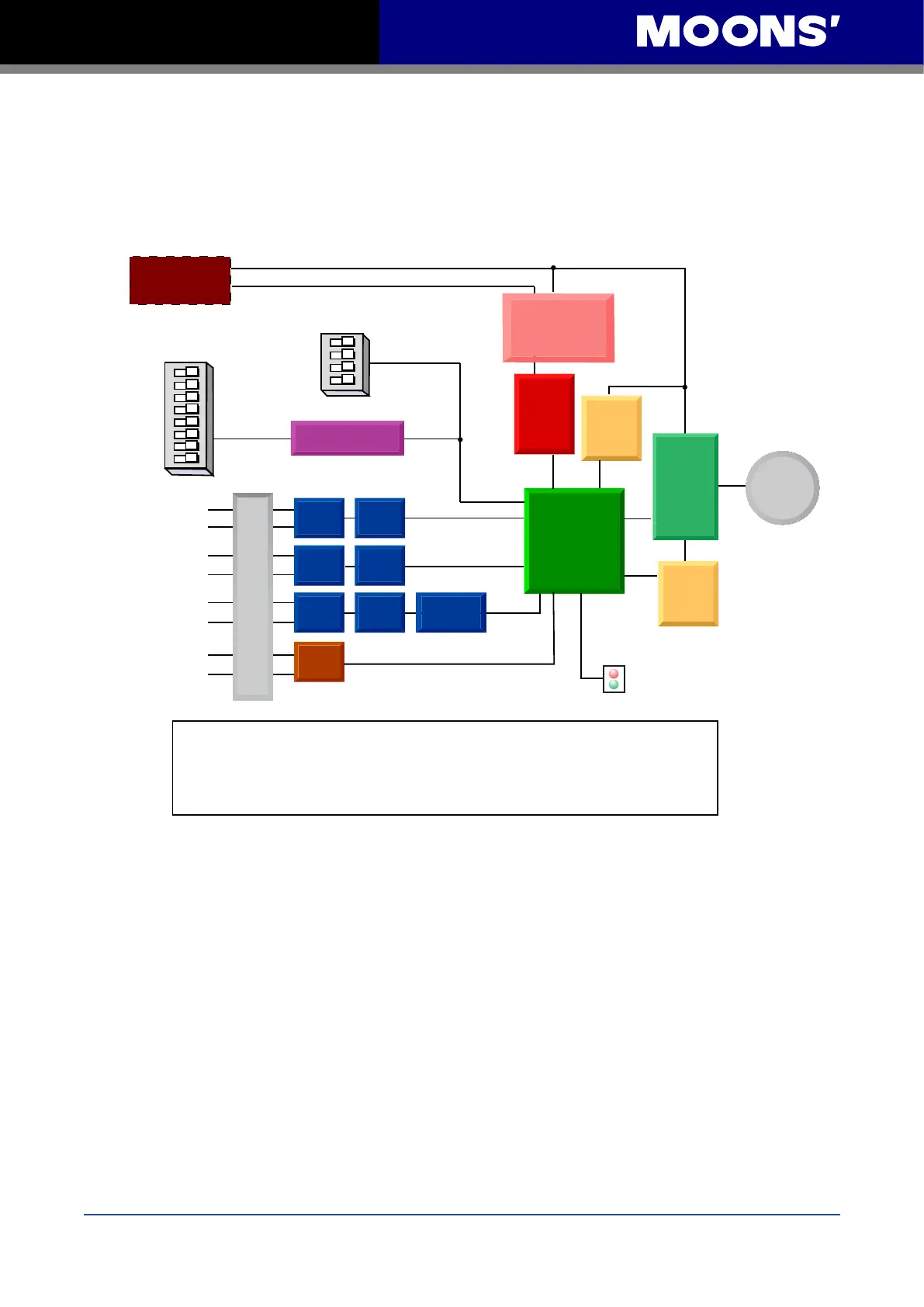

2 Block Diagram
STEP+
GND
STEP-
DIR+
DIR-
EN+
EN-
OUT+
OUT-
+24 to 48VDC
24-48 VDC
External
Power Supply
Block Diagram
SRX04
Optical
Iso
Optical
Iso
Optical
Iso
I/O 配置
STEP(5-24V)
: Step Input
: CW Pulse
DIR(5-24V)
: Dir Input
: CCW Pulse
EN(5-24V)
: Enable Input
: Reset Fault
OUT(30V, 100mA)
: Fault Output
motor
Voltage
Temp
Det.
DSP
Driver
Controller
Optical
Iso
Step Noise Filter
Control Mode
Smoothing Filter
Self Test
Step Res4
Step Res3
Step Res2
Step Res1
Idle Current
Current Level 3
Current Level 2
Current Level 1
Switch to SPI
5Volt DC
Power Supply
3.3VDC
Internal
Logic
Supply
MOSFET
PWM
Power
Amplifier
Over
Current
Det.
Digital
Filter
Digital
Filter
Digital
Filter
Software
Filter
I/O Connector
LED
