Mopar K6862677 - CAB BUMPER INSTALLATION; Mount Cab Bumpers; PROP ROD INSTALLATION AND SECURING; Install Prop Rod

10
www.mopar.com

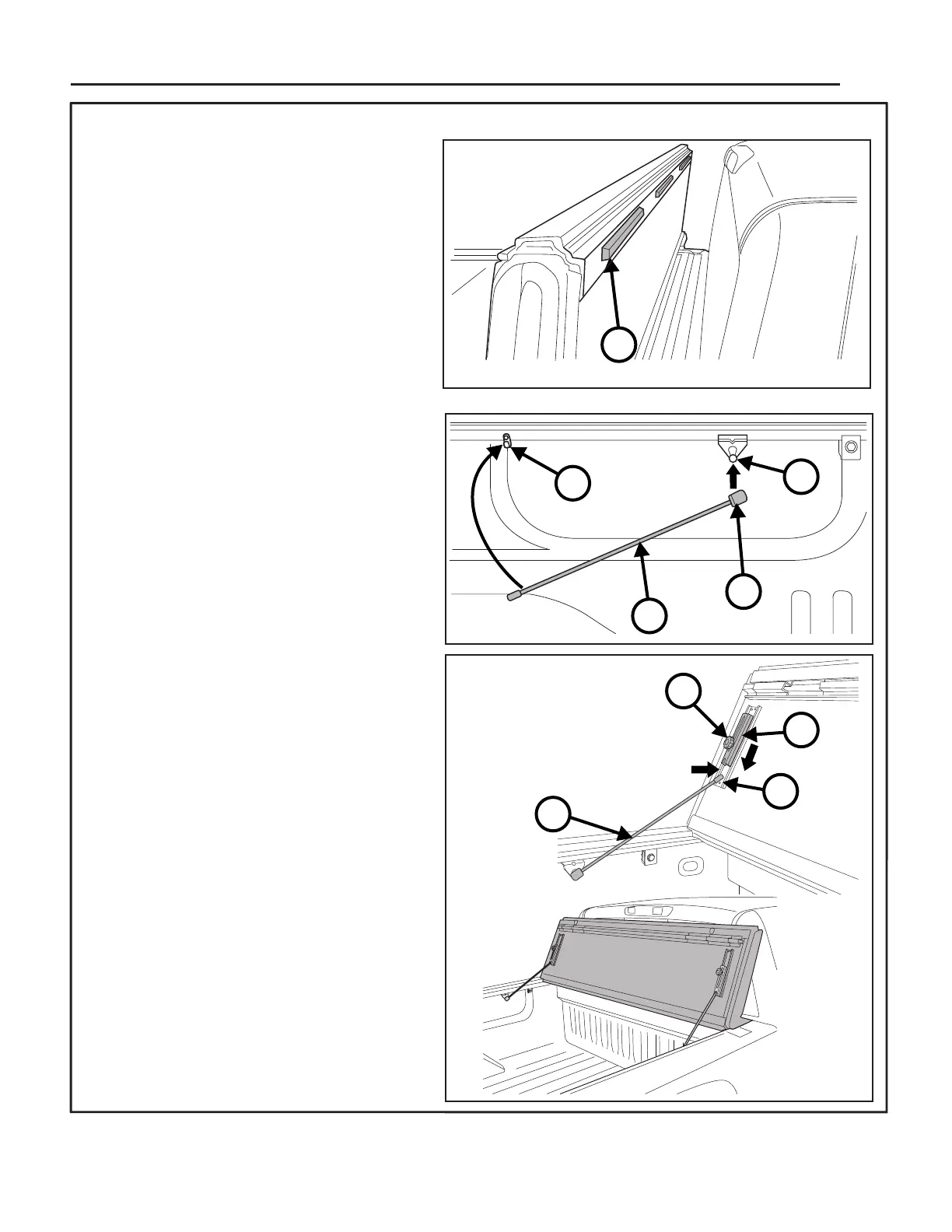

Remove the adhesive backing and mount
the three cab bumpers (1) along the top
edge of the cover where it meets the
truck cab.
Install the prop rod (1) by clipping the ball
socket end (2) over the ball mount (3)
on the rail. The other end rests in the
clip (4) mounted to the rail.
8. CAB BUMPER INSTALLATION- Standard and RamBox bed installation
9. PROP ROD INSTALLATION- Standard and RamBox bed installation
1
1
1
4
3
2
3
2
8.1
9.1
4
NOTE: PRIOR TO VEHICLE OPERATION
THE BED COVER MUST BE PROPERLY
SECURED.
For the flipped up position fold the cover
open and lift it forward until vertical or
past 90 degrees toward the truck cab.
Release the prop rod (1) and fold it until it
pushes firmly onto the vertical plate (2).
Then slide the lock plate (3) down to firmly
catch the prop rod. Tighten the knob (4)
to lock the plate in place.
Do this on both sides.
Check that the cover is firmly in position
with little or no movement once you have
correctly positioned the prop rods and
prop rod lock plates.
SECURE PROP ROD POSITIONING-
Standard and RamBox bed installation
Installer to fold this document and place
it in the vehicle’s glove box.
10. INSTALLATION COMPLETION
10.1
K6862677
June 20, 2019
